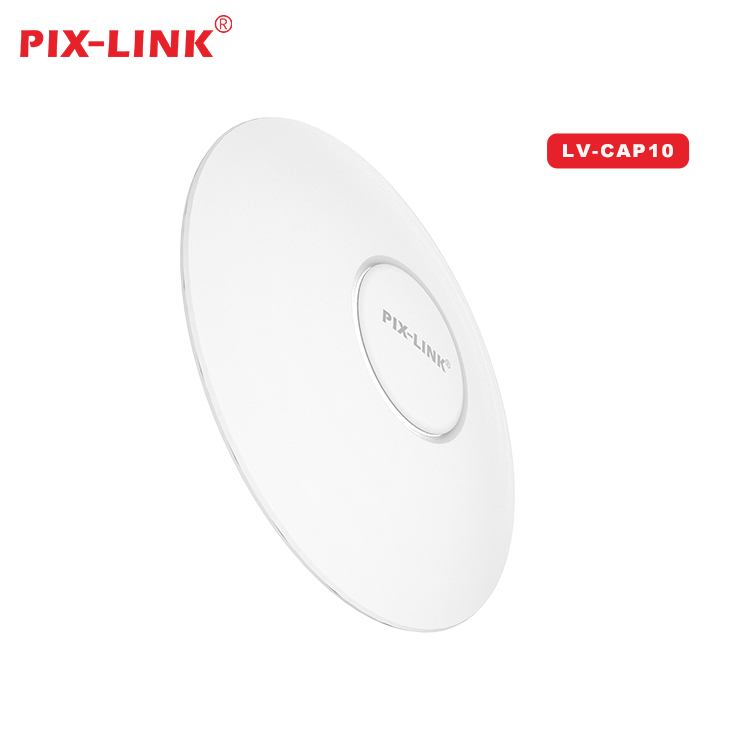

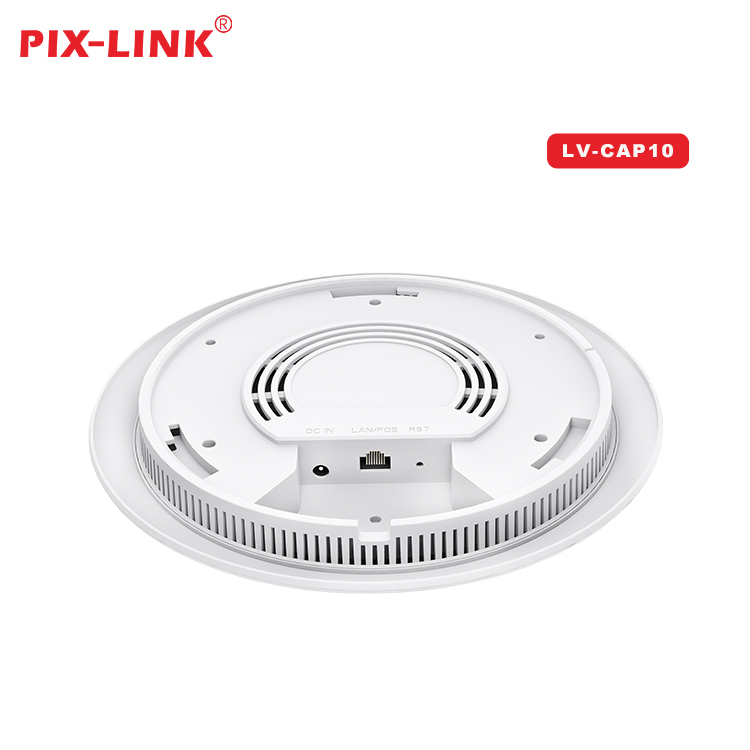

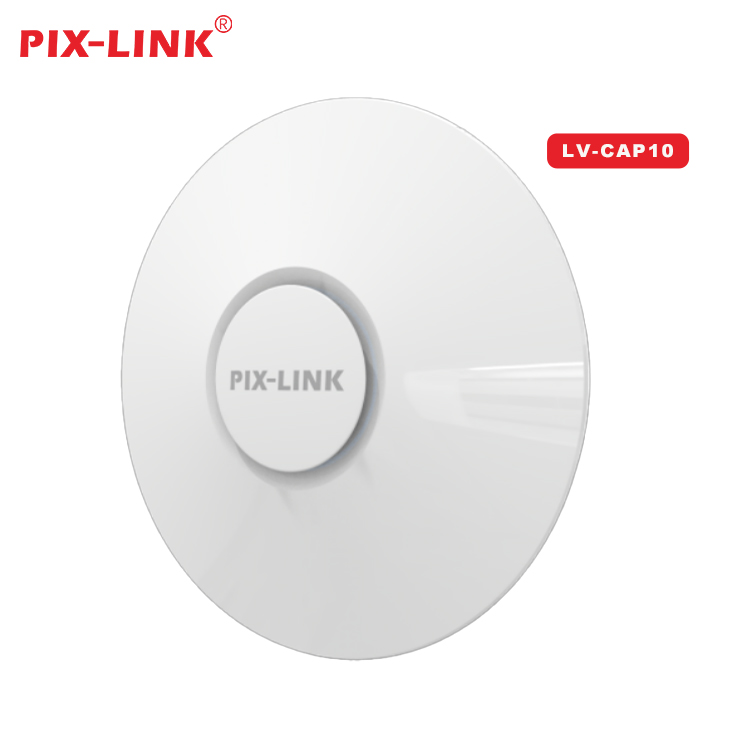

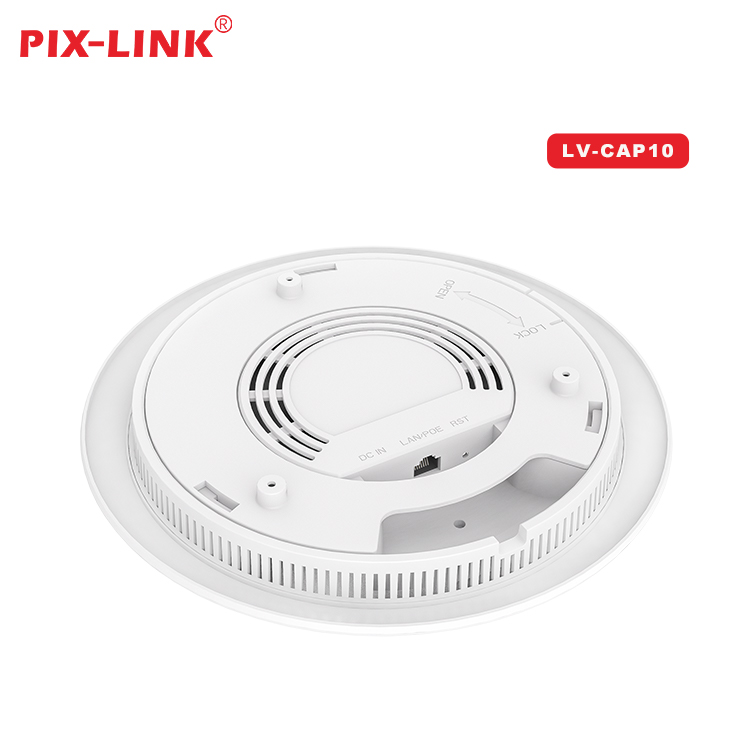

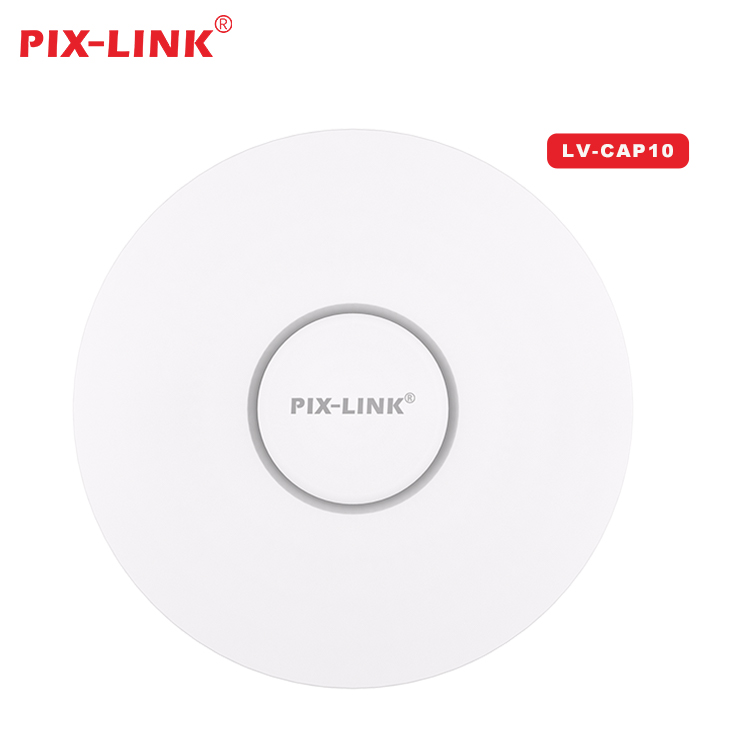

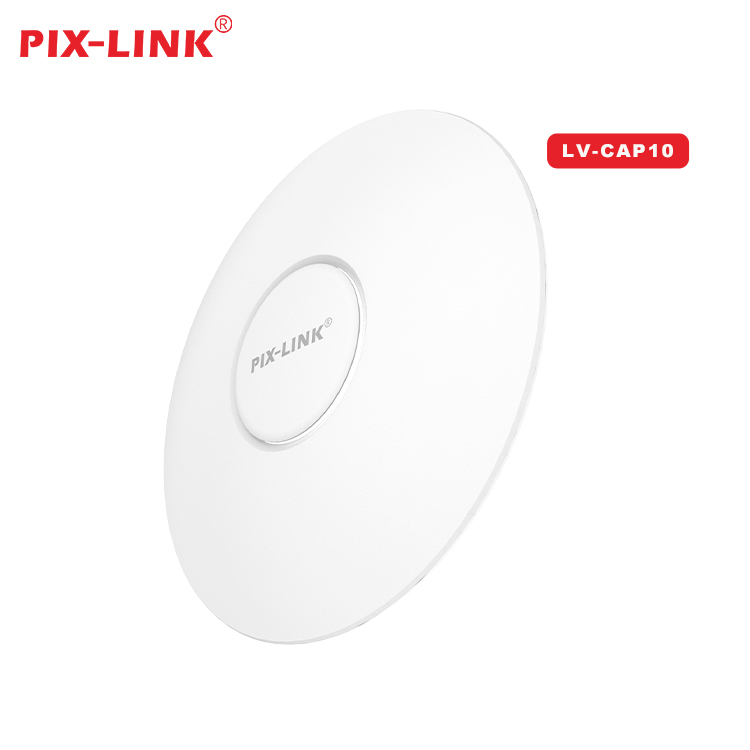

PIX-LINK Factory New CAP10 3000Mbps Dual-band Gigabit Wireless Portable Ceiling Access Point AX3000 Wi-Fi 6 Ceiling AP
Overview
Specifications
| HARDWARE | |
| Processor | MT7981B+MT7976C_IPAILNA |
| DDR | 256MByte |
| Flash | 16MByte |
| Ethernet Ports | 1xGigabit WAN/LAN Ports |
| Buttons | Reset Button |
| Power | PoE 802.3af or DC2.0 12V/1.5A |
| Antennas | 2×2.4G Antennas、3x5G Antennas |
| WIRELESS | |
| Standards | IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz |
| frequency | 2.4GHz5GHz |
| Signal Rate | 2G:600Mbbps5G:2400Mbps |
| WiFi Encryption | WPA-PSK/WPA2-PSK/WPA3-PSK |
| WiFi Transmission Power | <22 dBm (2.4 GHz) <20 dBm (5 GHz) |
| SOFTWARE | |
| Working Modes | FAT/FIT AP Mode |
| OTHERS | |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
