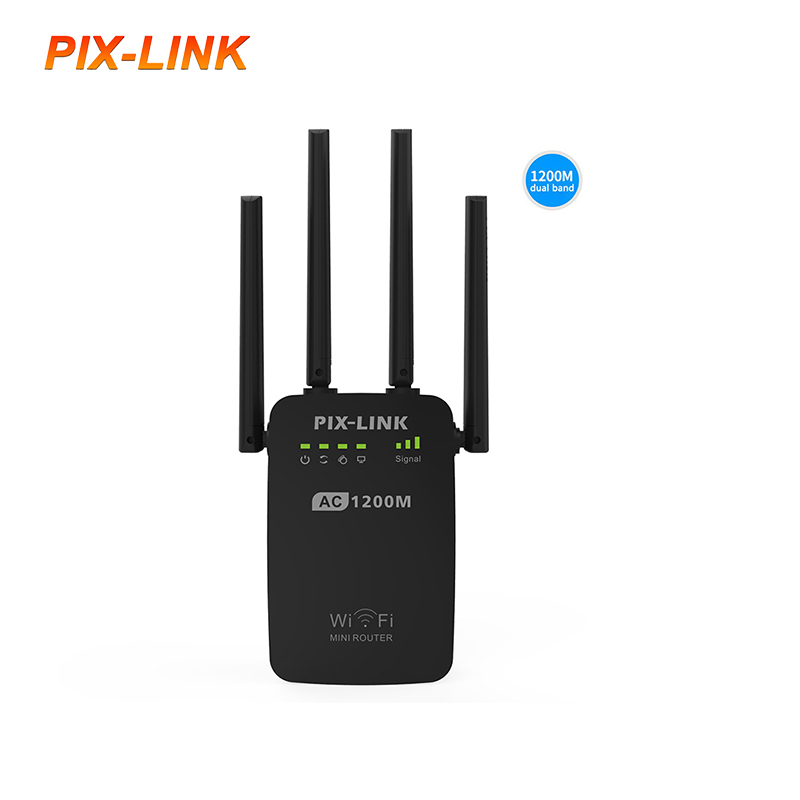

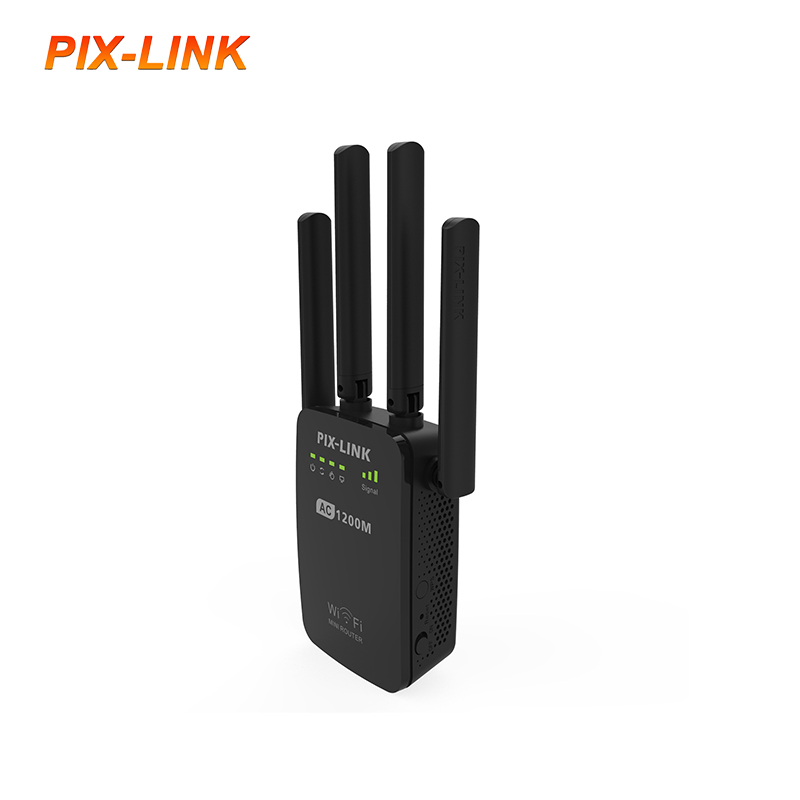

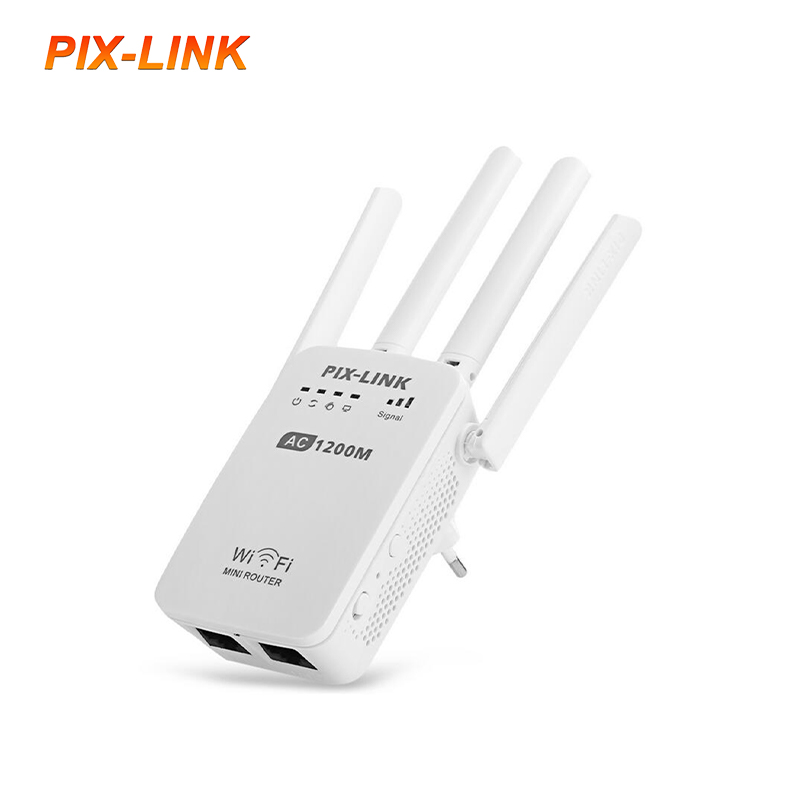

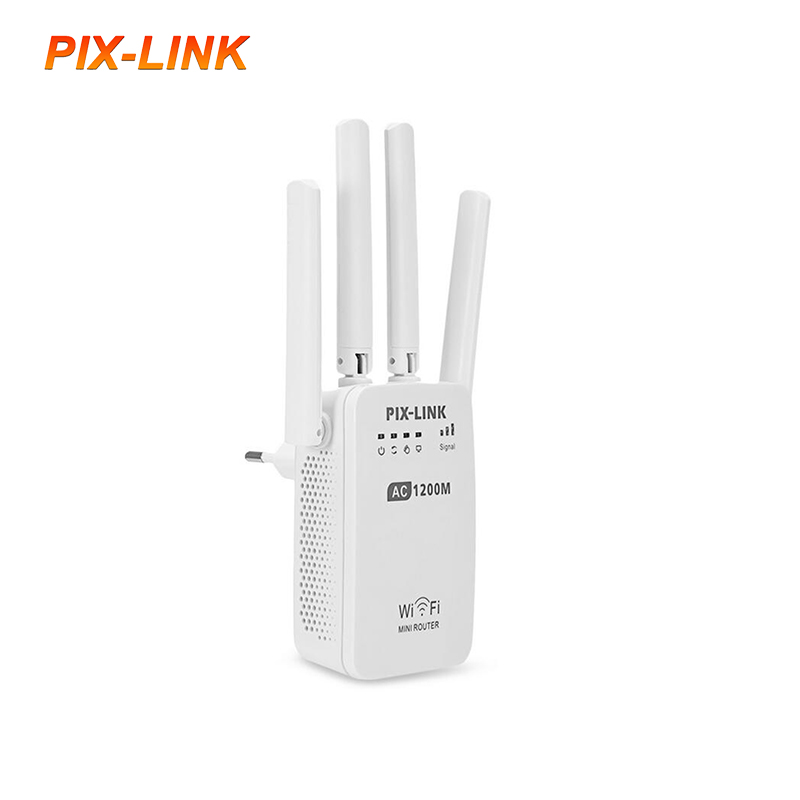

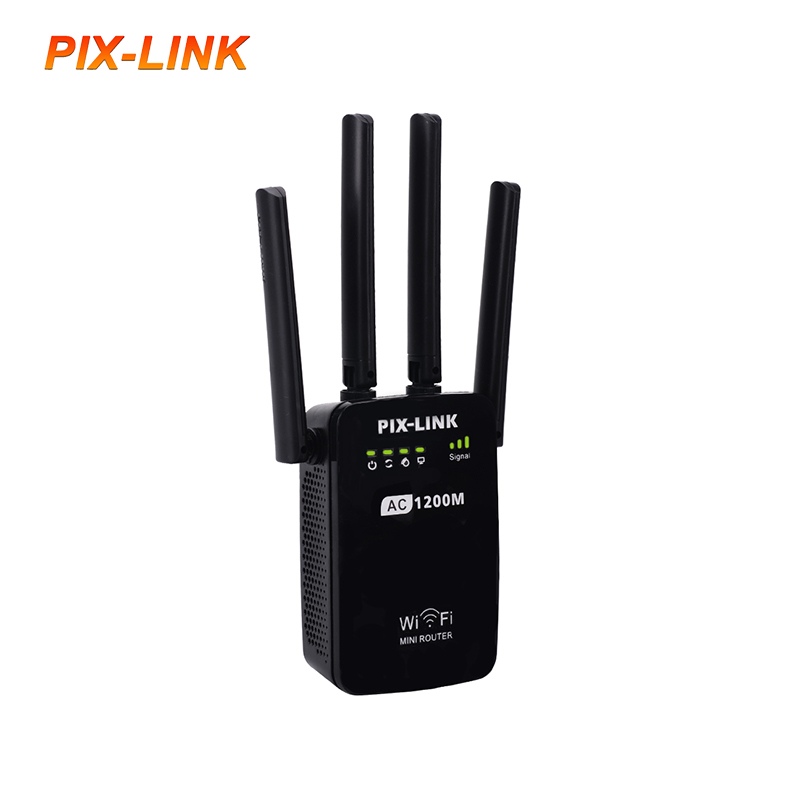

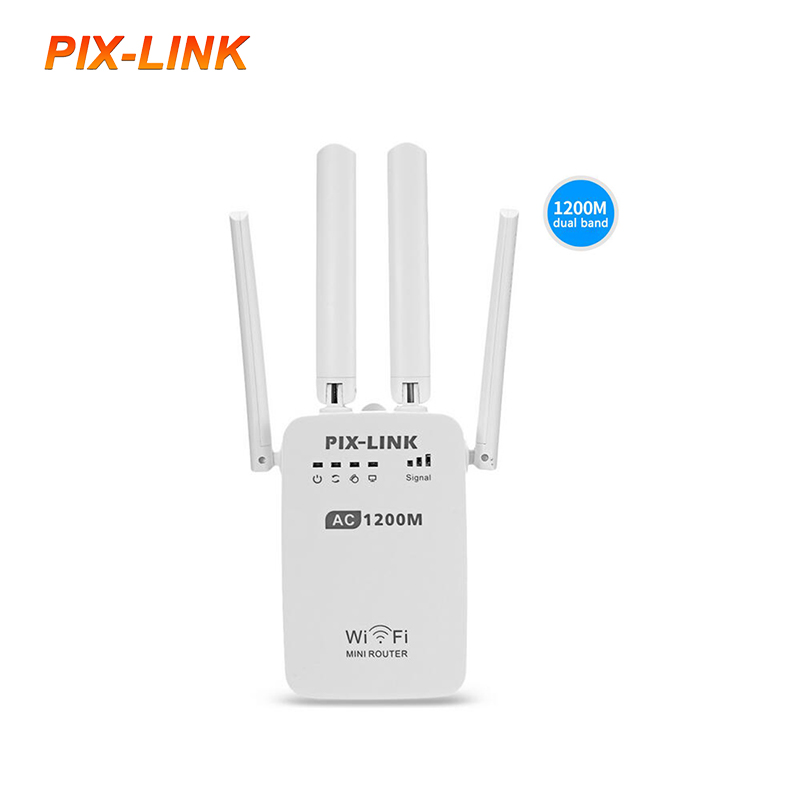

PIX-LINK WiFi Signal Strong Penetrability 1200M Dual Band Wireless Signal Booster
- AC05 wifi repeater can significantly improve the stability of WiFi signal and reduce network interruption caused by weak or unstable signal.

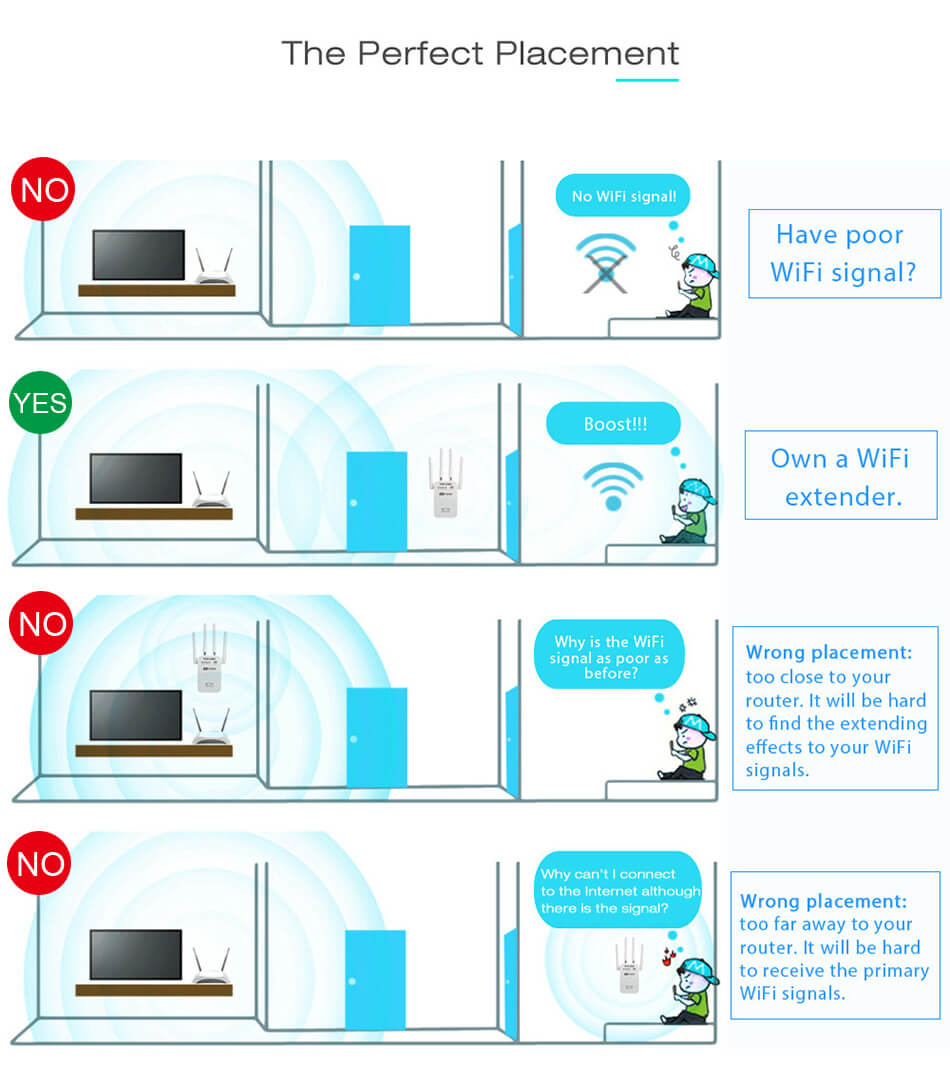

- Through the amplification and retransmission function of the repeater, the WiFi signal can cover the area where the original signal is weak more stably.

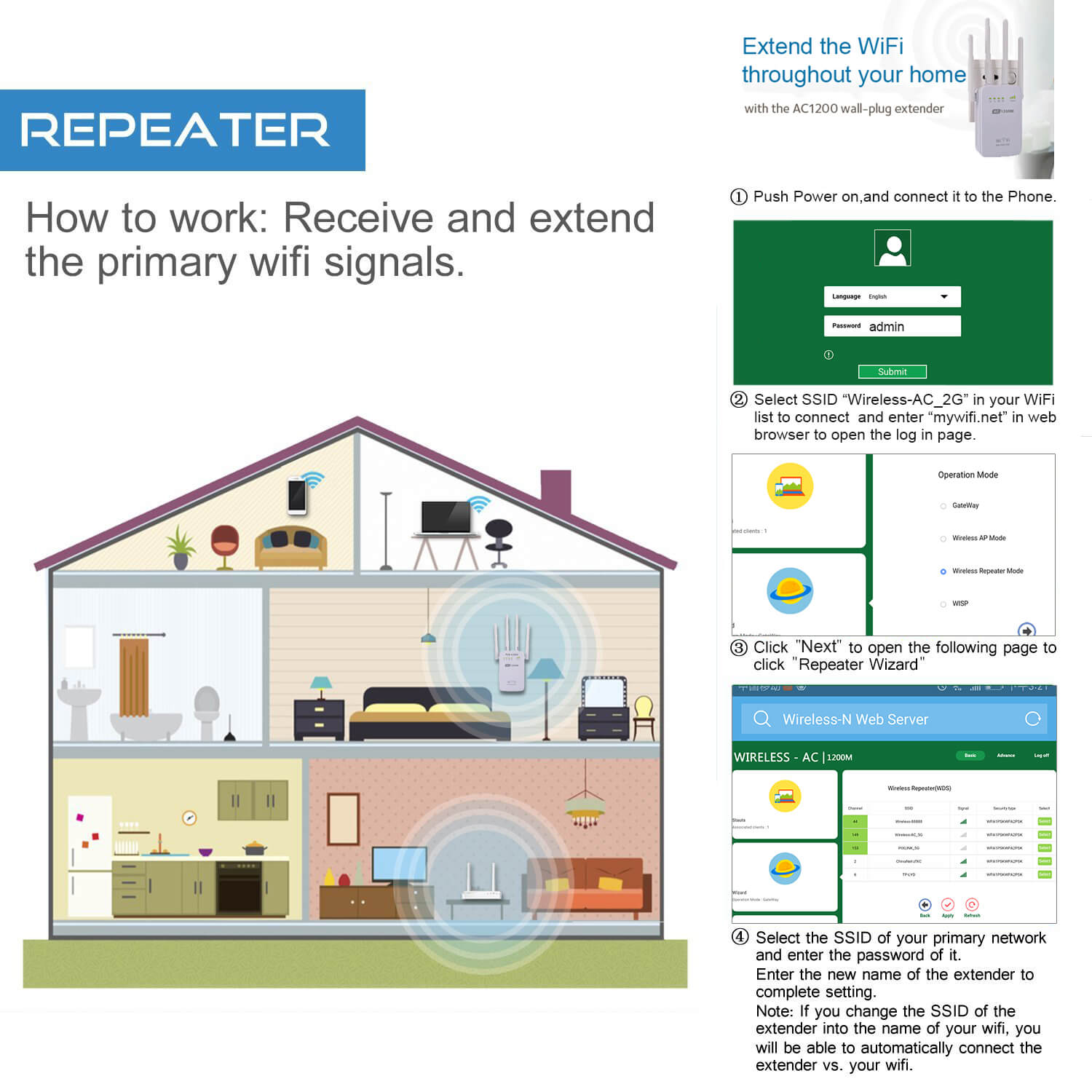

- The setup is simple. Users can connect to the wireless network of the repeater through a computer or smart phone and log in to its management interface for configuration.
- For large-scale residential, office or multi-storey buildings, it can help to achieve comprehensive network coverage.
Overview
Specifications
HARDWARE FEATURES

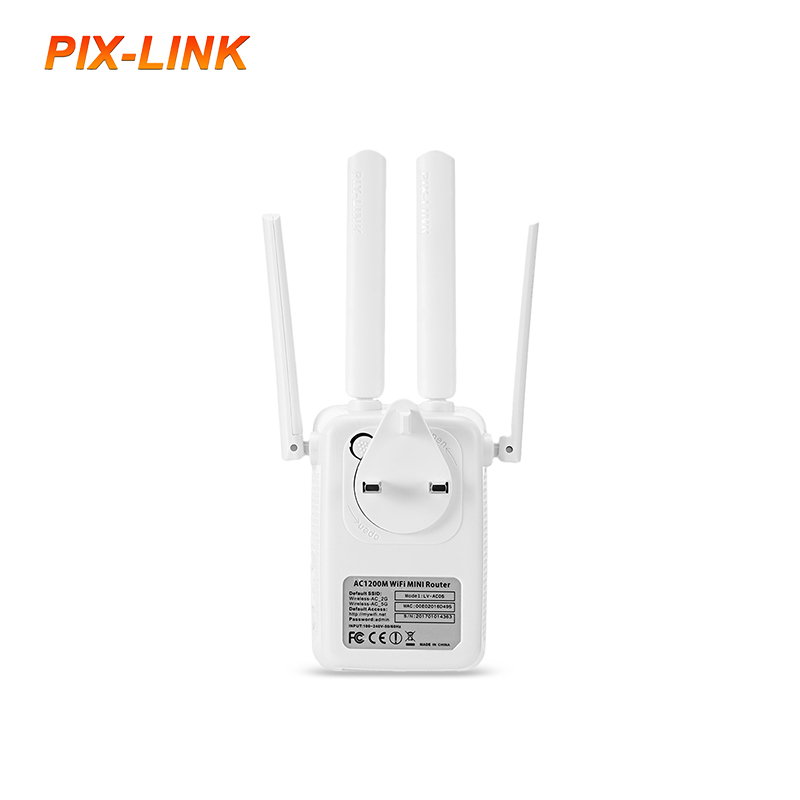

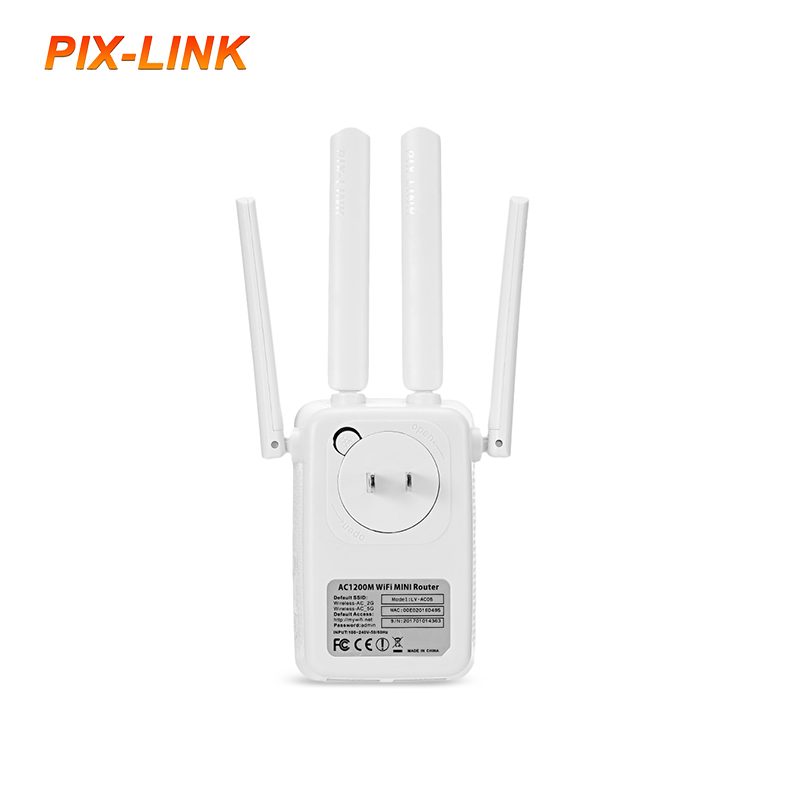

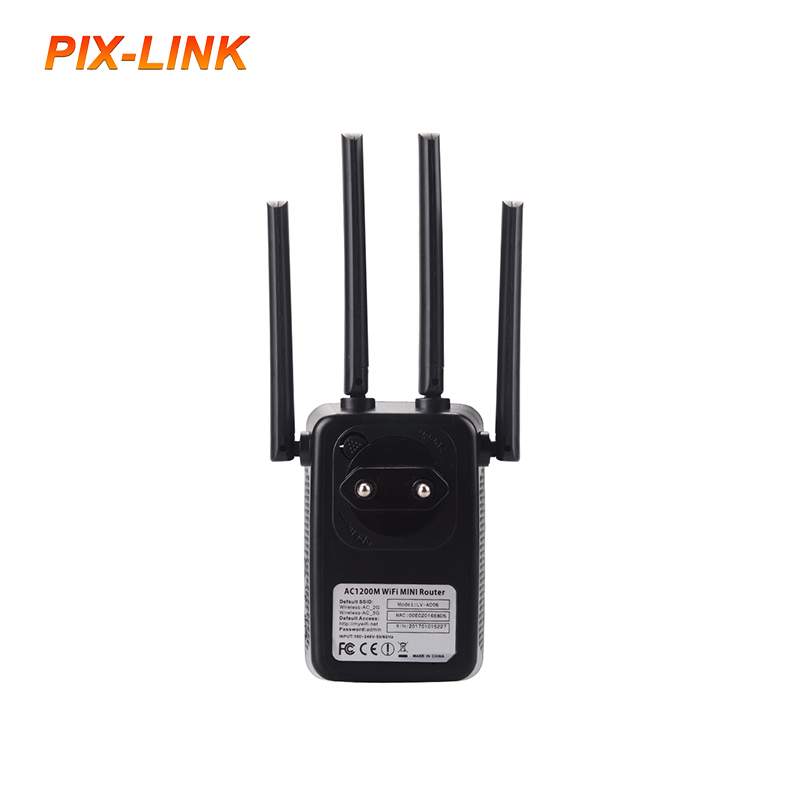

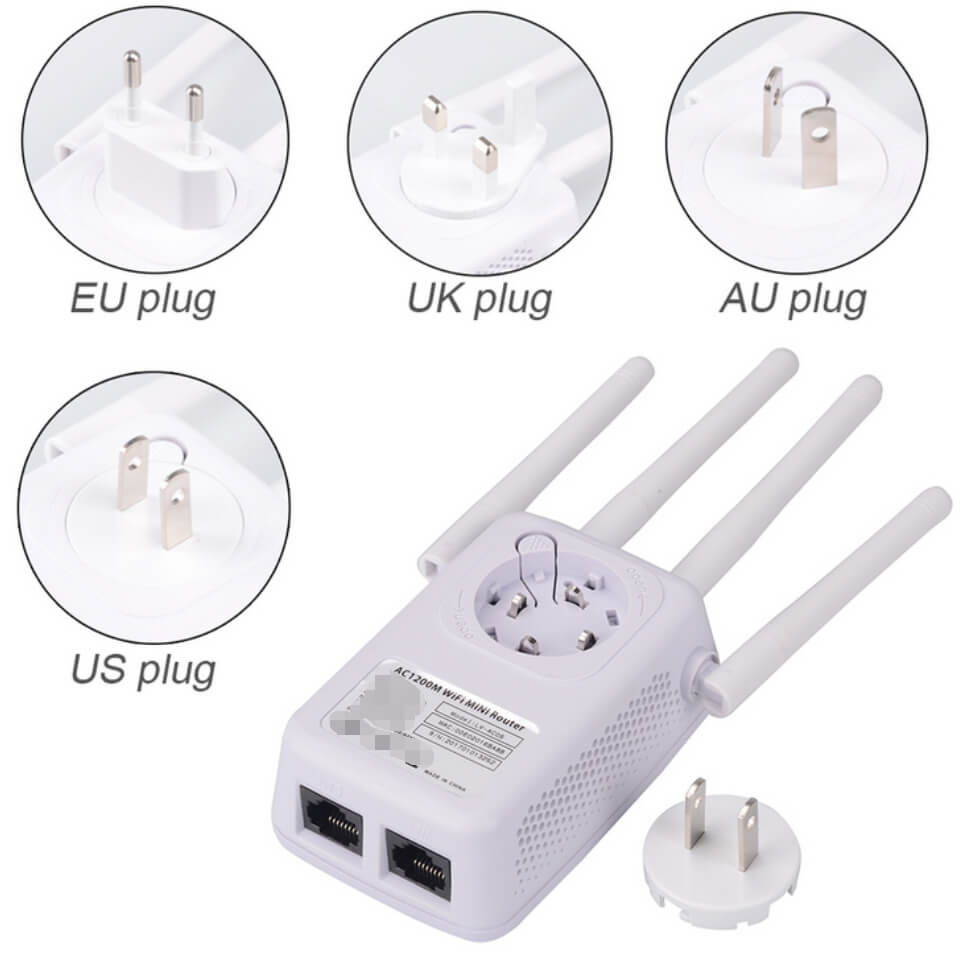

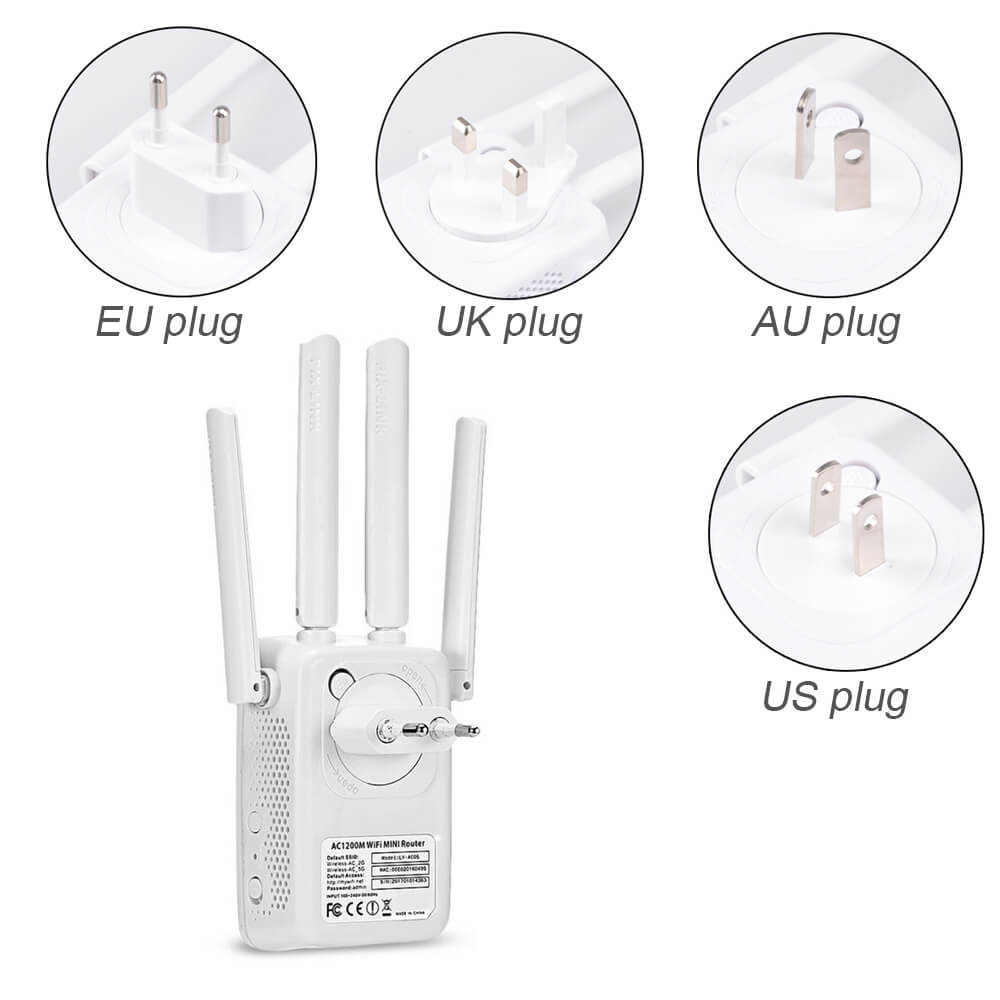

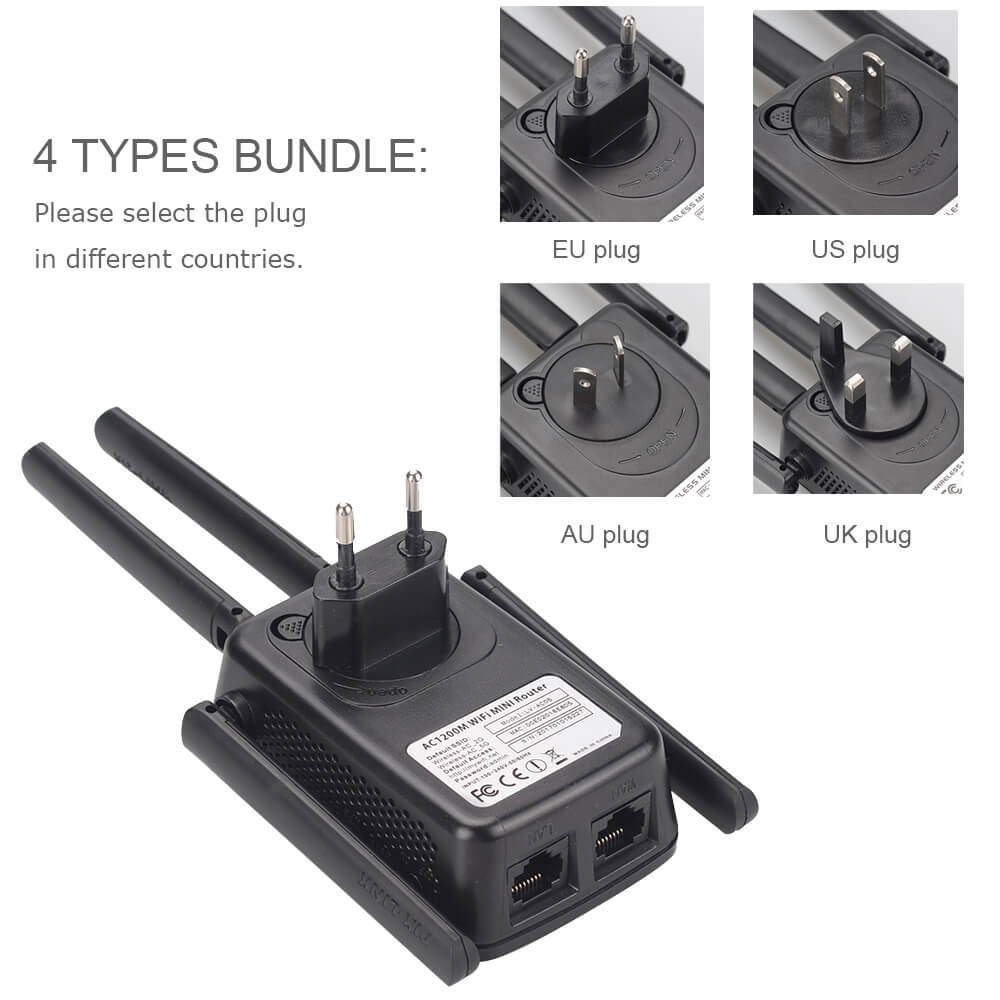

| Plug Type | EU, UK, US |
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |

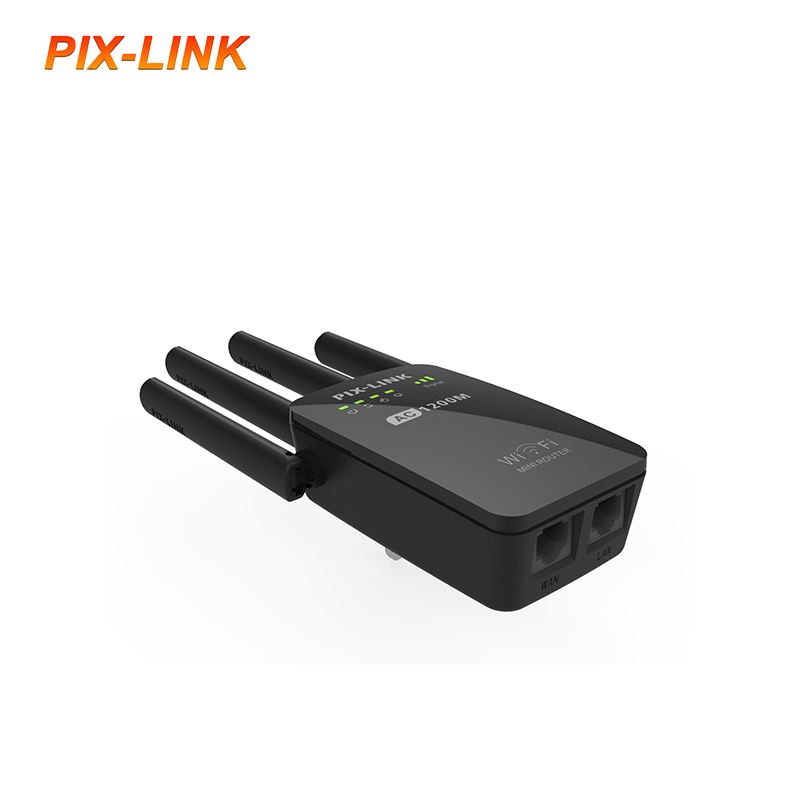

| Interface | 1 * 10/100Mbps LAN Port 1 * 10/100Mbps LAN/WAN Port |

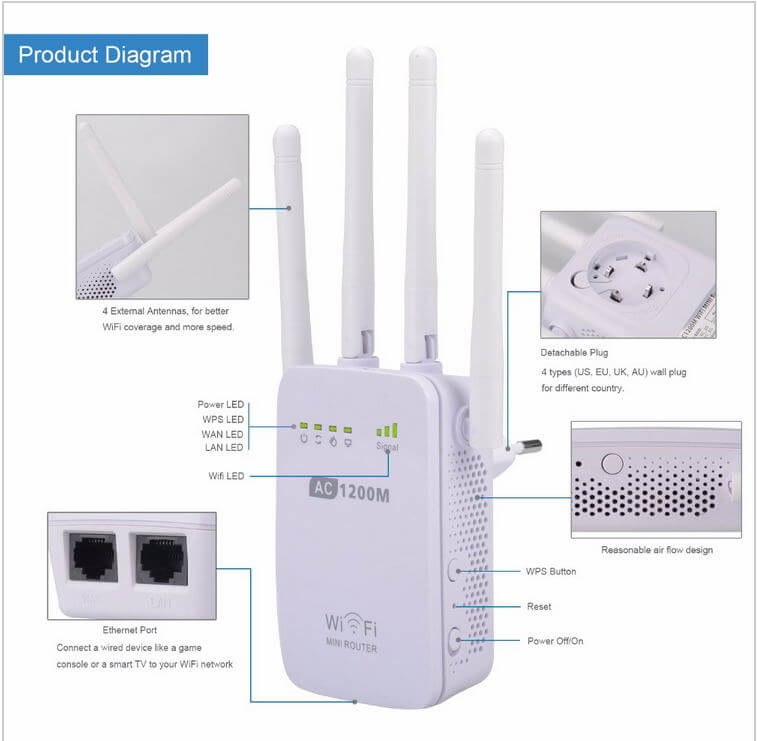

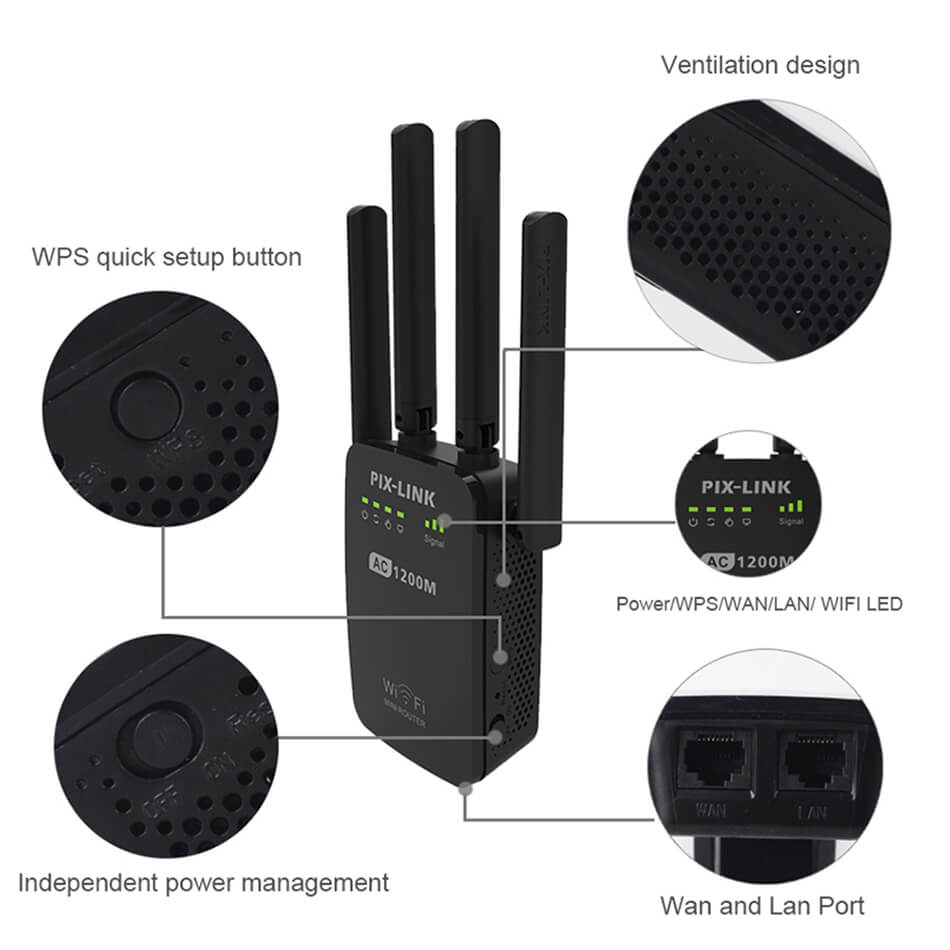

| Button | WPS Button, Reset Button |
| Antenna | 4 * external |

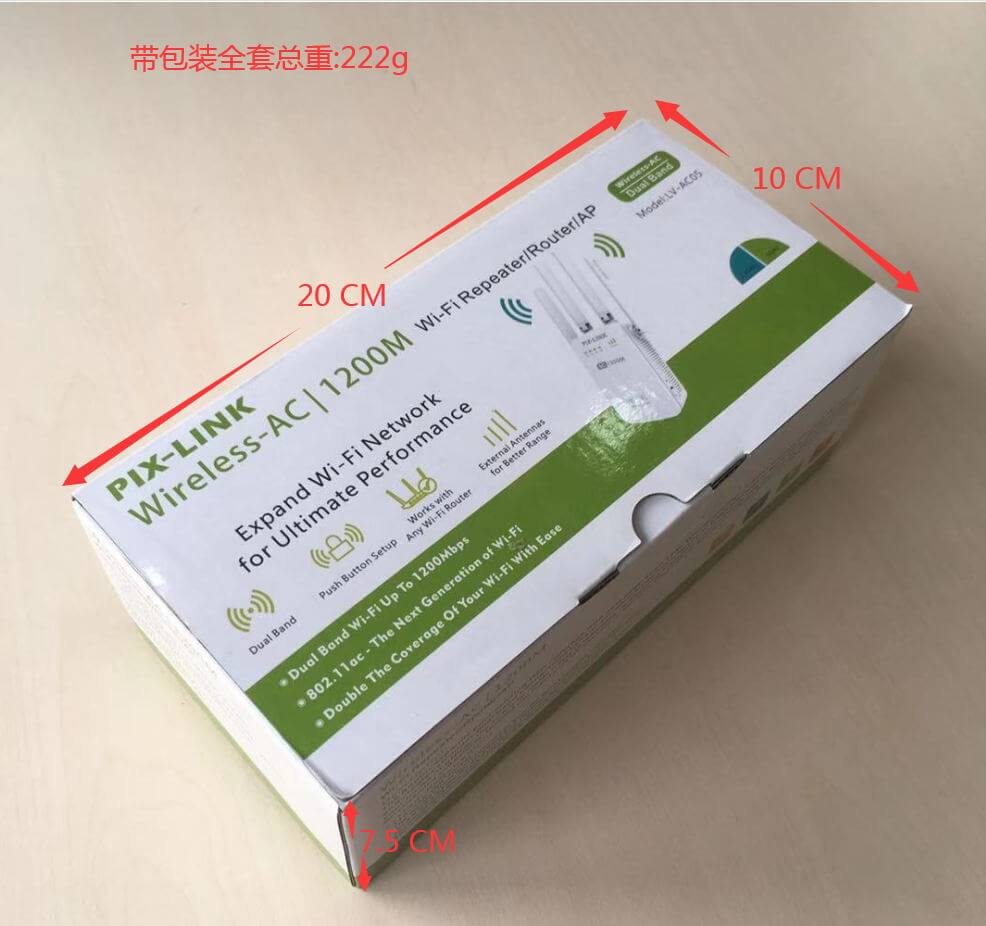

| Dimensions ( W x D x H ) | 95.0 x61.5 x 35.2mm |
WIRELESS FEATURES
| Frequency | 2.4GHz & 5GHz(11ac) |
| Signal Rate | 5GHz:Up to 867Mbps 2.4GHz:Up to 300Mpbs |
| Reception Sensitivity | 5GHz： 11a 6Mbps:-93dBm@10% PER 11a 54Mbps: -76dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -64dBm@10% PER 11ac HT80 mcs9: -61dBm@10% PER 2.4GHz 11g 54M: -78dBm@10% PER 11n HT20 mcs7: -75dBm@10% PER 11n HT40 mcs7: -73dBm@10% PER |
| Transmit Power | <20dBm(2.4GHz) <23dBm(5GHz) |
| Wireless Modes | Repeater/AP/Router |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
OTHERS

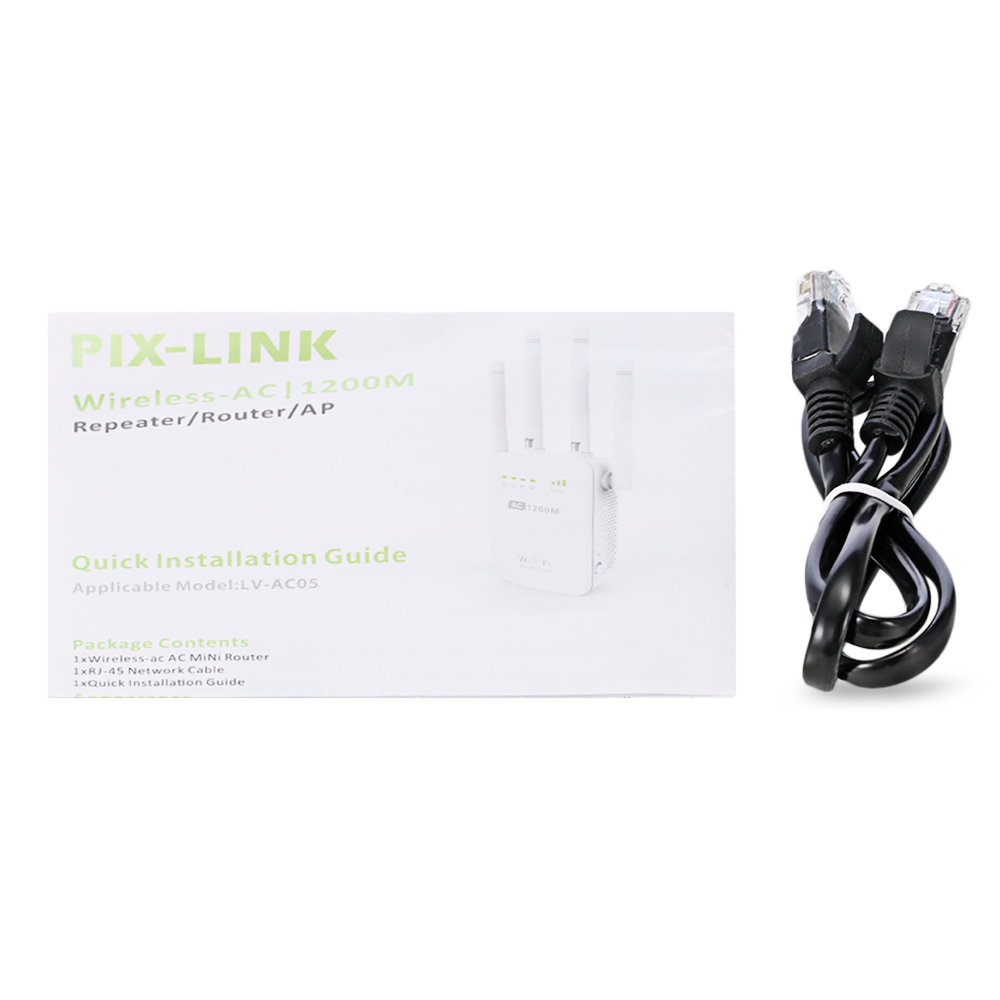

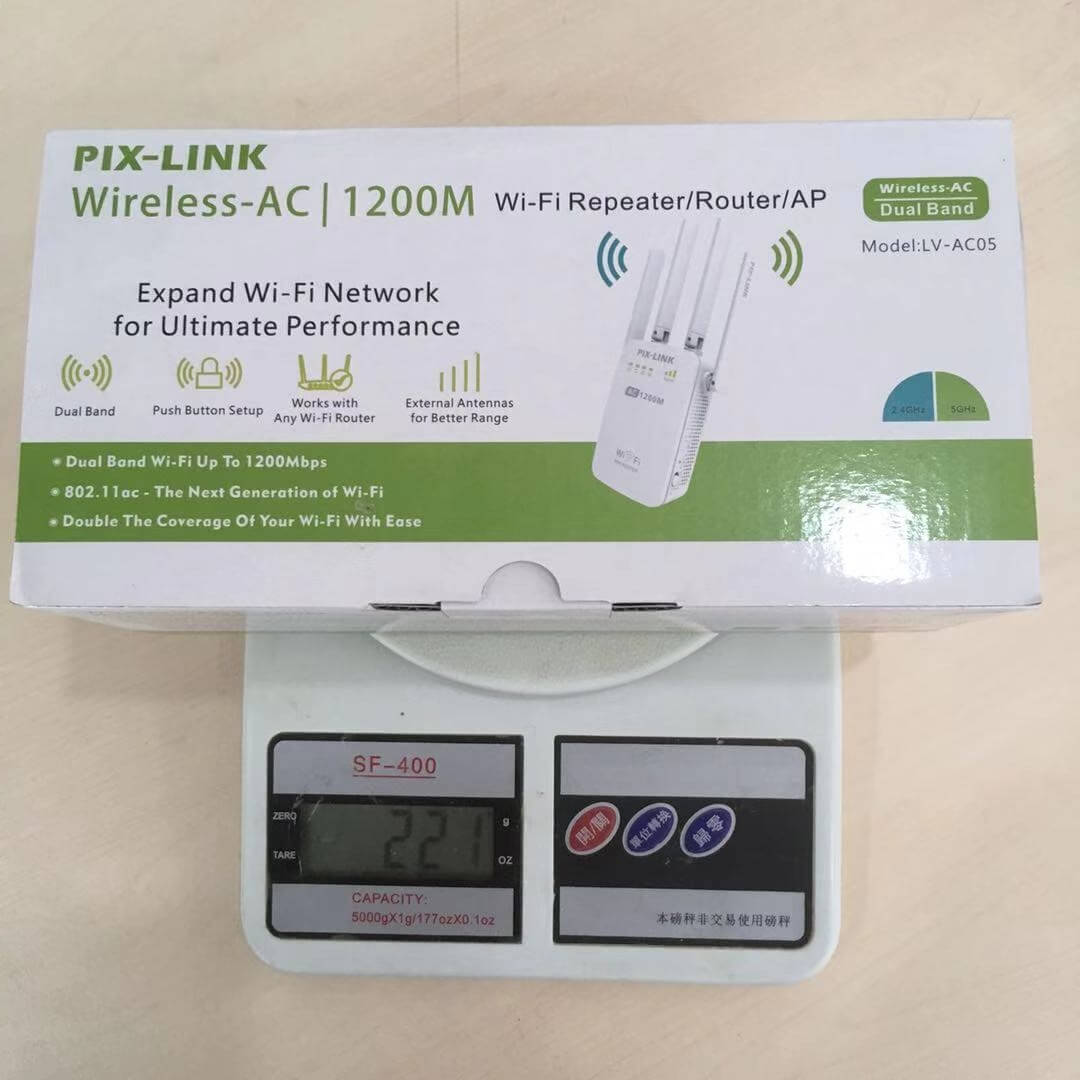

| Package Contents | 1xWireless-AC Repeater/AP/Router 1xRJ-45 Ethernet Cable 1xQuick Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
