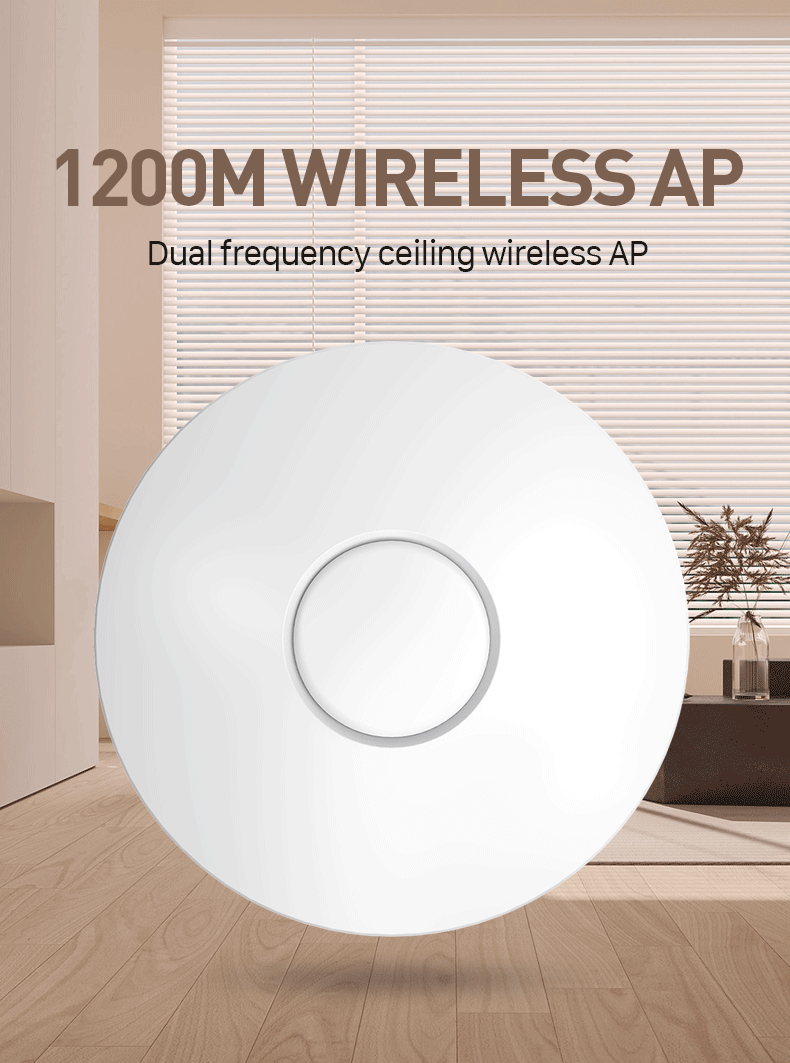

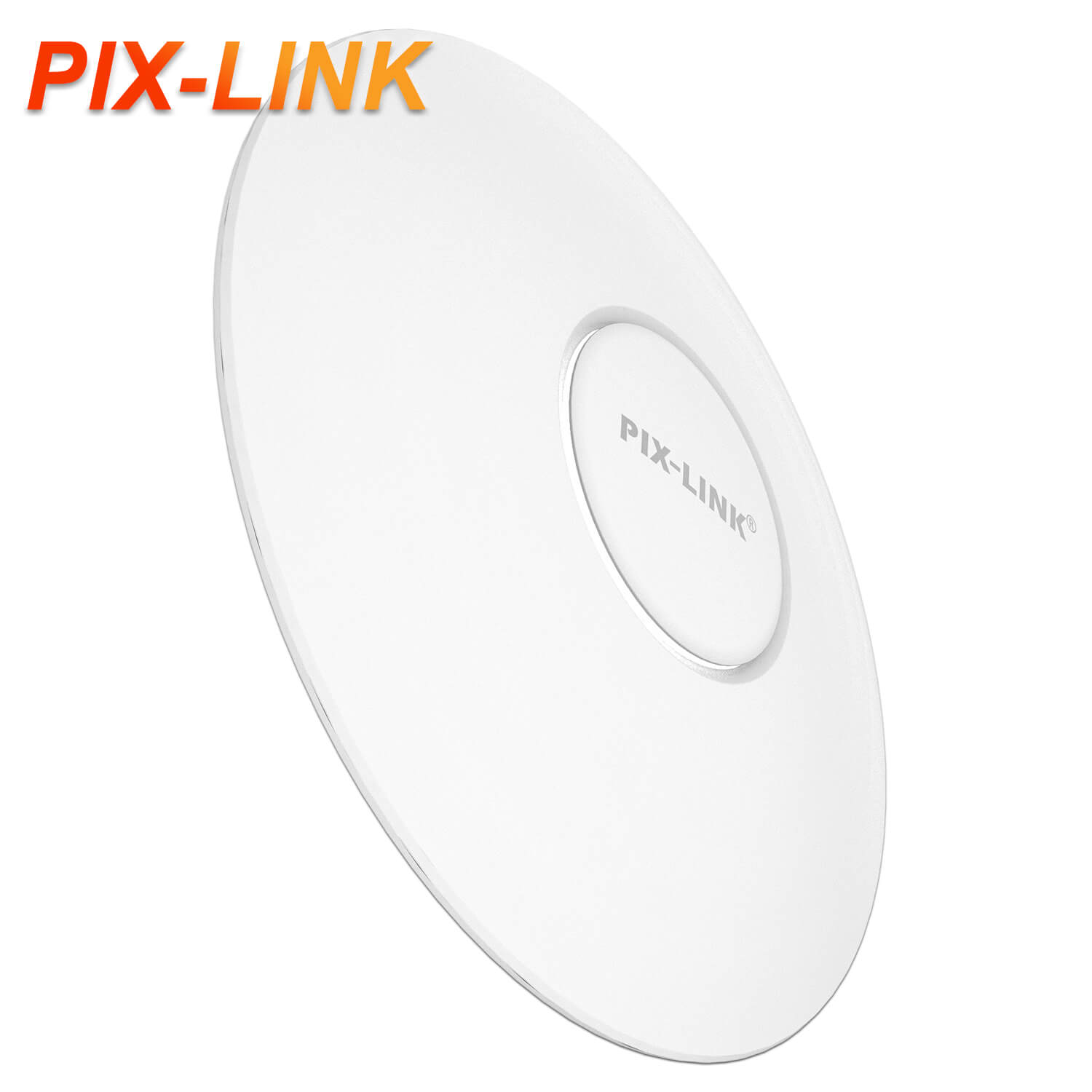

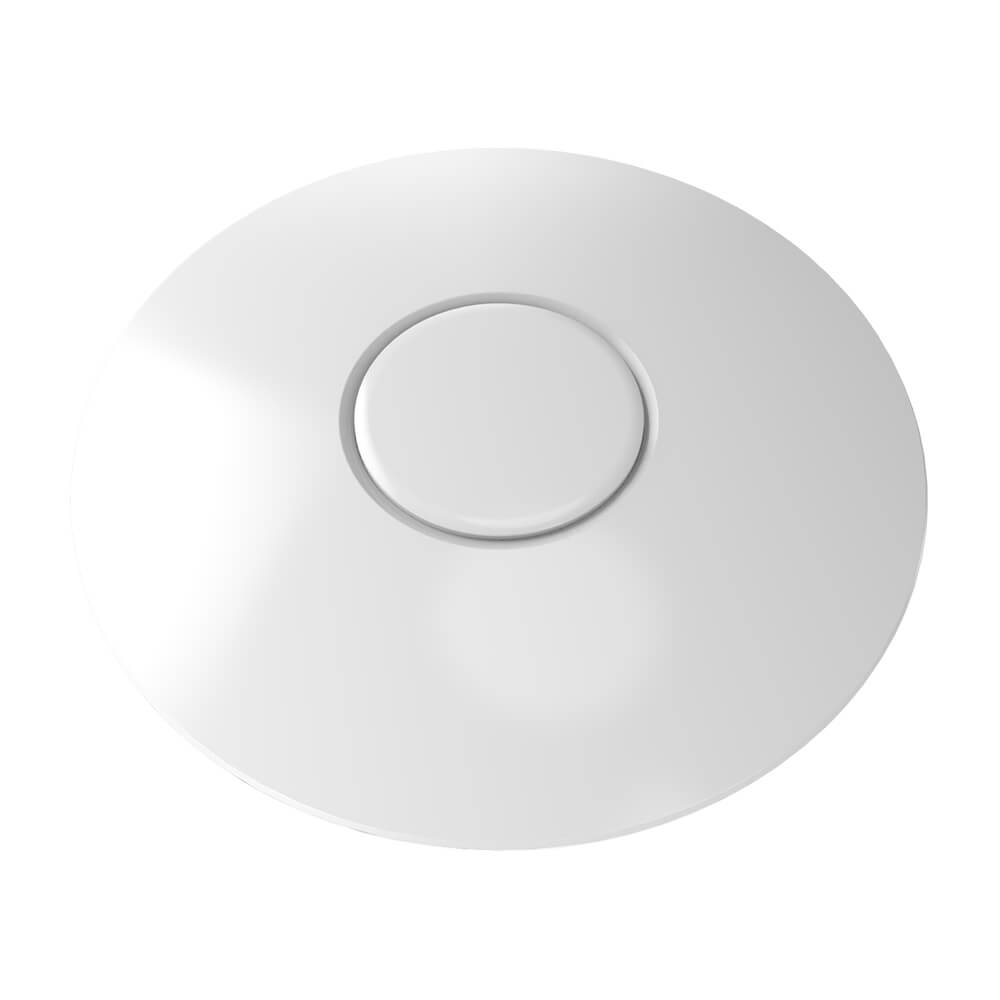

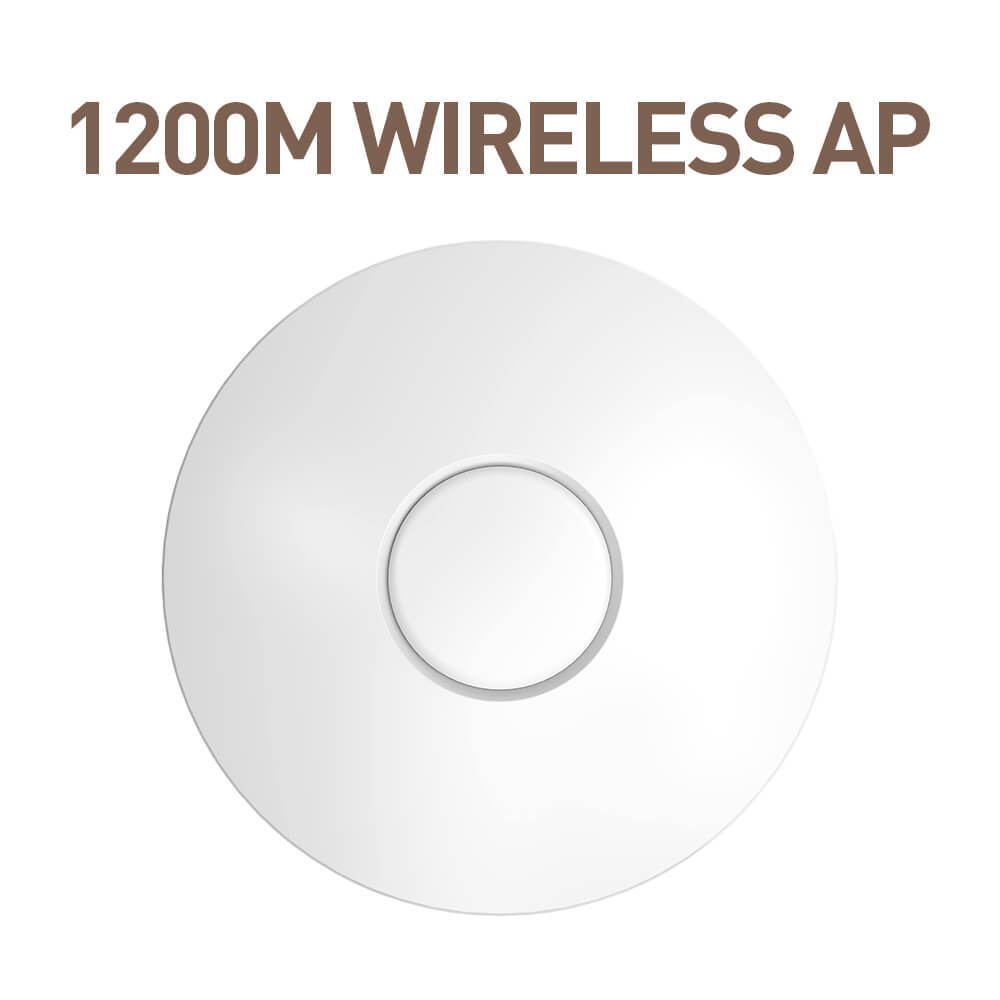

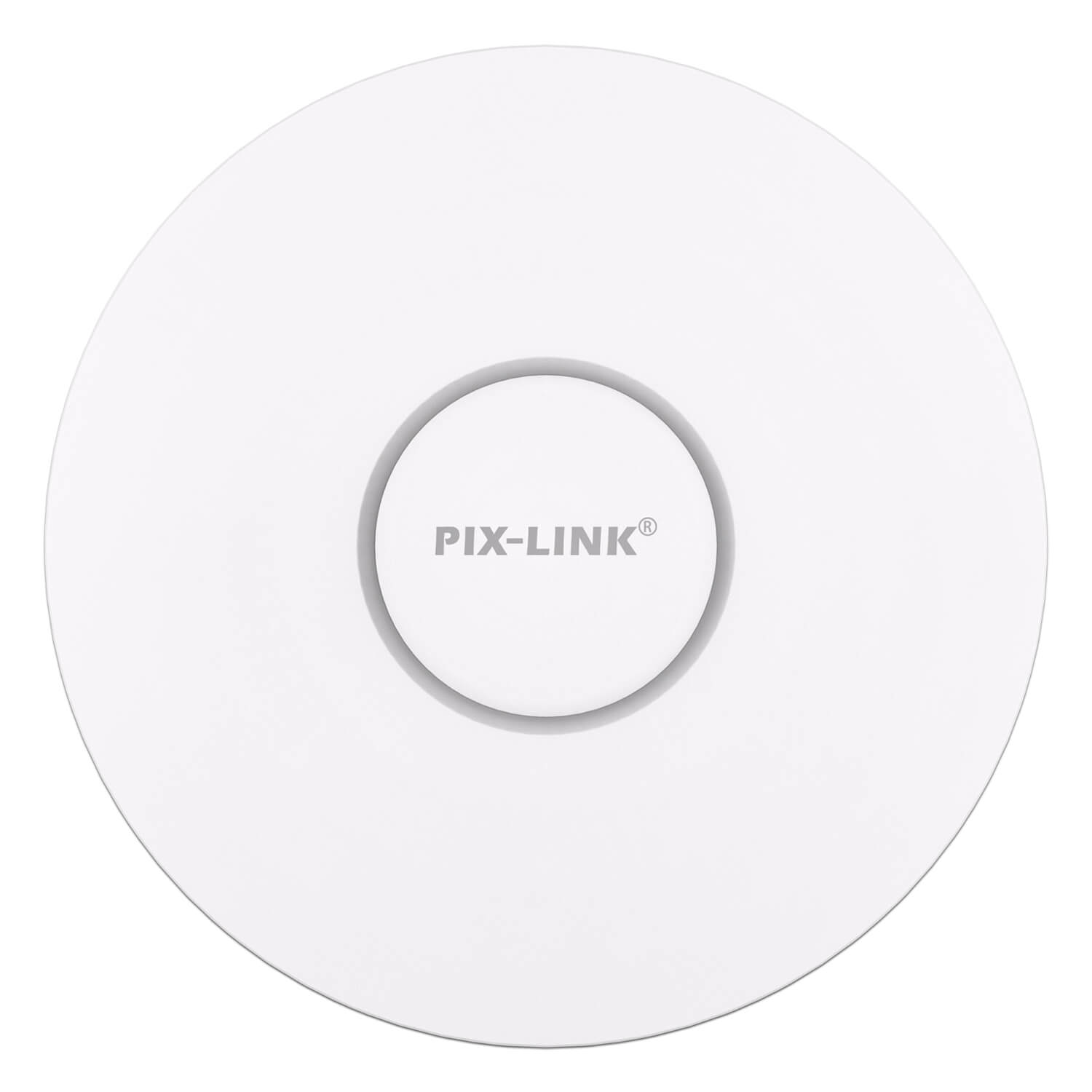

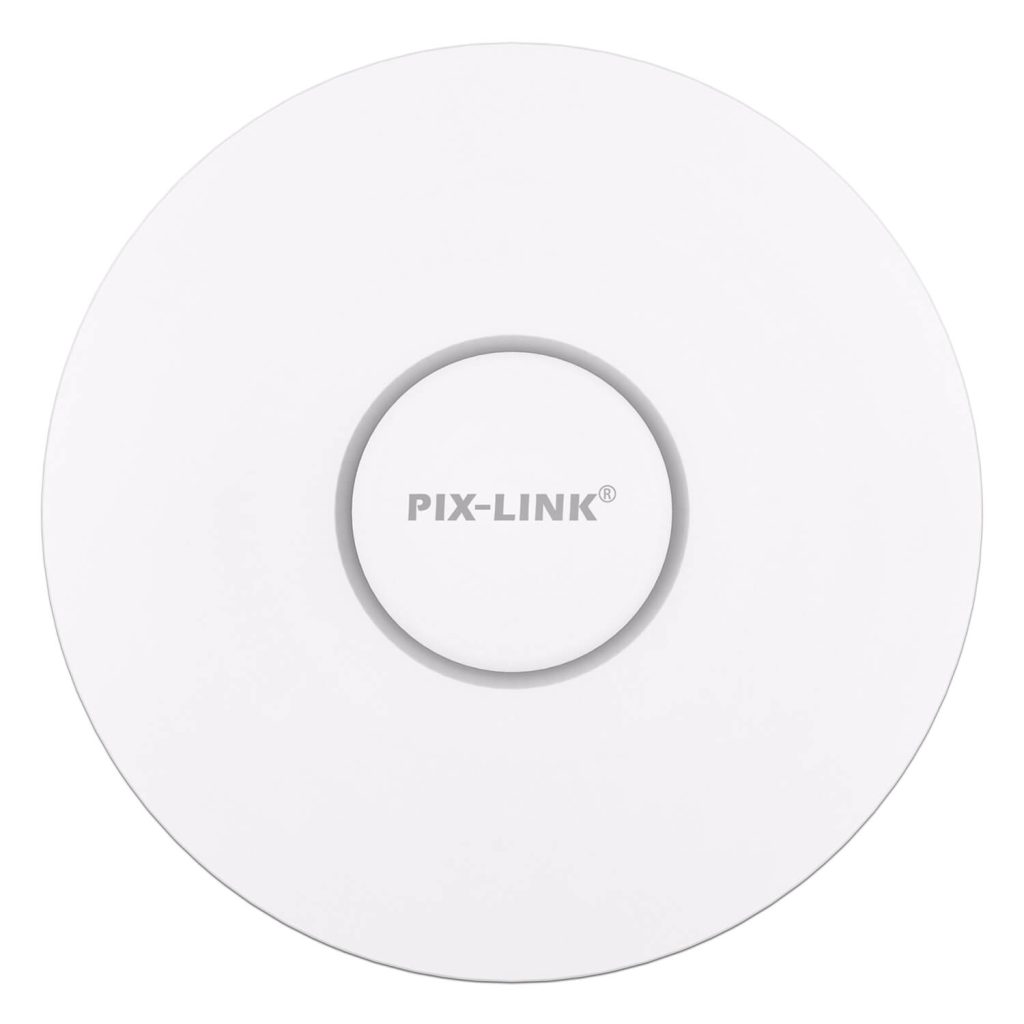

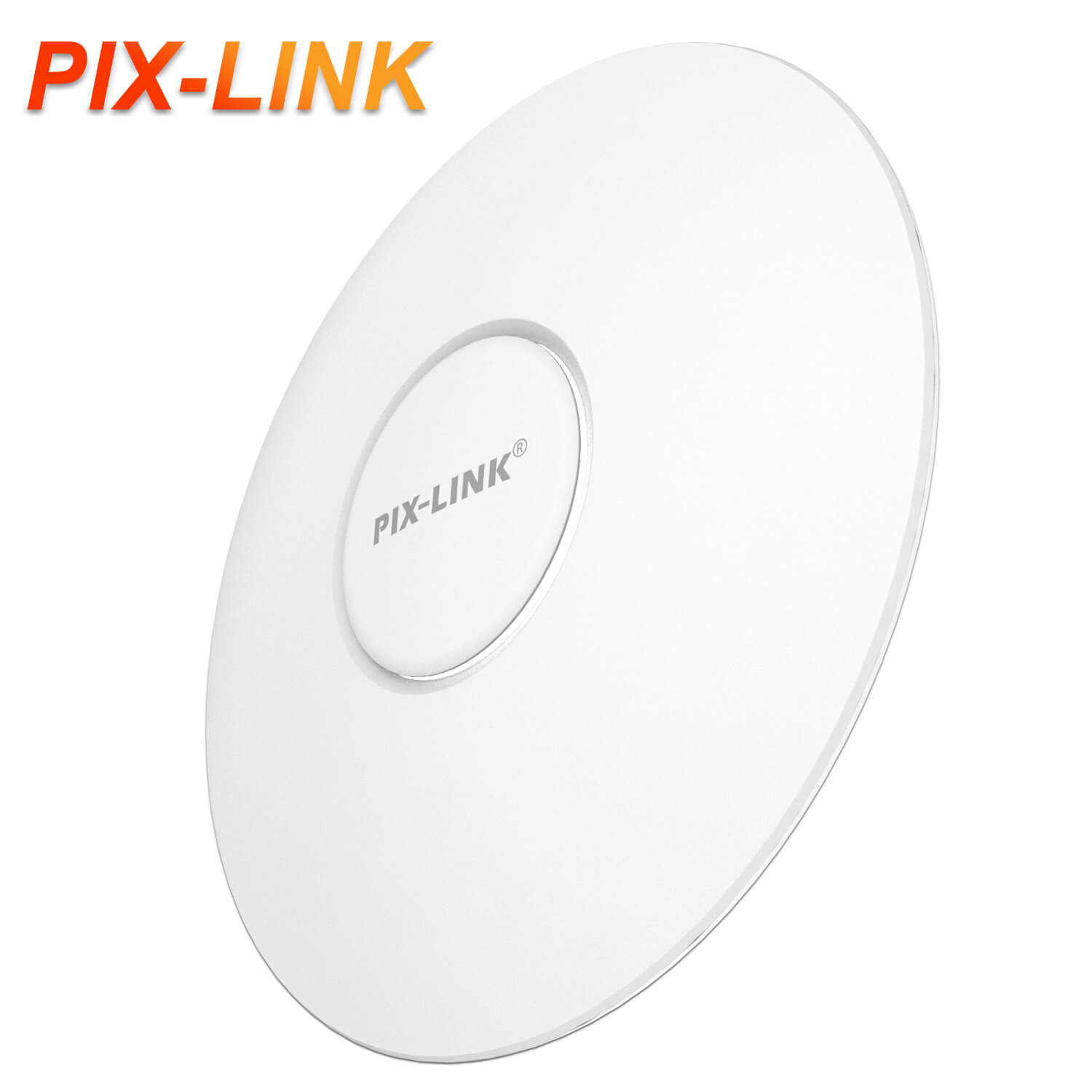

LV-CAP02

Specifications

hardware

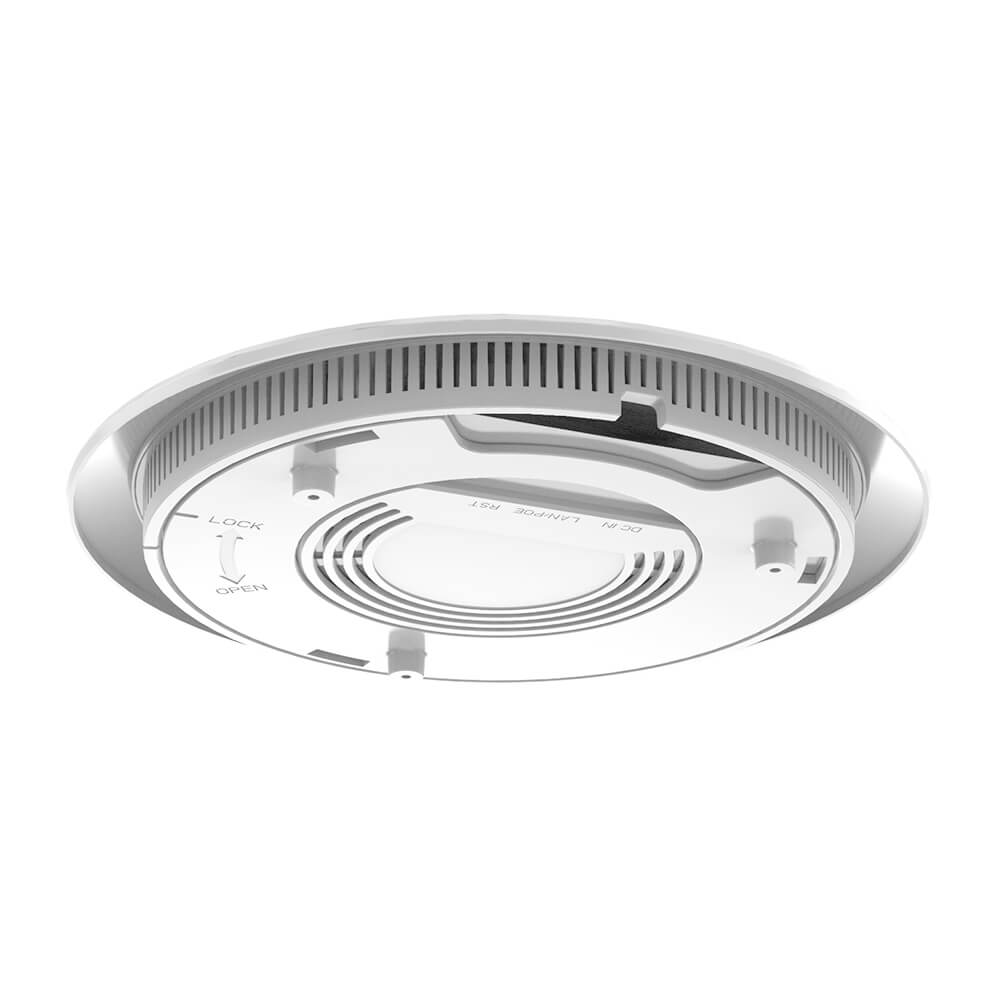

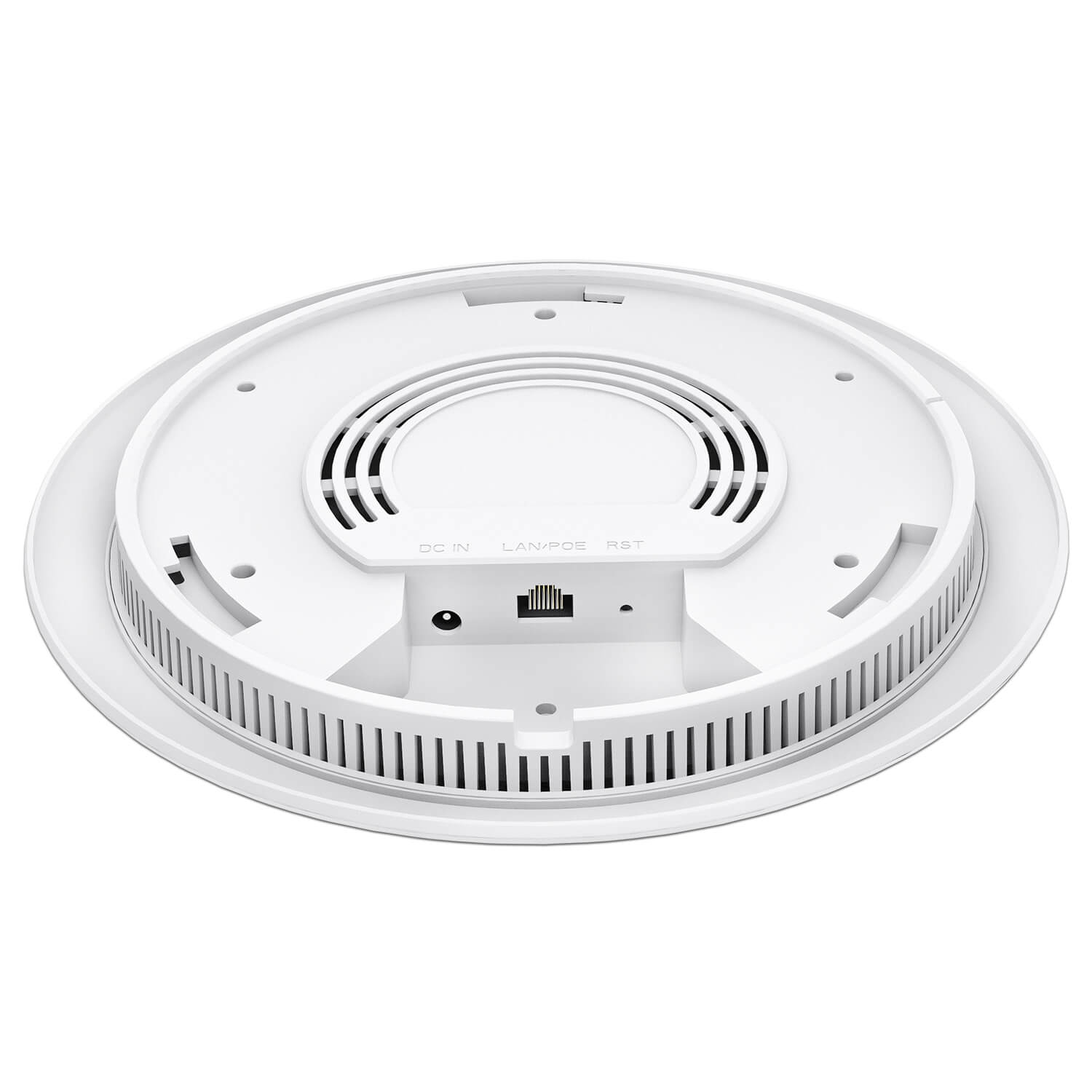

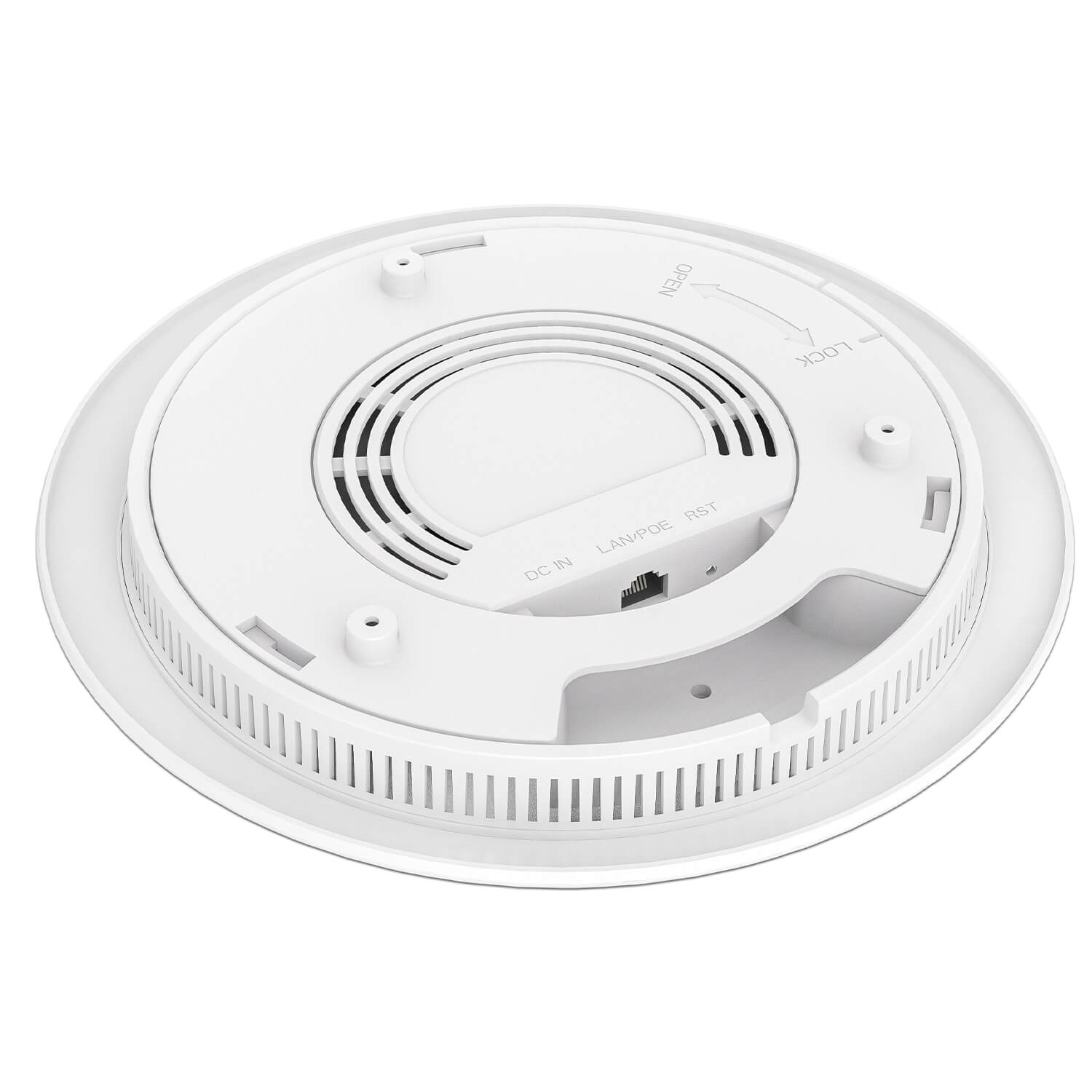

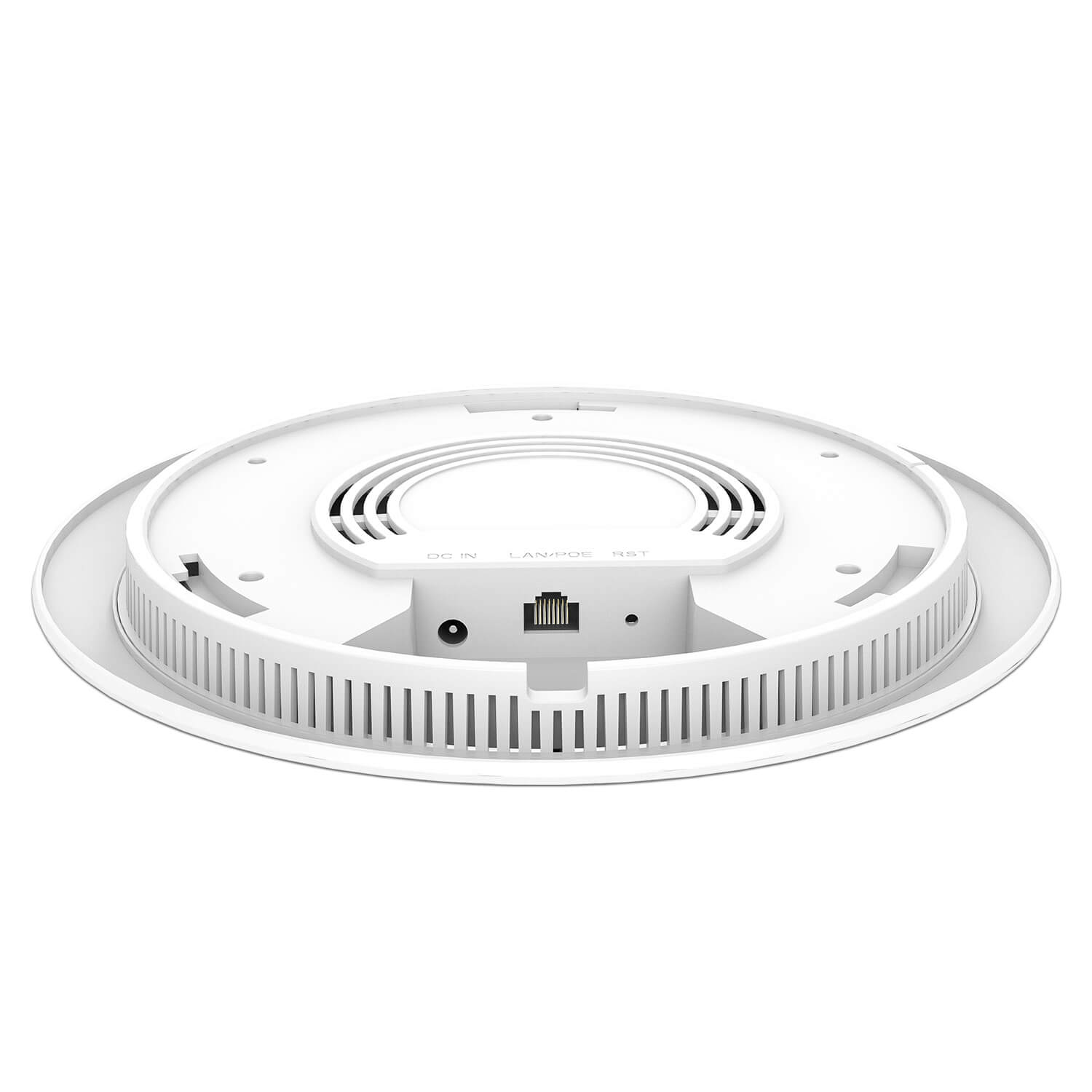

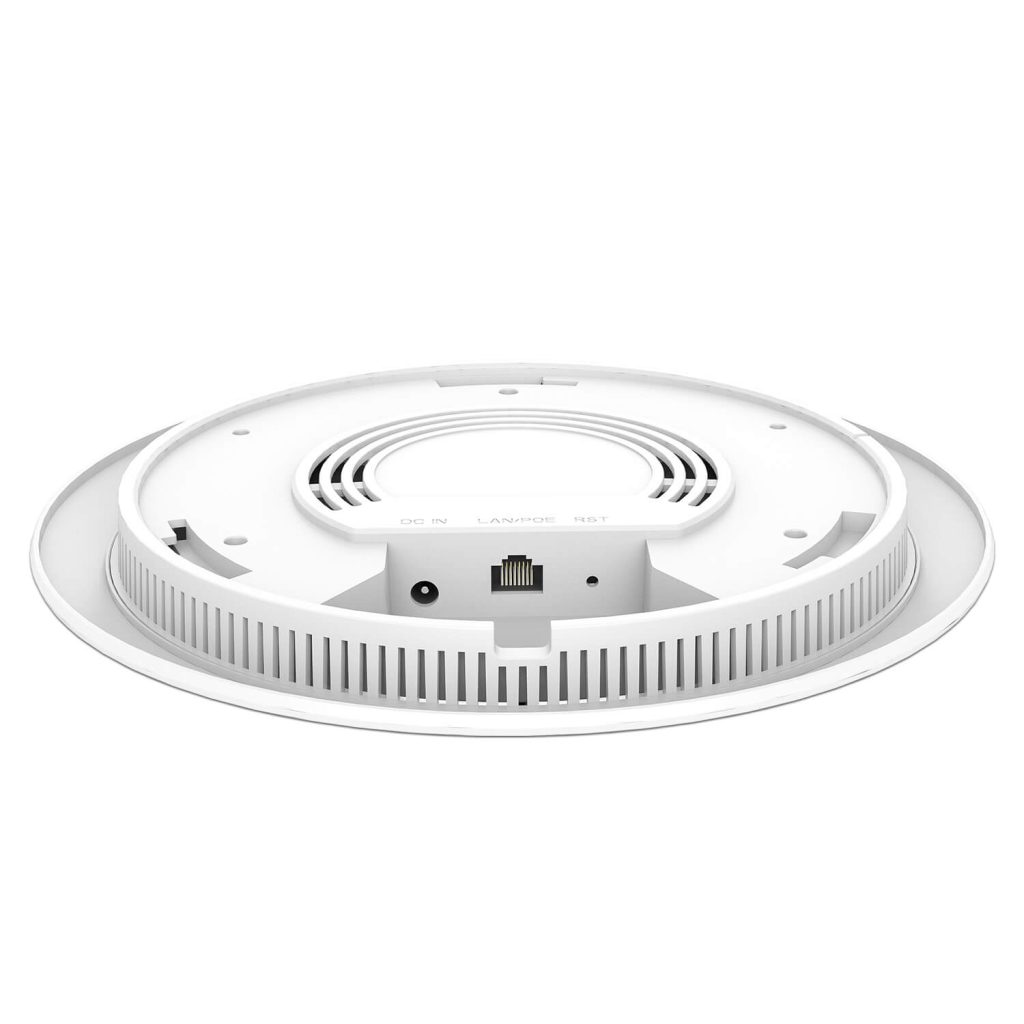

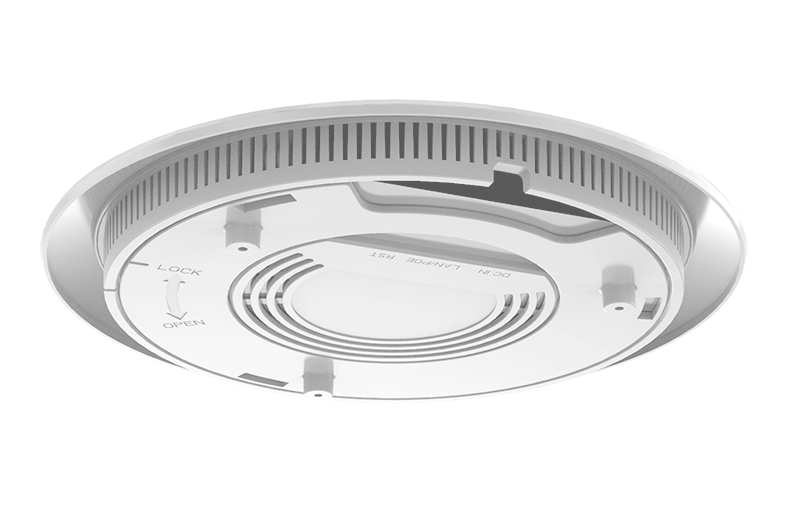

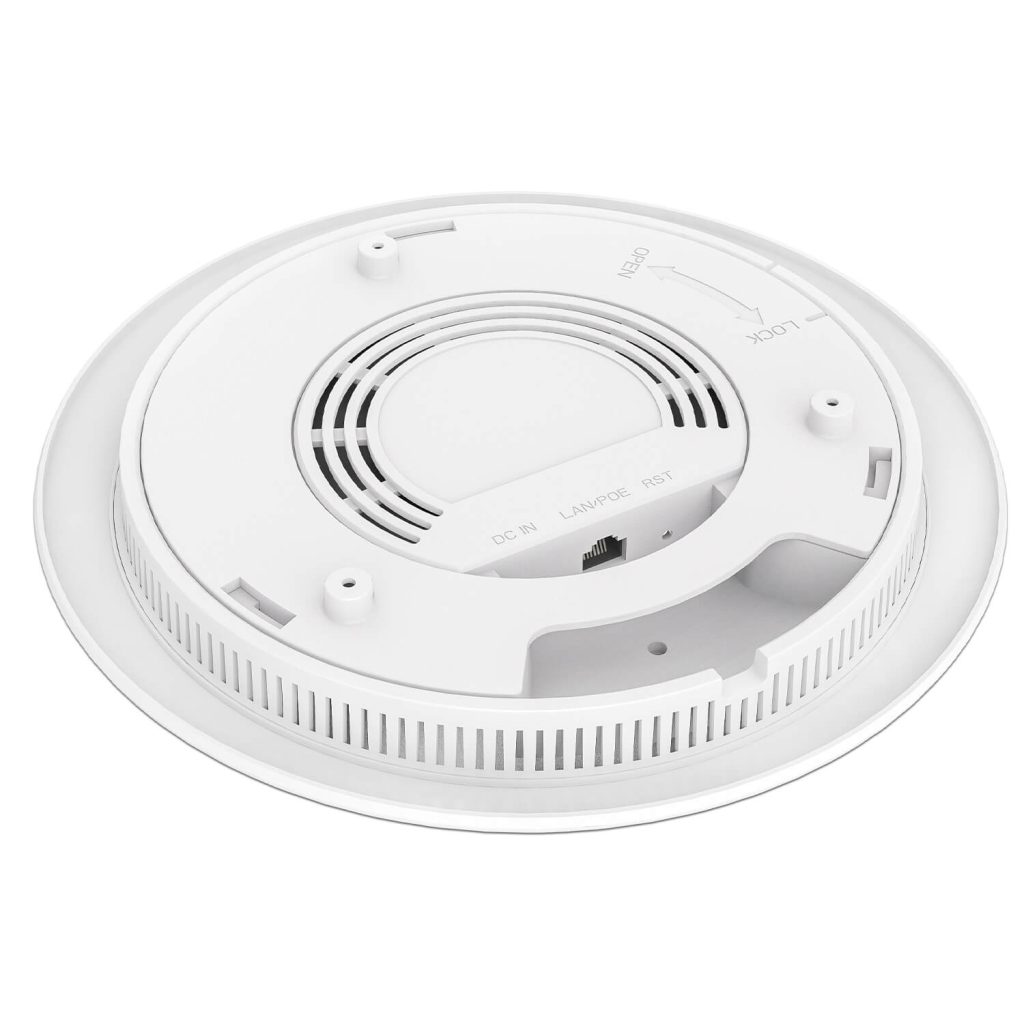

Physical interface: 1 * 10/100Mbps RJ-45-LAN interface.
Button: 1 factory reset button.
Antenna: Built in 2 dual polarization antennas.

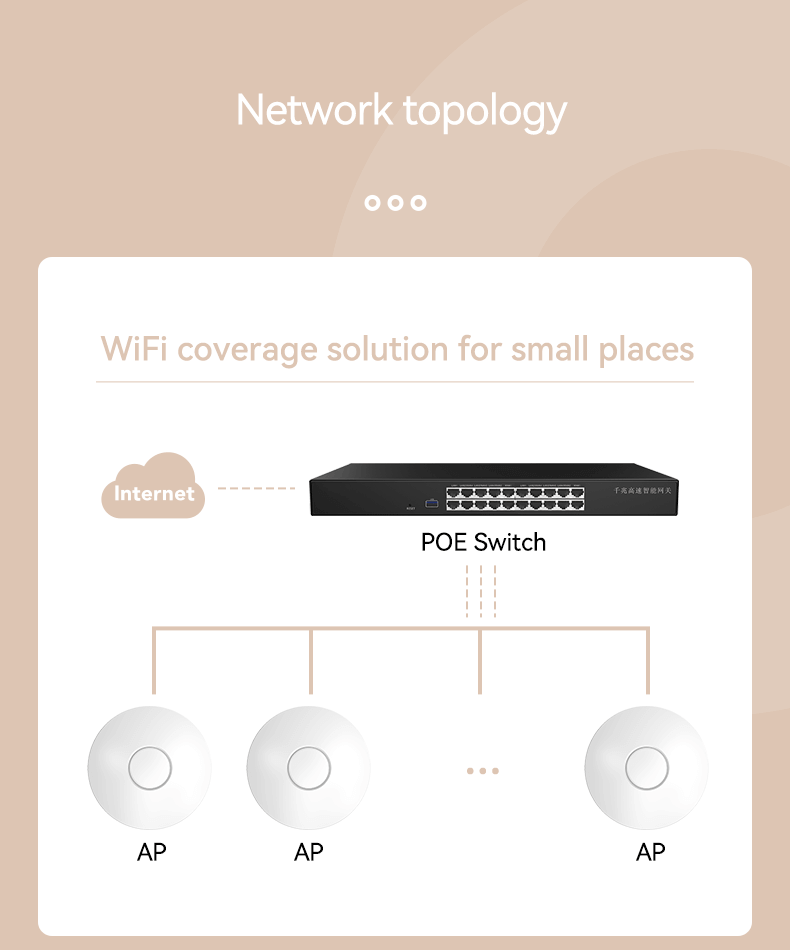

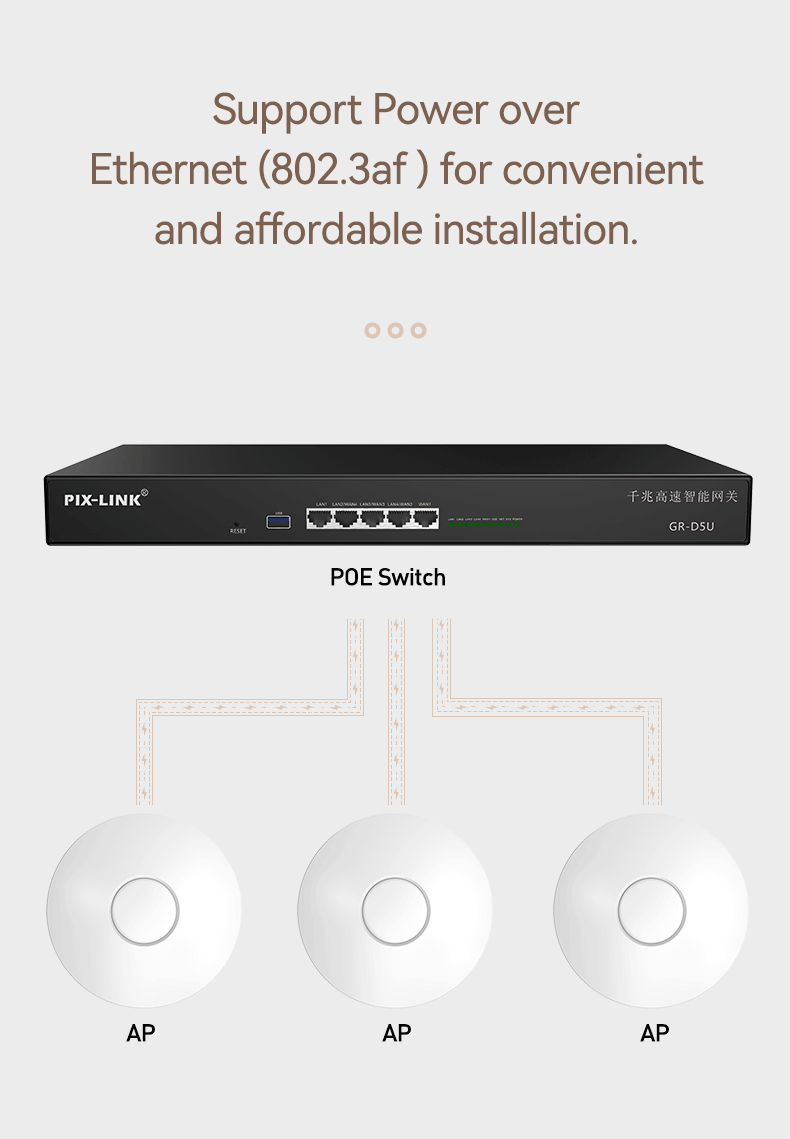

Power specifications: Standard POE802.3AF.

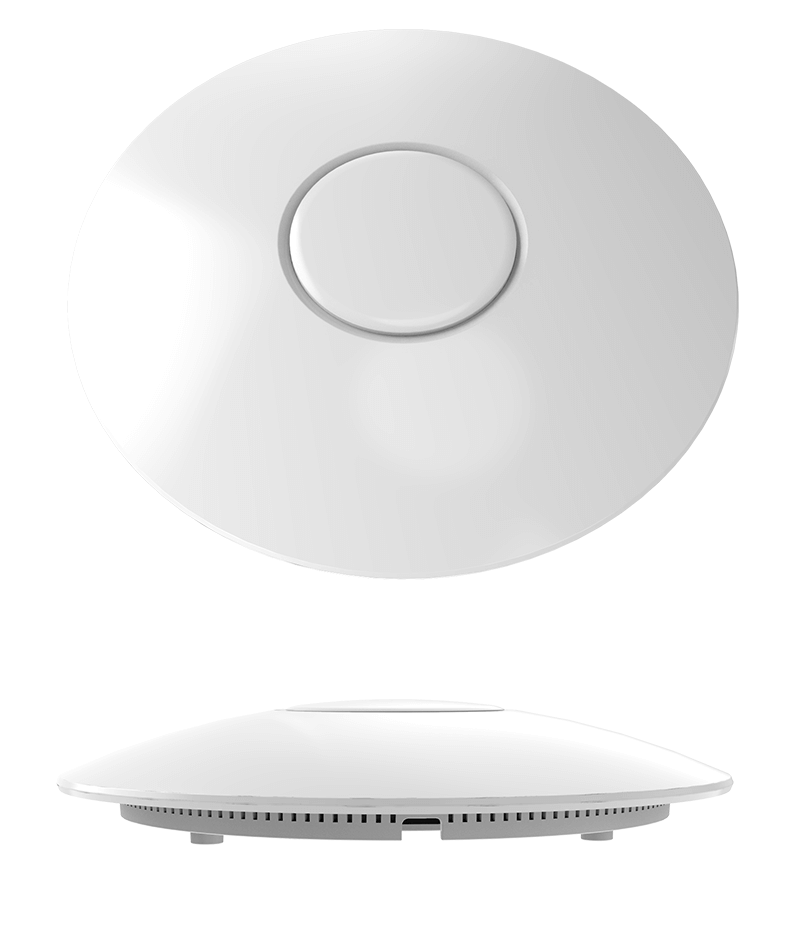

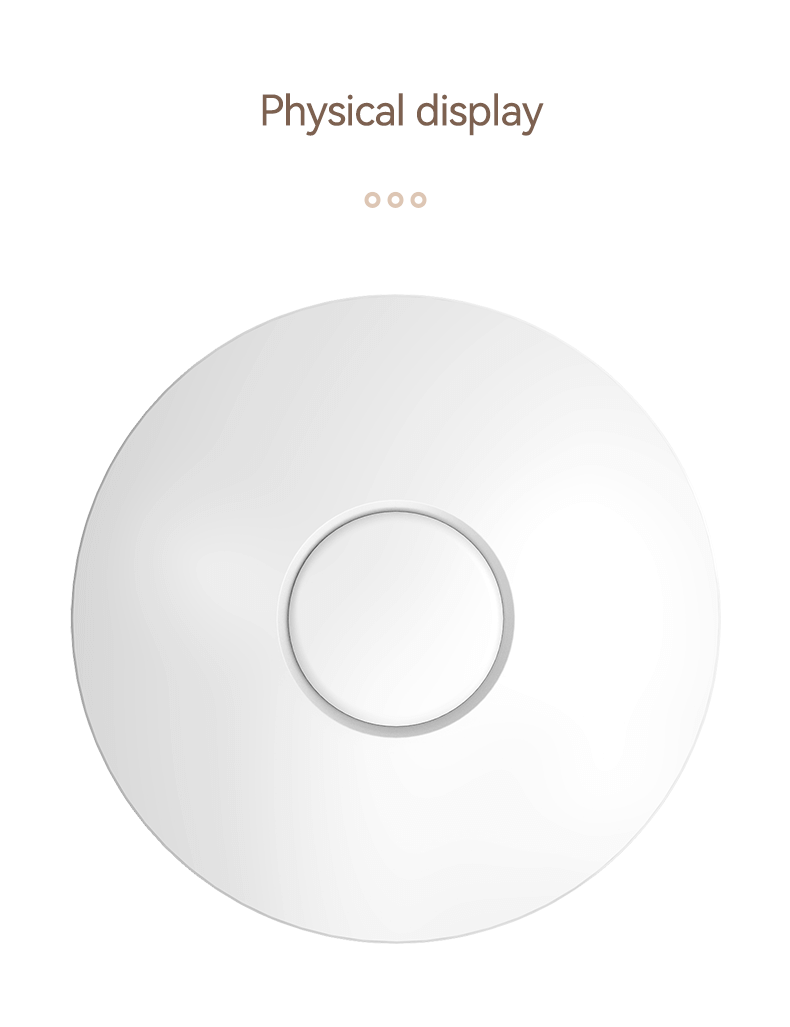

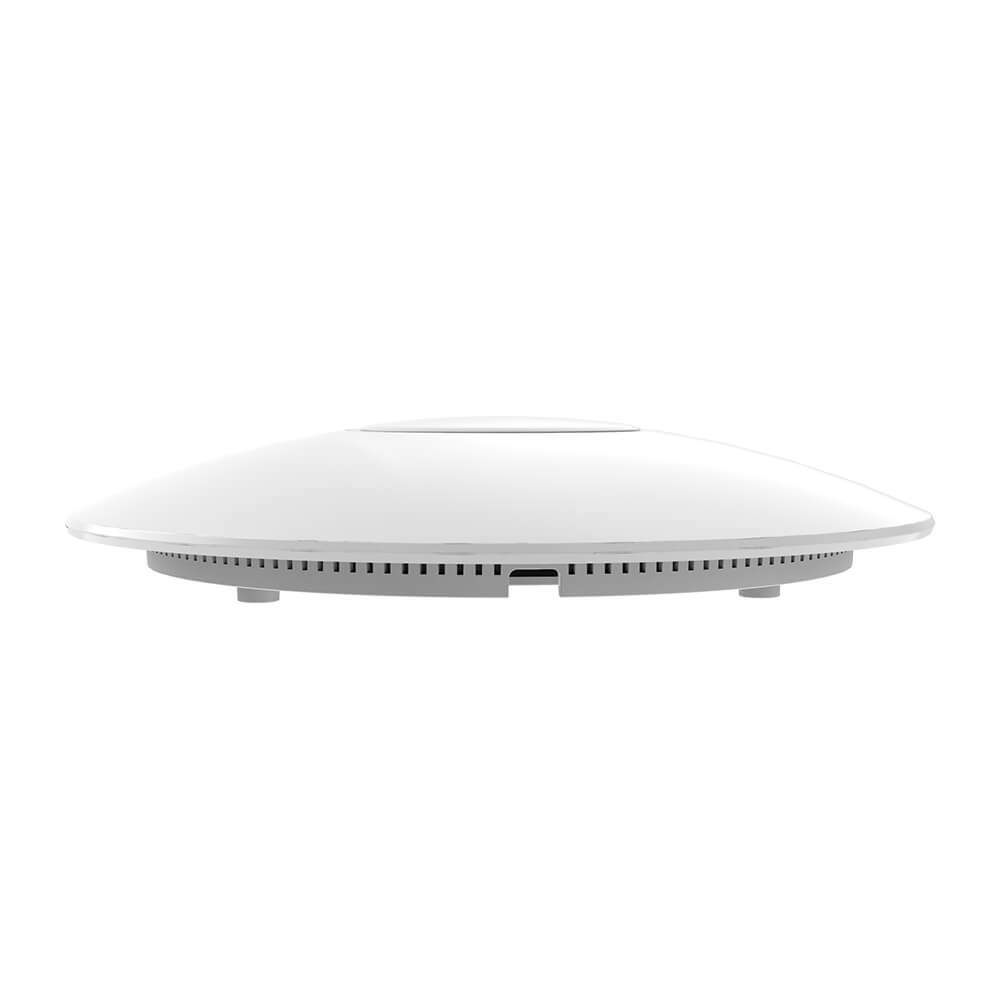

Size (W * D * H): 240mmX240mmX50mm
software
Wireless settings: wireless mode, bandwidth, channel
Encryption method, password, etc.
System tools: NTP settings, system backup configuration
Restore factory settings, firmware upgrades, system restarts
Administrator settings, system logs.
wireless
Wireless standard: IEEE 802.11B/G/N/A/AC.
Frequency: 2.4GHz, 5GHz.
Rate:
2.4GHz: 11b+g+n: up to 300Mbps (dynamic)
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
5GHz: 11ac: up to 866Mbps (dynamic)
11an: Up to 150Mbps (dynamic)
11a: Up to 54Mbps (dynamic)
Transmission power: Power<20dBm
Receiving sensitivity: 270M: -61dBm
135M: -65dBm
54M: -68dBm
11M: -85dBm
6M: -88dBm
1M: -90dBm
Wireless functions: wireless switch, wireless security, bandwidth
Channel, encryption method, password, etc.
Wireless security: NONE, WPA-PSK, WPA2-PSK
WPA/WPA2-PSK.
other

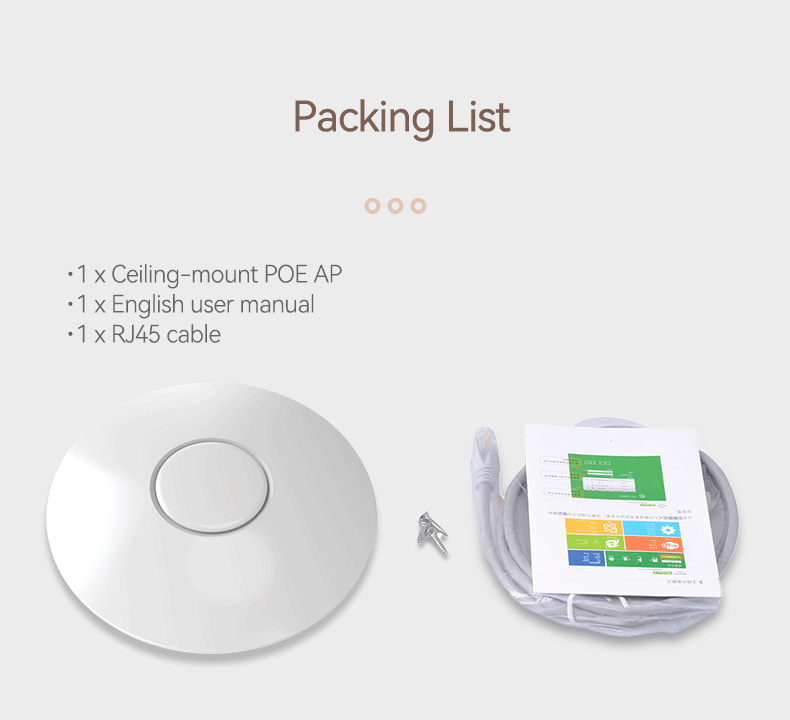

Packaging list:
1 * CAP02
1 * Network cable
1 * Quick Installation Guide
environment
Working temperature: 0 ℃~40 ℃ (32 ° F~104 ° F)
Storage temperature: -40 ℃~70 ℃ (-40 ° F~158 ° F)
Working humidity: 10%~90% non condensing
Storage humidity: 5%~90% non condensing
