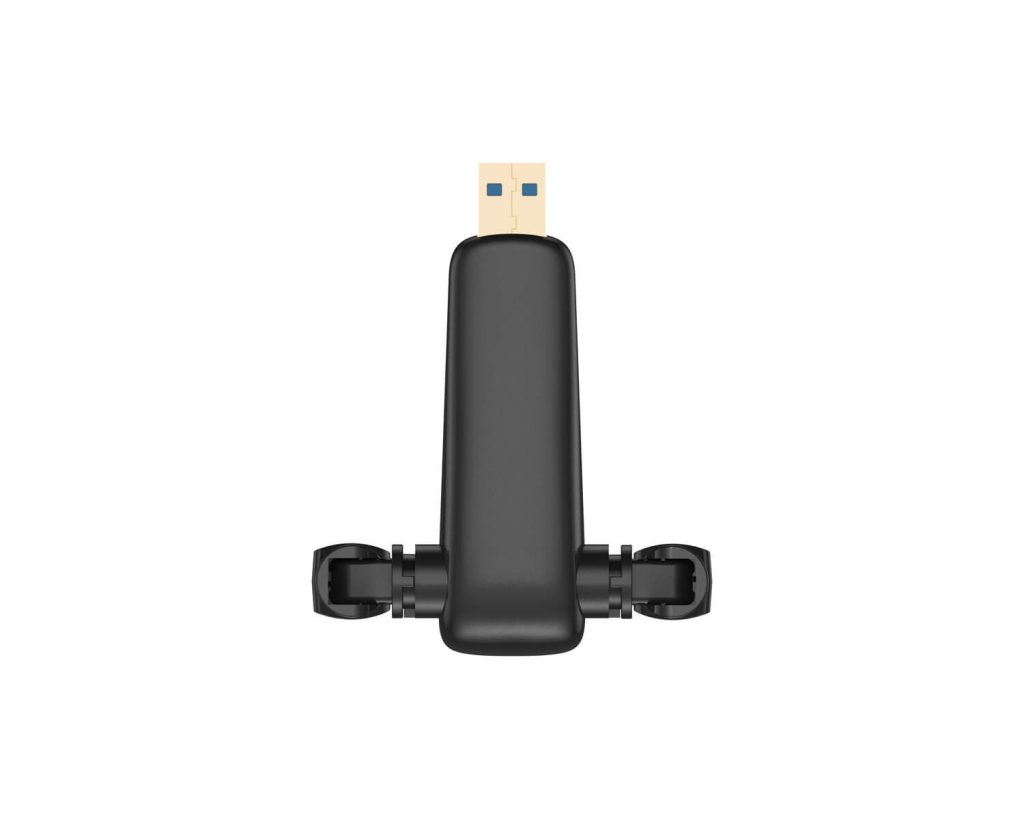

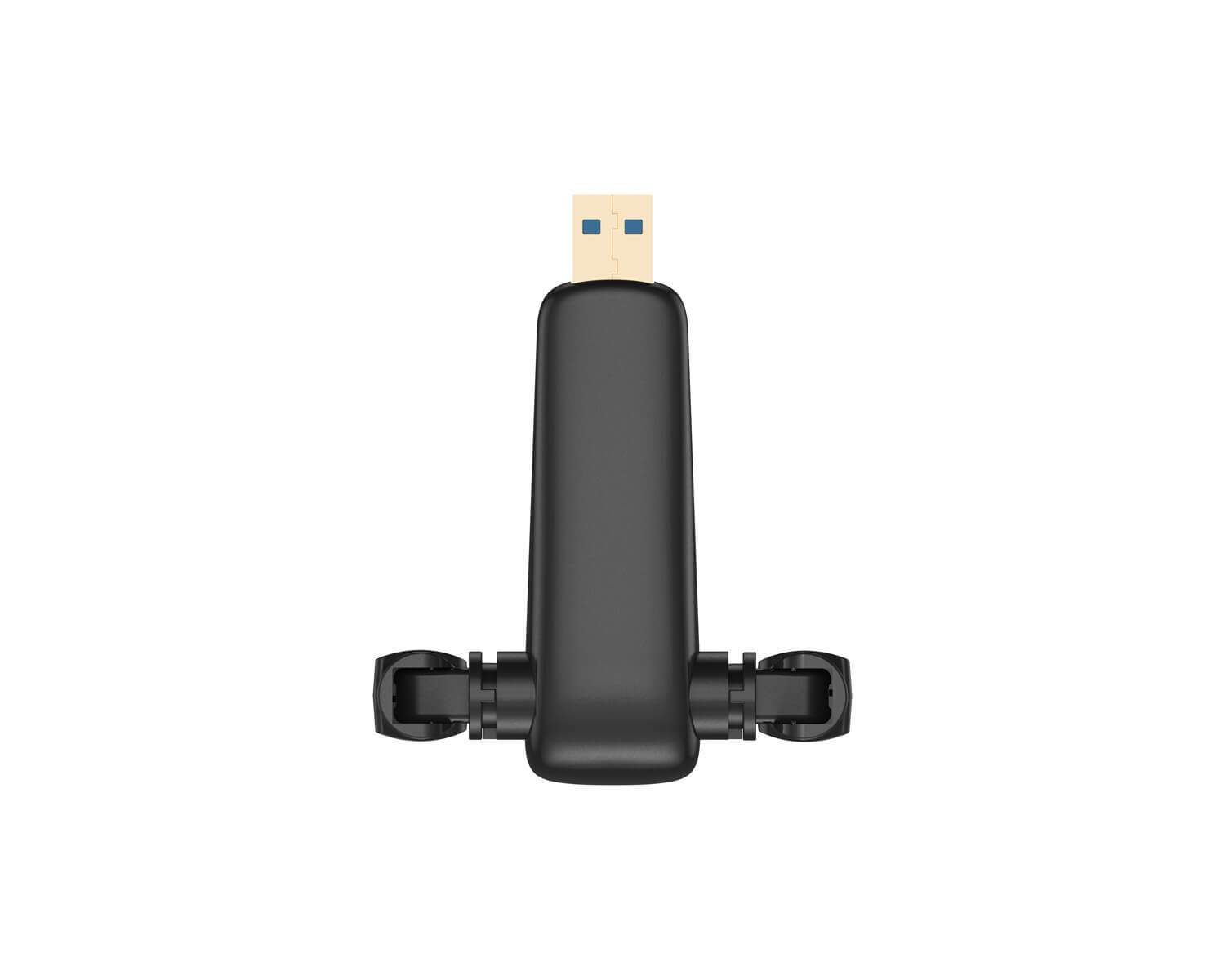

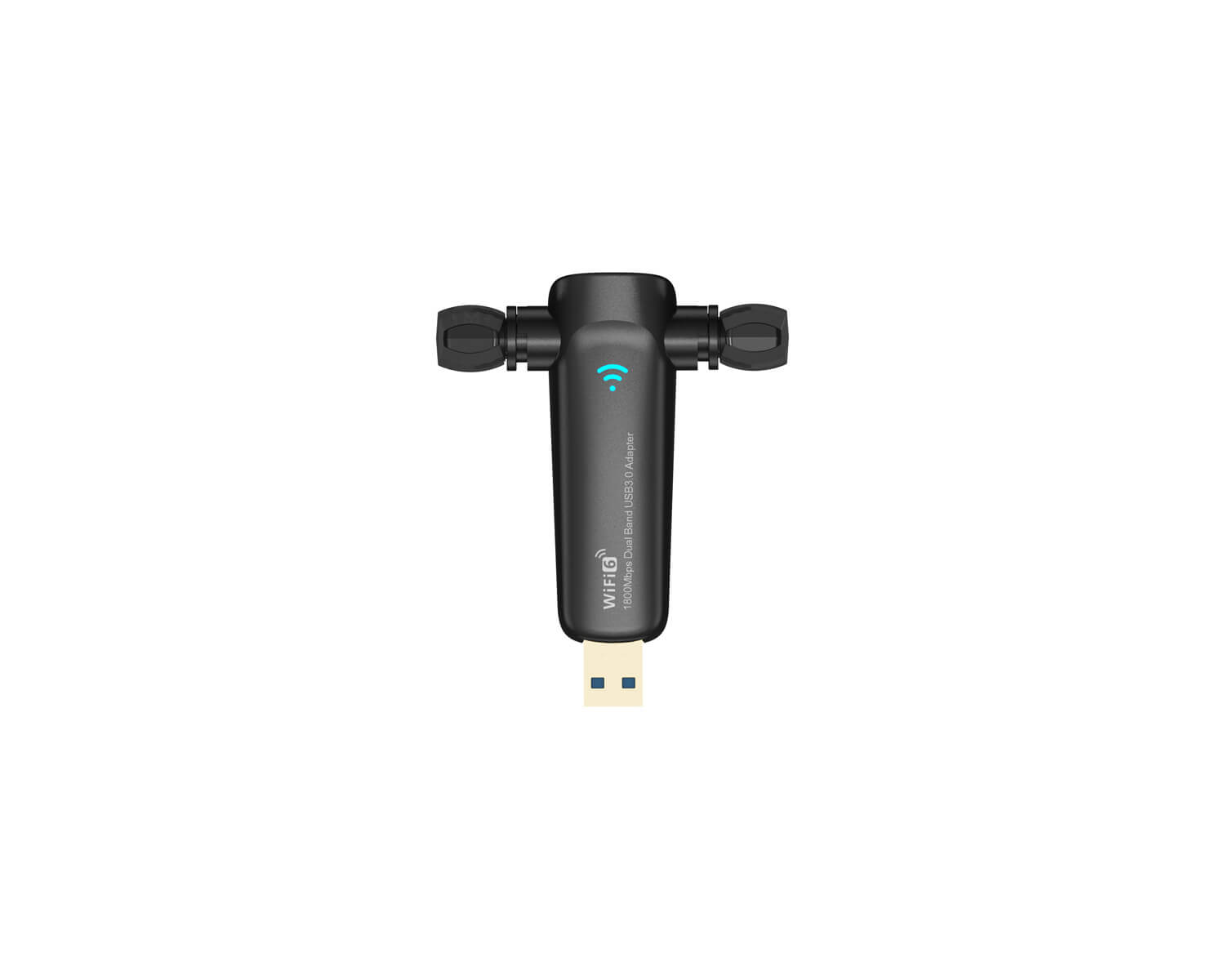

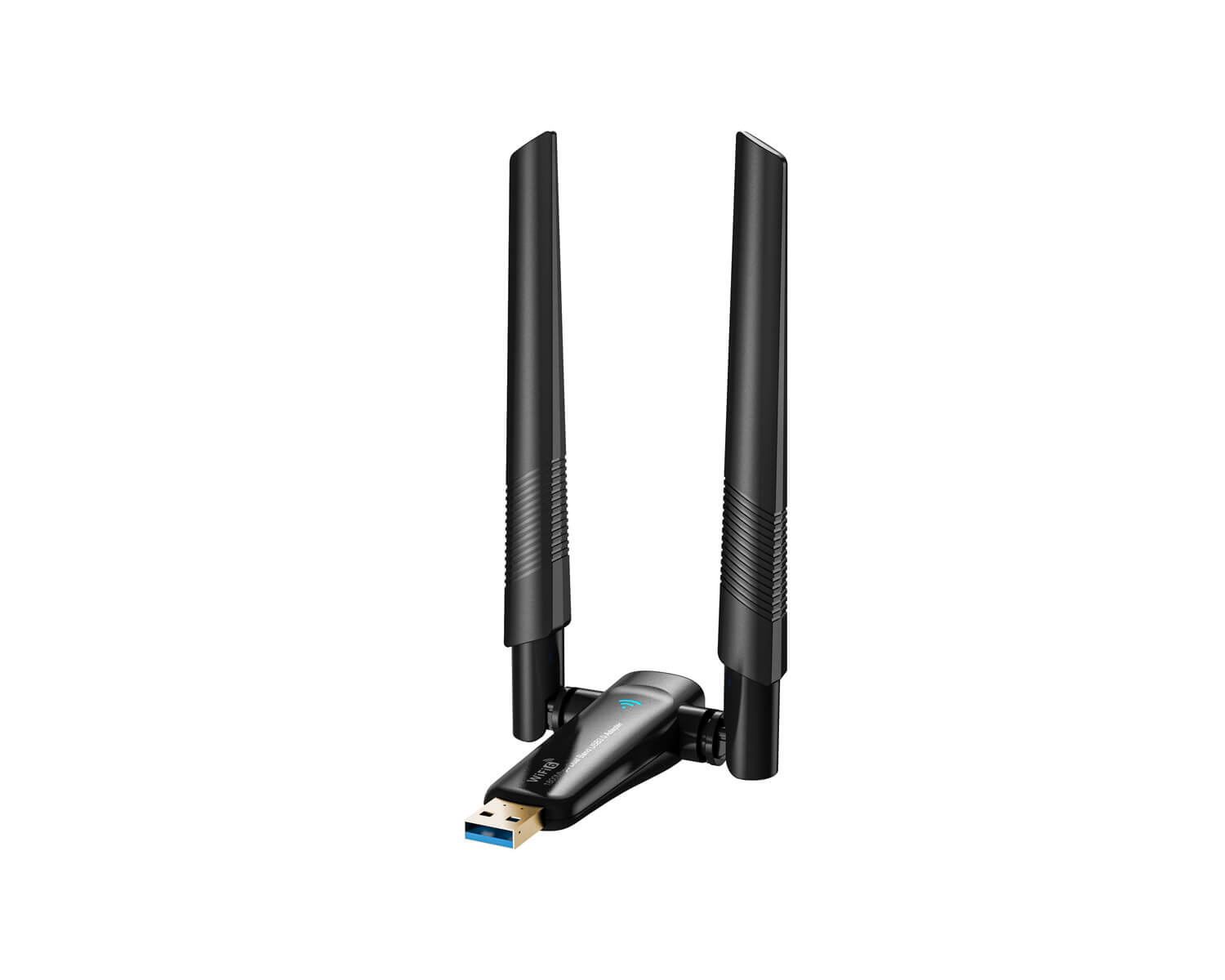

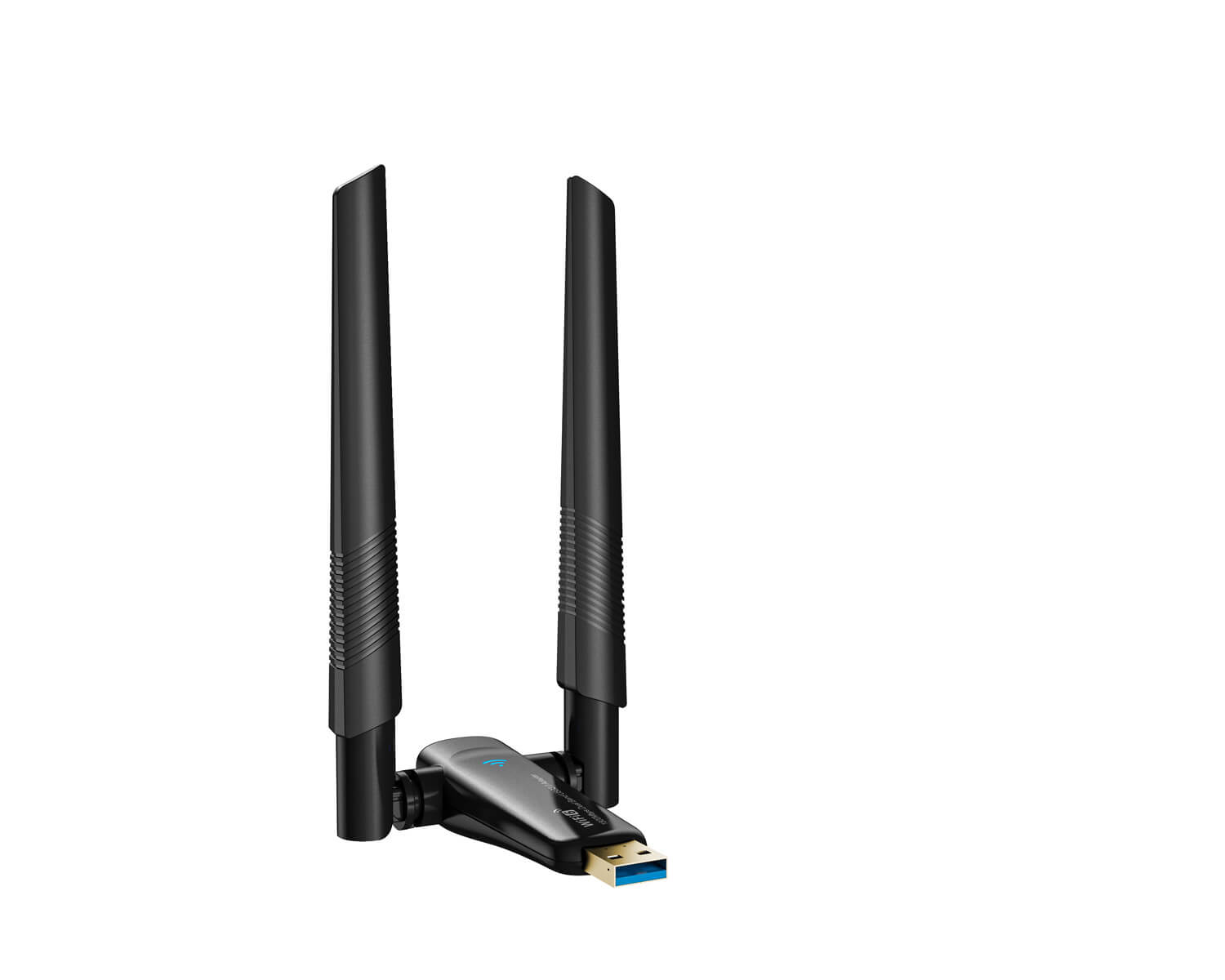

PIX-LINK High Speed Wifi Adapter Dual Band 1800Mbps WiFi Dongle for Desktop PC
Overview
Specifications
| HARDWARE FEATURES | |
| LED | Status |
| Interface | USB3.0 |
| Antenna | 2× High-Gain Dual-Band Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | 5 GHz: |
| 11ax: Up to 1201 Mbps(dynamic) | |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz: | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 400 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Reception Sensitivity | 5 GHz: |
| 11ax HE80 MCS0: -90 dBm | |
| 11ax HE80 MCS11: -59 dBm | |
| 11a 54Mbps: -77 dBm | |
| 11ac VHT80 MCS0: -92dBm | |
| 11ac VHT80 MCS9: -64dBm | |
| 2.4 GHz: | |
| 11ax HE40 MCS0: -94 dBm | |
| 11ax HE40 MCS11: -66 dBm | |
| 11g 54Mbps: -79 dBm | |
| 11n HT40 MCS9: -74dBm | |
| Transmit Power | 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) |
| 2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) | |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification | FCC, CE, RoHS |

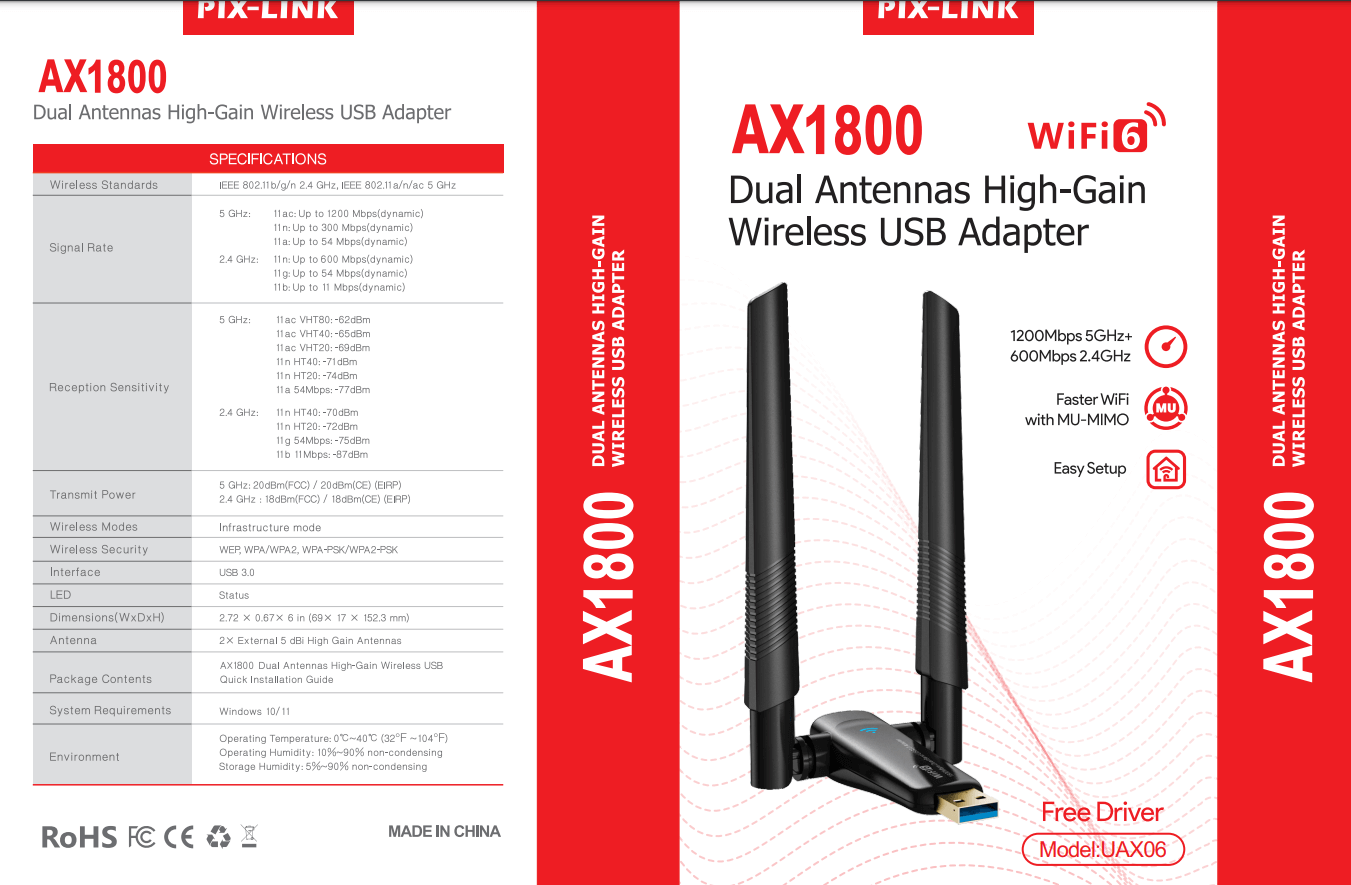

| Package Contents | AX1800 Wi-Fi 6 Dual Band High Gain USB3.0 Adapter |
| Quick Installation Guide | |
| System Requirements | Supported operating systems include Windows10, 11 |
| Environment | Operating Temperature: 0℃~40℃(32℉~104℉) |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
