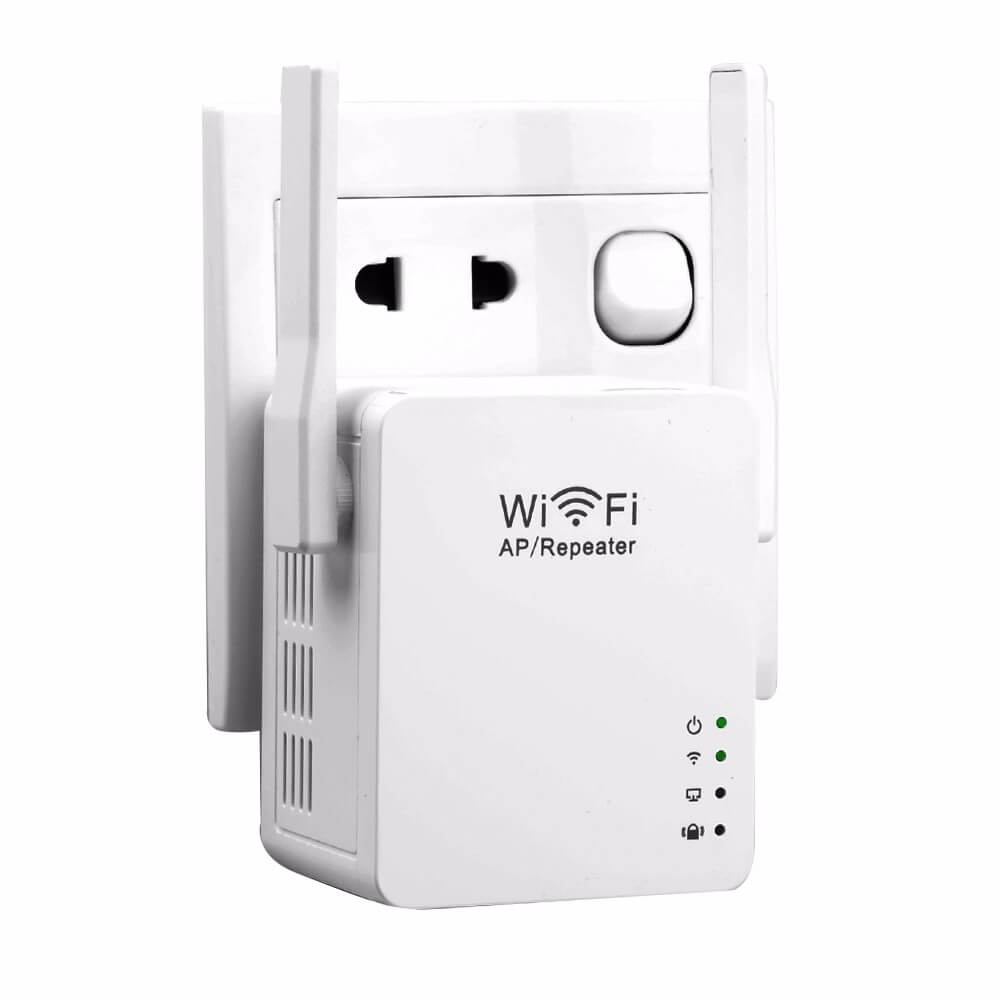

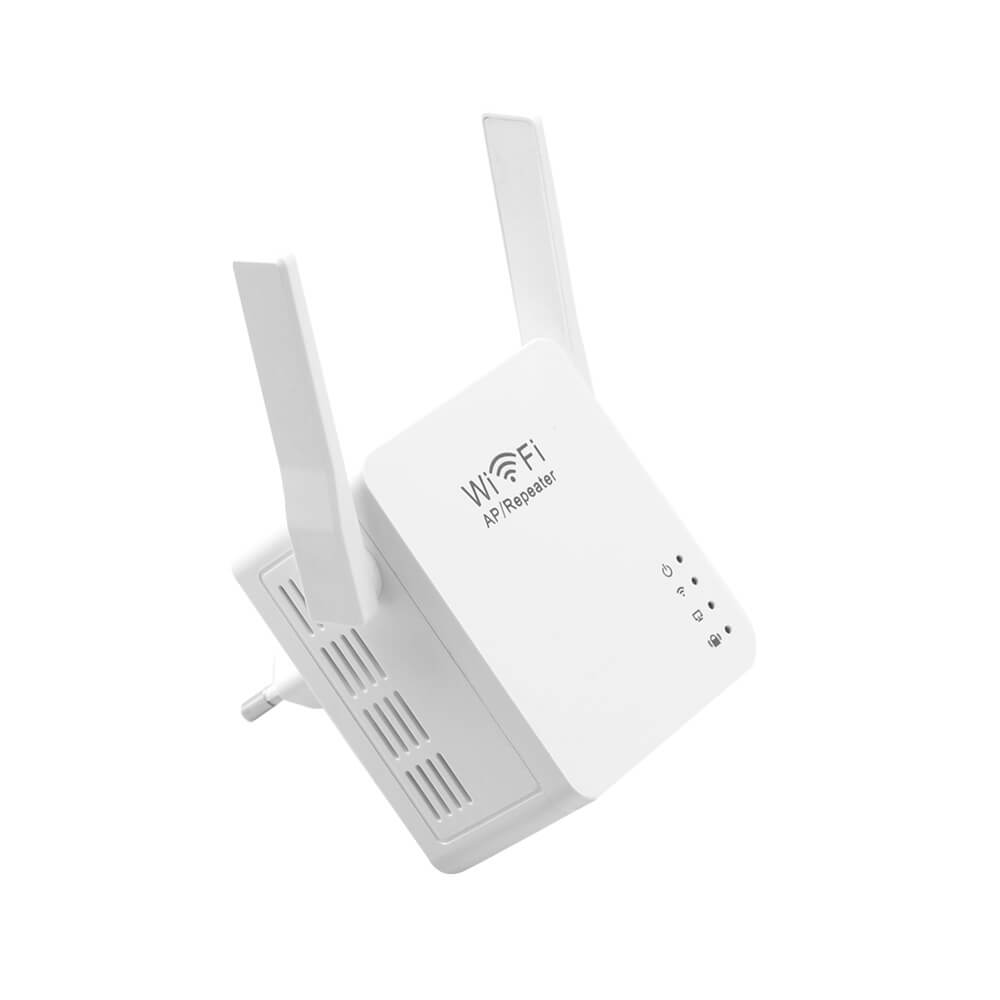

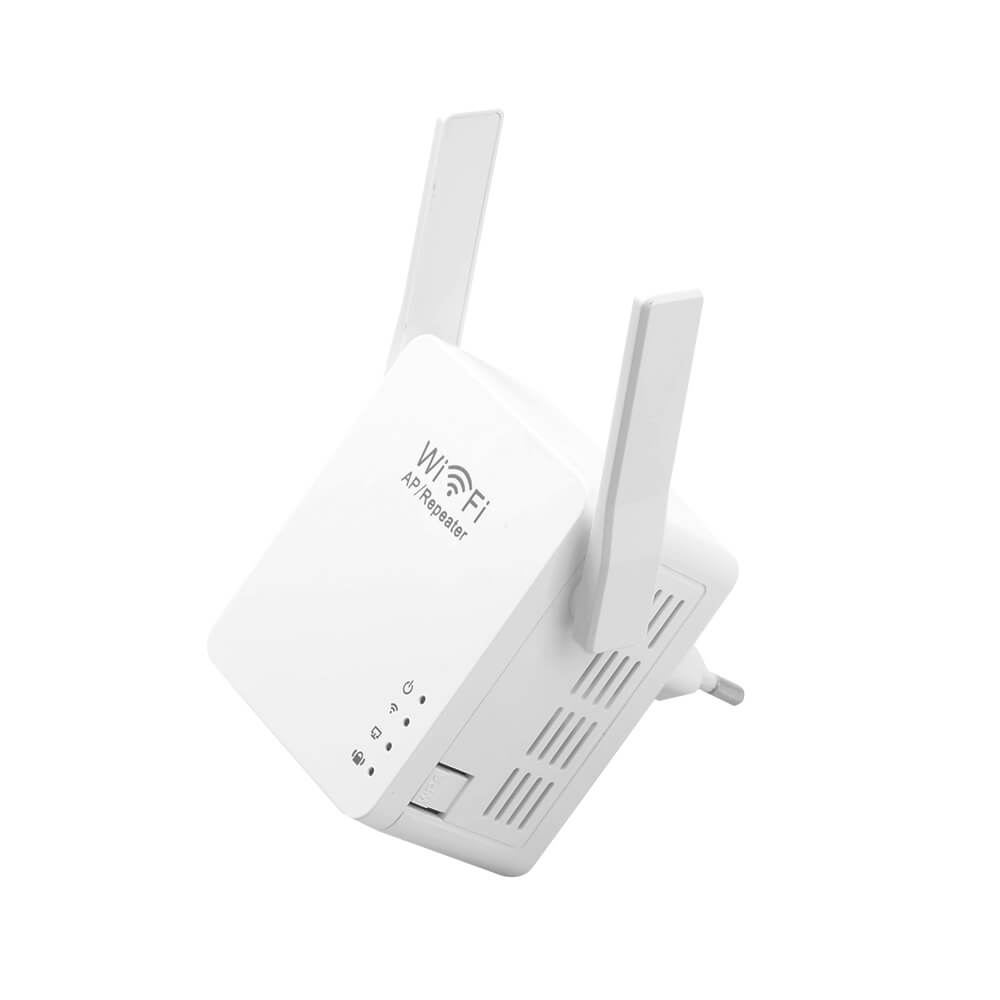

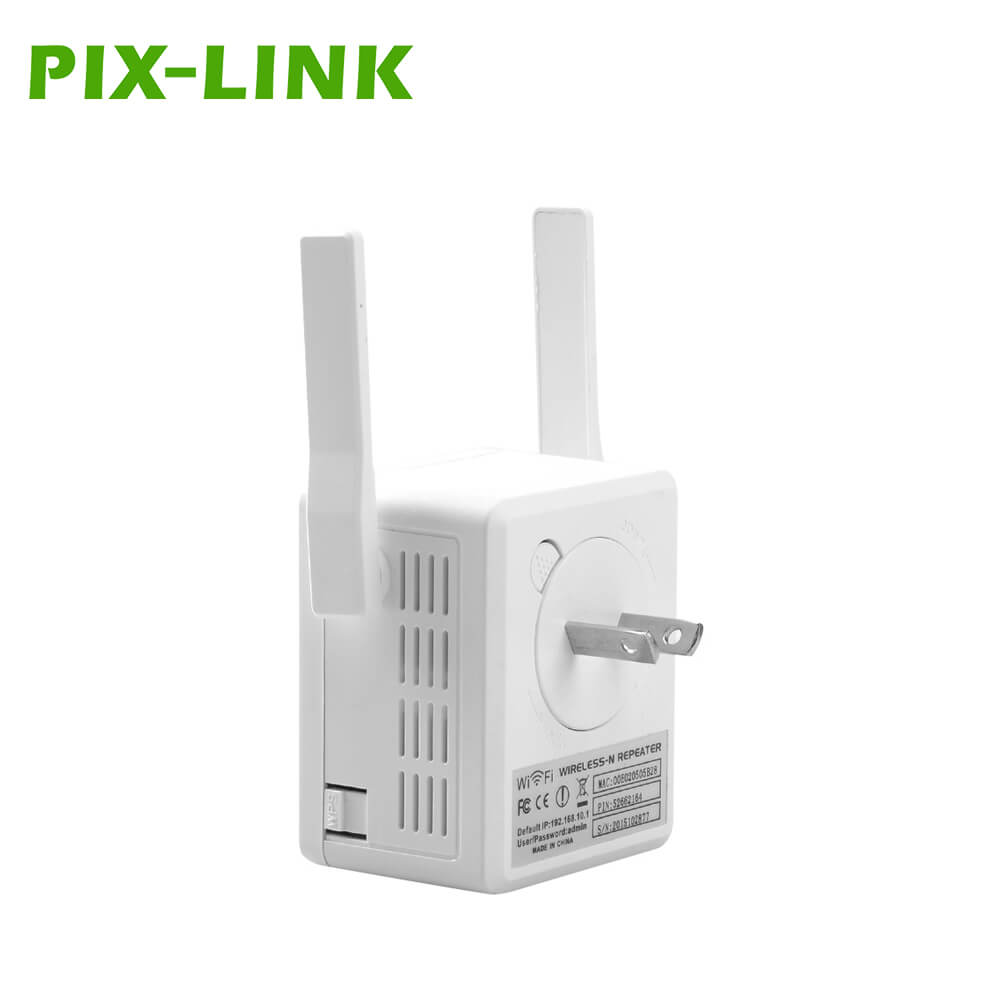

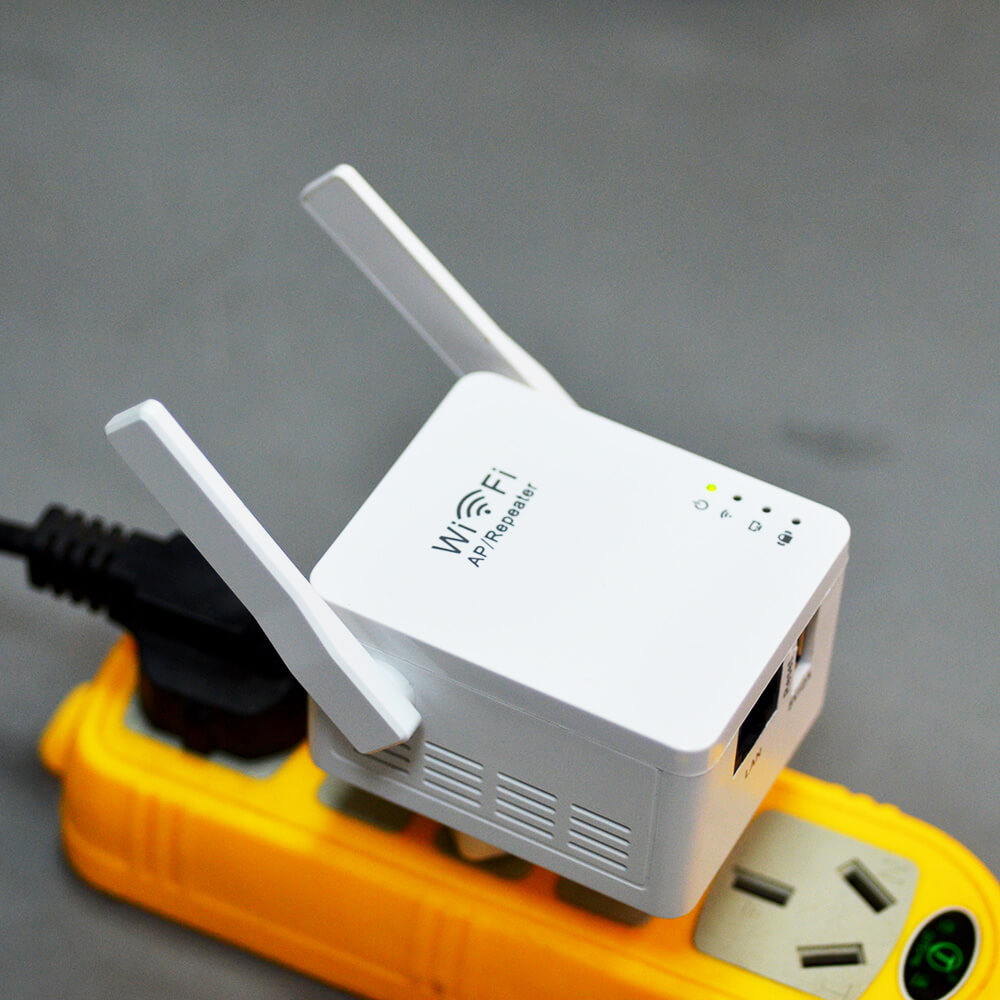

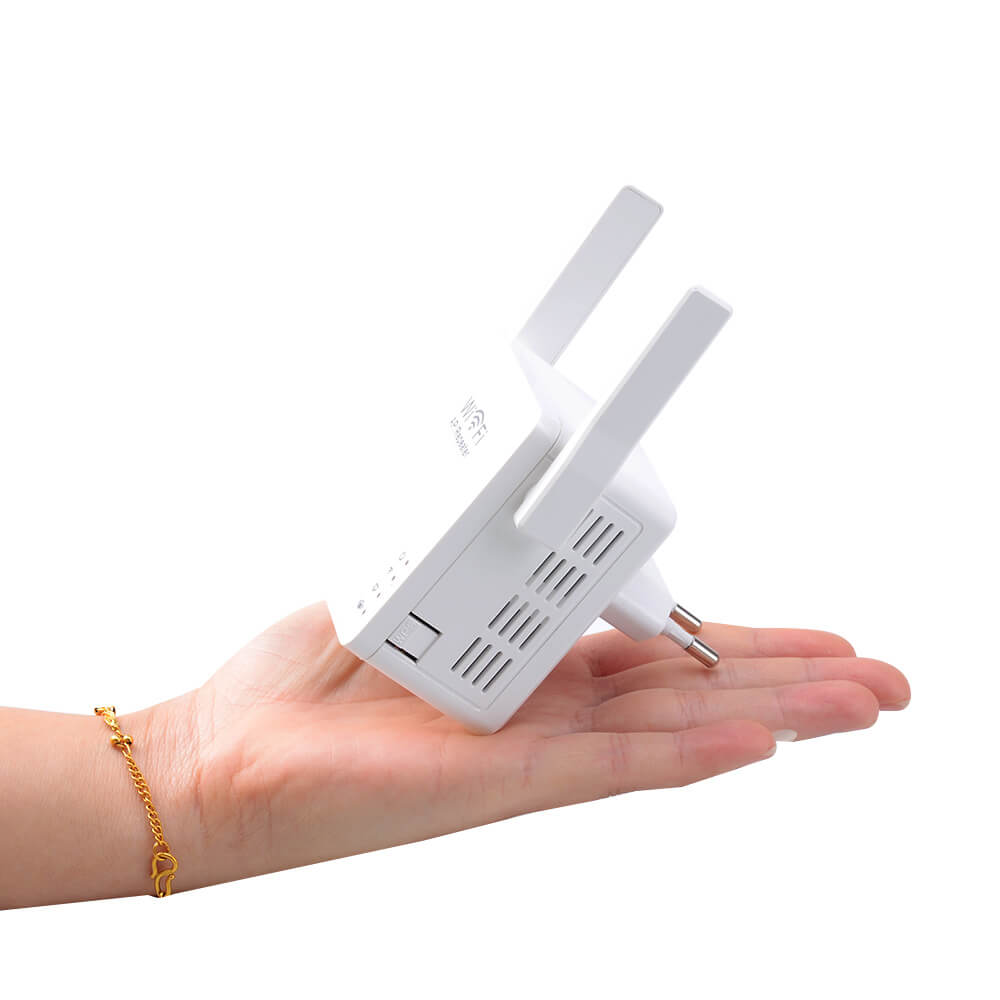

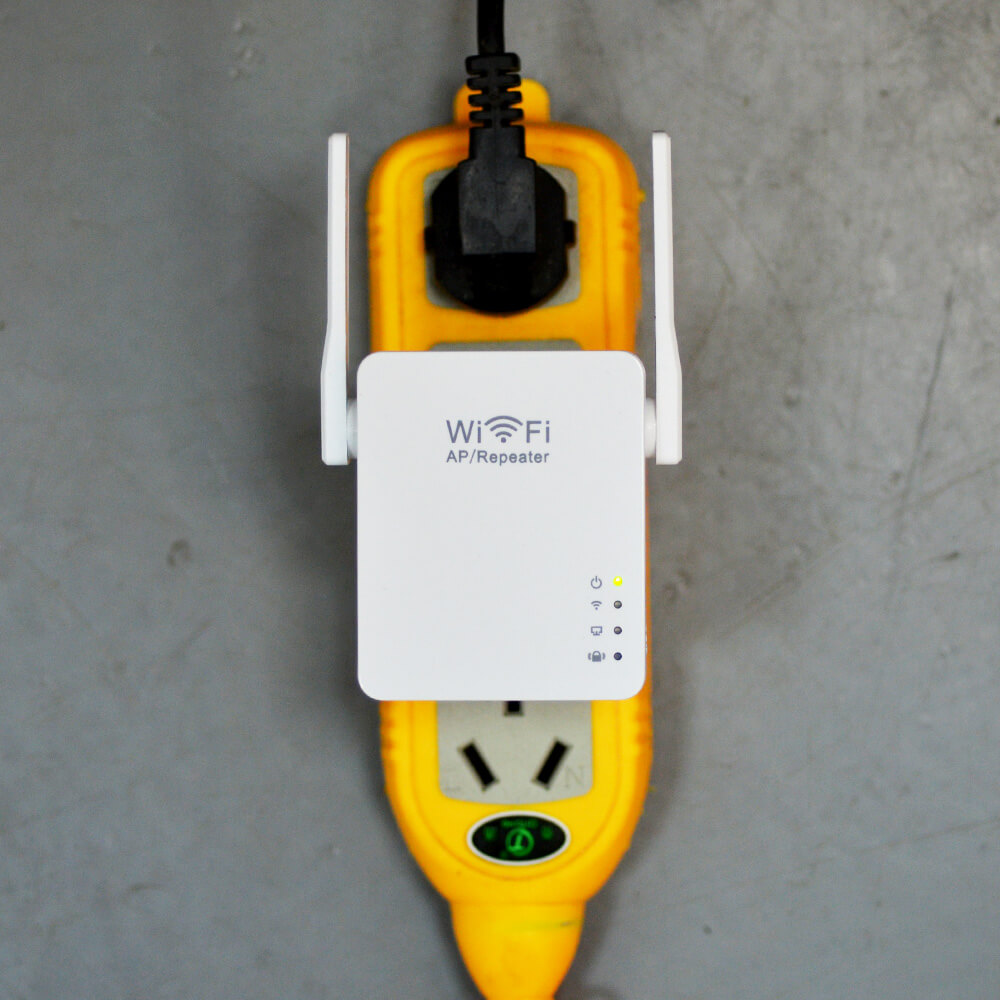

PIX-LINK Wall-Through Strong WiFi Booster
300M Internet Repeater with Ethernet Port
- Complies with IEEE 802.11B/G/N standards.

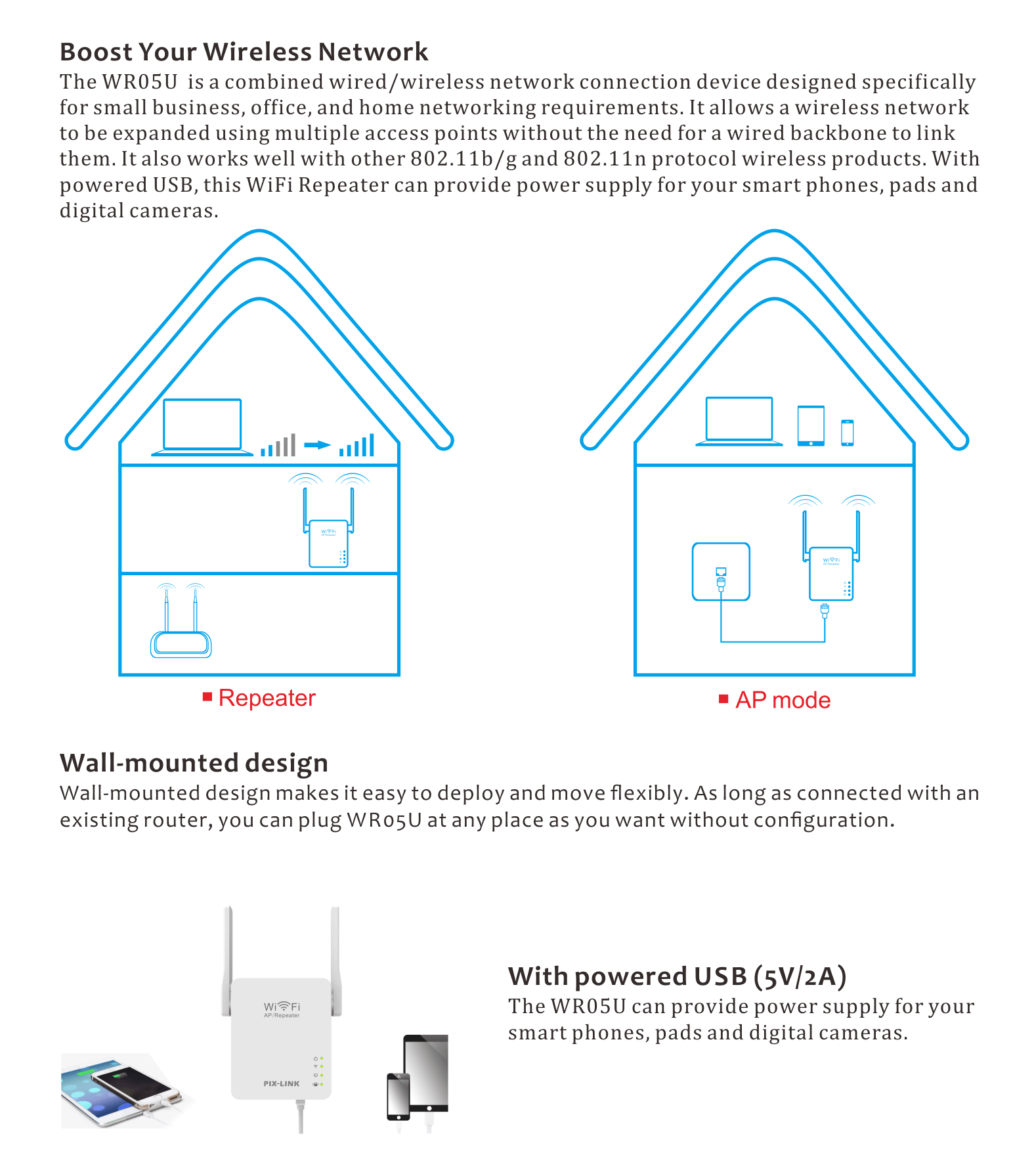

- Supports Repeater, Client and AP mode.
- Wireless-N speed up to 300Mbps
- Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions.

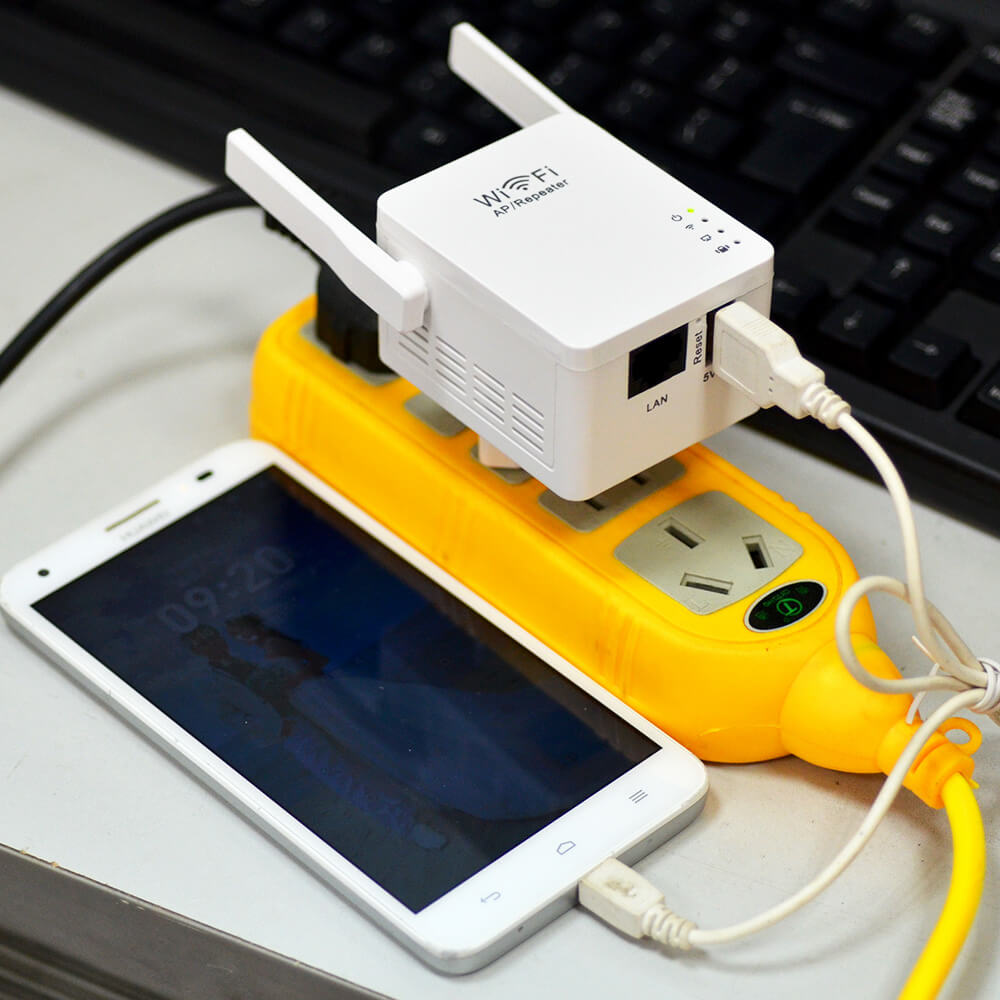

- With powered USB (5V/2A).
Overview
Specifications
HARDWARE FEATURES

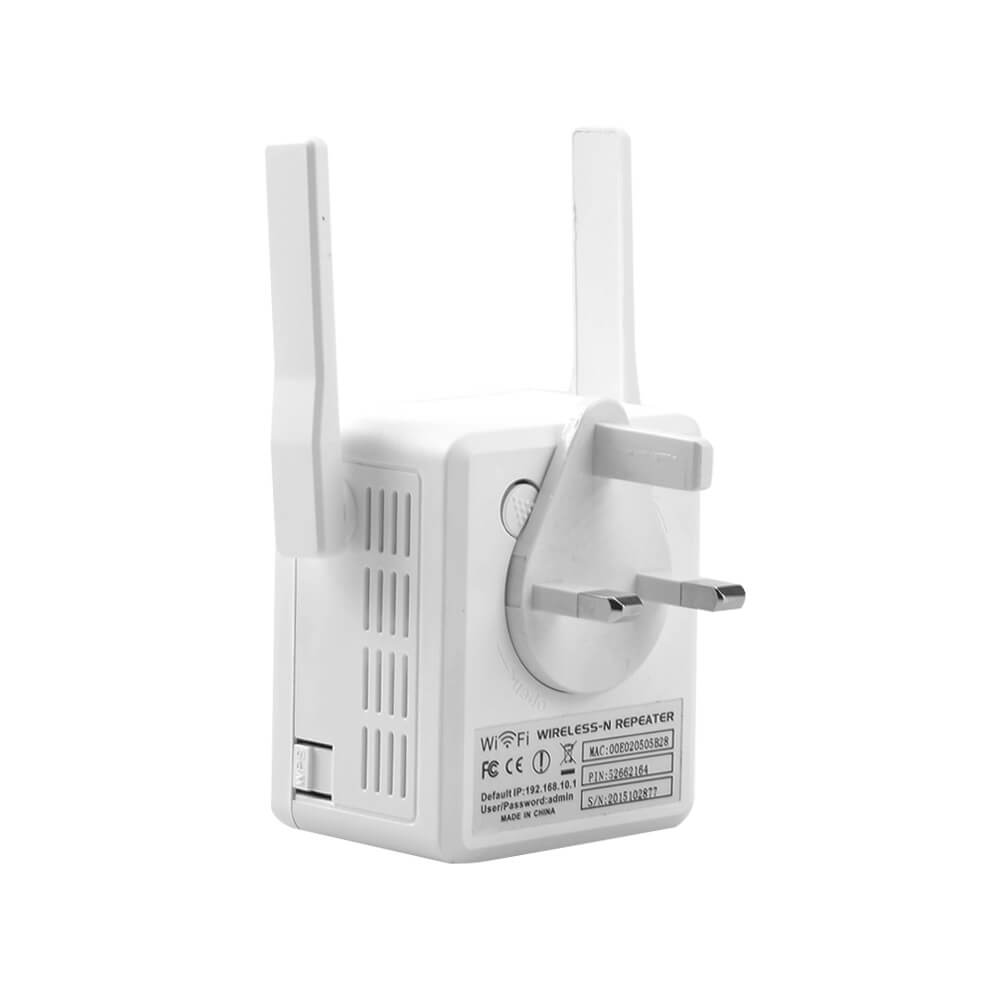

| Plug Type | EU, UK, US |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |

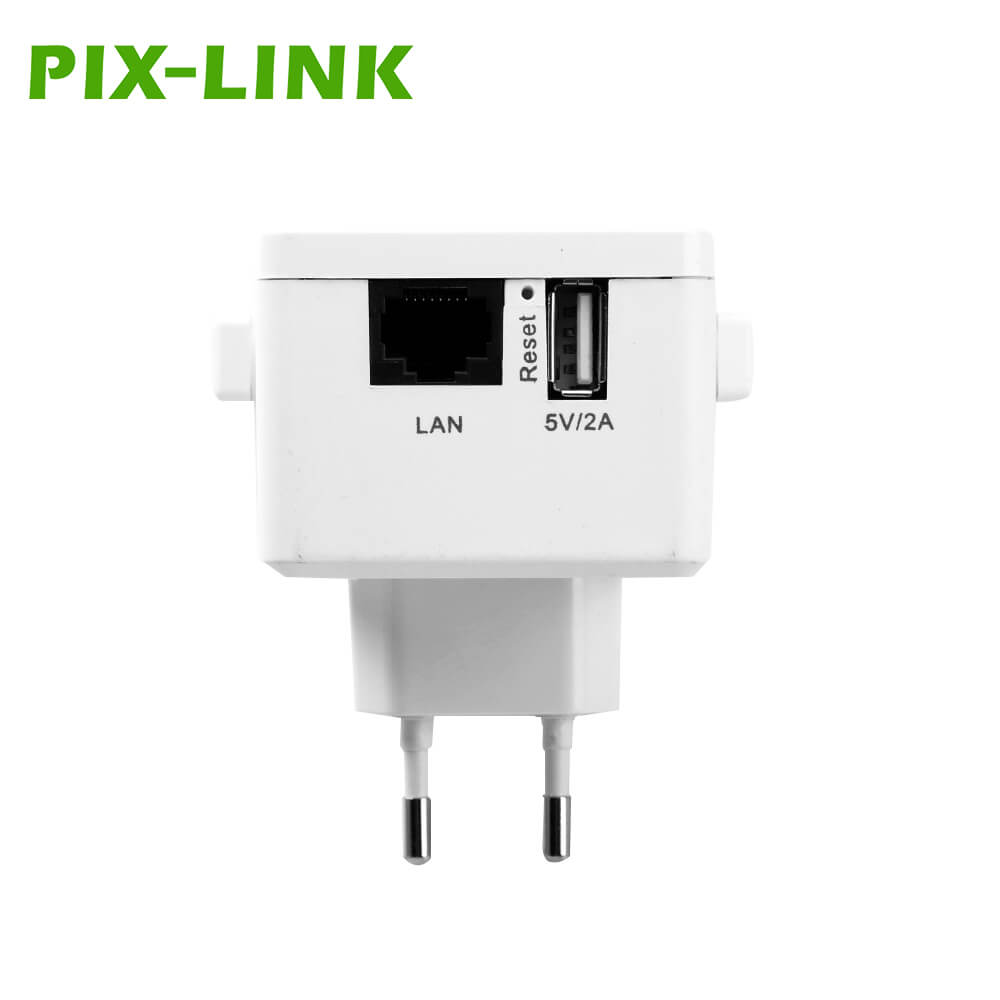

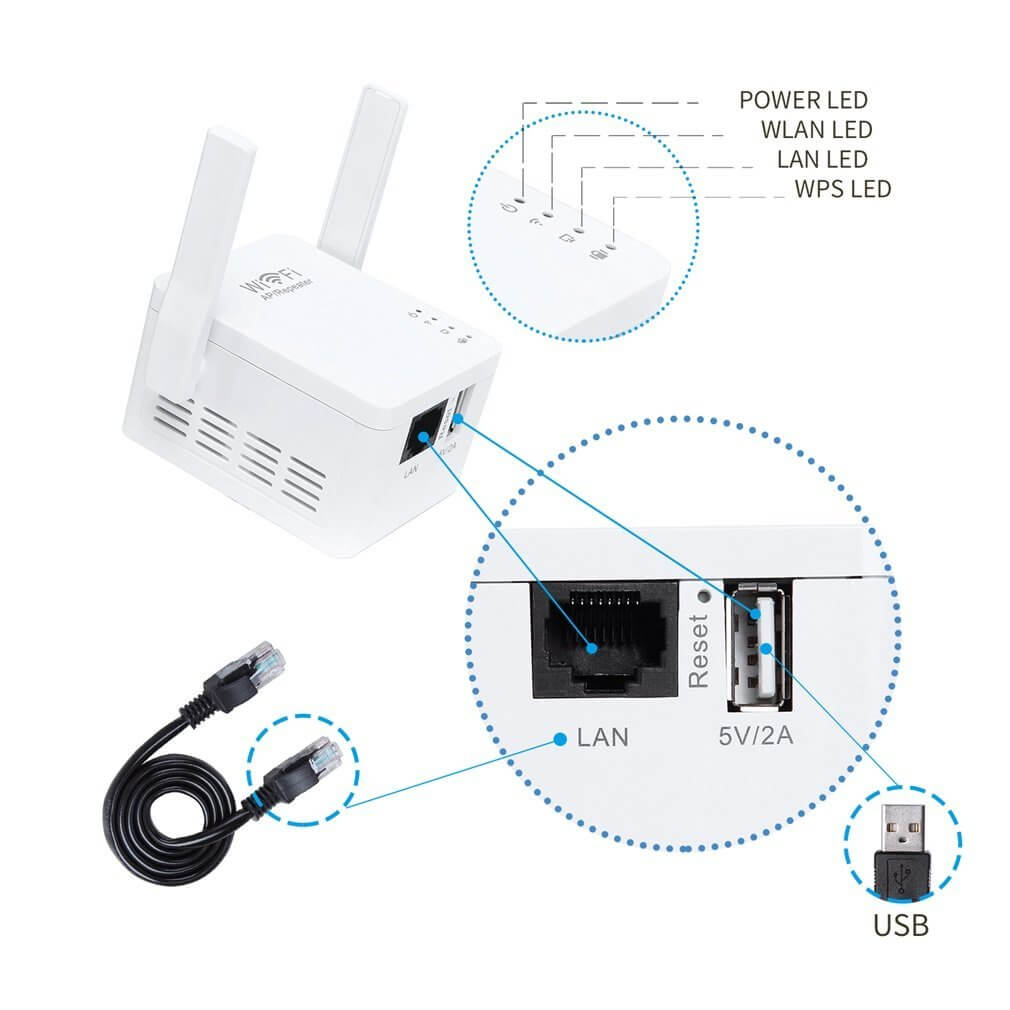

| Interface | 1 * 10/100Mbps LAN/WAN Port |

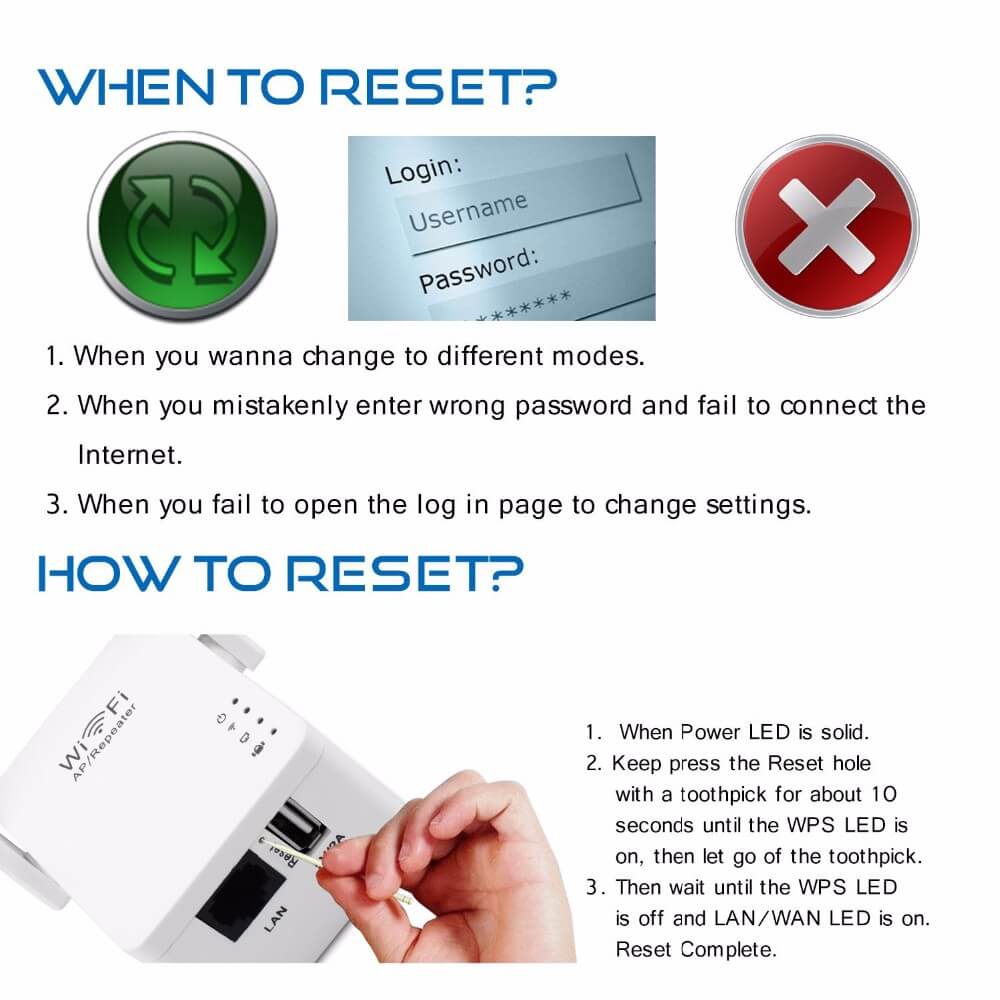

| Button | WPS Button, Reset Button |
| USB | 5V/2A |
| Antenna | 2 * external |

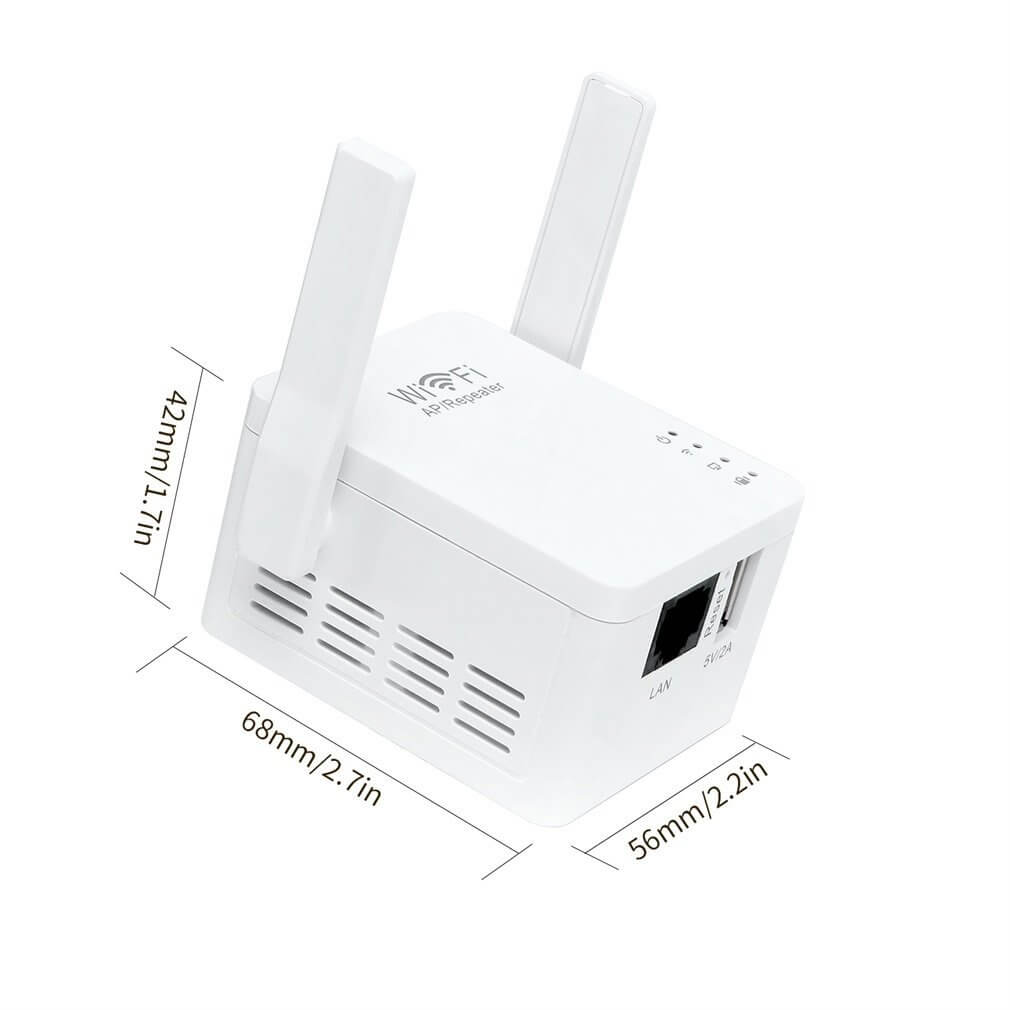

| Dimensions ( W x D x H ) | 68.0 x 56.0 x 43.0mm |
WIRELESS FEATURES
| Frequency | 2.4~2.4835GHz |
| Signal Rate | Up to 300Mbps (dynamic) |
| Reception Sensitivity | 270M: -69dBm@10% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Repeater/AP |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
OTHERS
| Package Contents | 1xWireless-N Repeater/AP 1xRJ-45 Ethernet Cable 1xQuick Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
