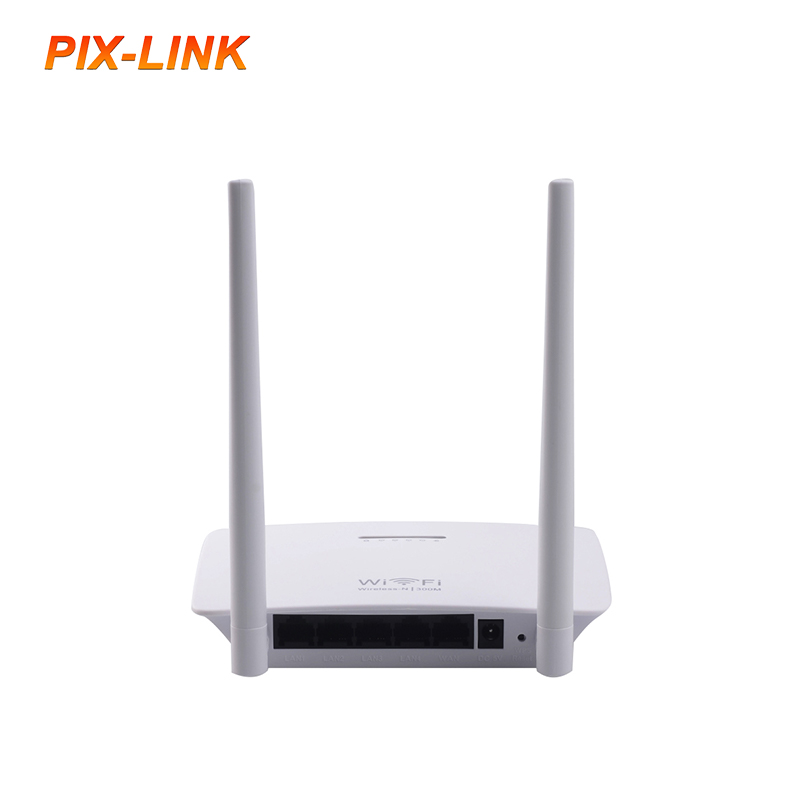

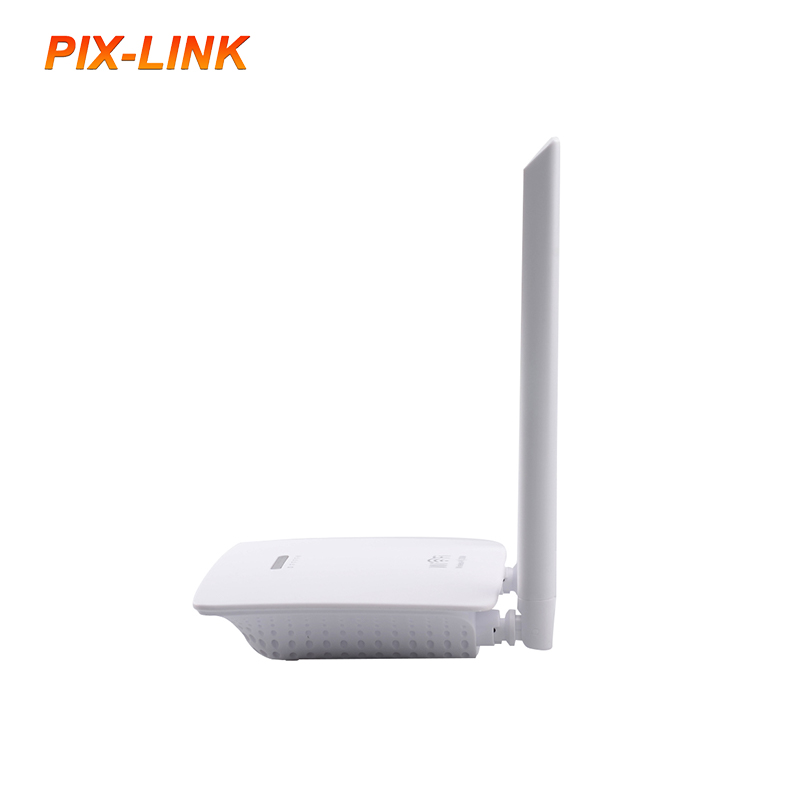

PIX-LINK 2024 Hot Selling WR07 Wireless Router 300mbps 2 Antena Wifi

  • 300Mbps wireless speed ideal for interruption sensitive applications.
  • Easy setup and enjoy a security wireless network in a minute.
  • Wireless security encryption easily at a push of WPS button.
  • Work as client to connect ISP network and share the Internet.

Overview

Overview of the Router

The Wireless-N Router is a combined wired and wireless network connection device designed specifically for small business and home office networking requirements. The Wireless-N Router is a high speed solution that is compatible with IEEE 802.11bgn. Based on 802.11n technology, It gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

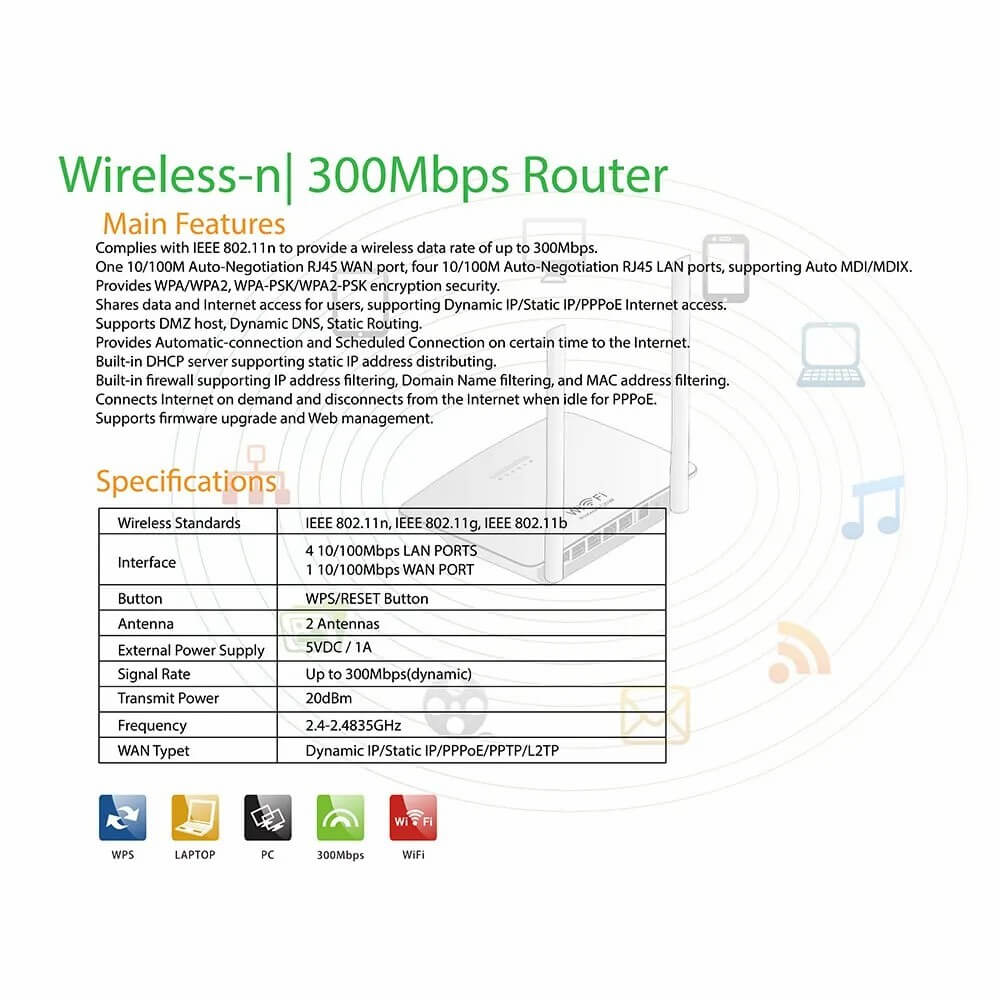

Main Features

  • 300Mbps wireless speed ideal for interruption sensitive applications.
  • Easy setup and enjoy a security wireless network in a minute.
  • Wireless security encryption easily at a push of WPS button.
  • Work as client to connect ISP network and share the Internet.
    Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.
    One 10100M Auto-Negotiation RJ45 WAN port, four 10100M Auto-Negotiation RJ45 LAN ports, supporting Auto MDIMDIX.
    Provides WPAWPA2, WPA-PSKWPA2-PSK encryption security.
    Shares data and Internet access for users, supporting Dynamic IPStatic IPPPPoEPPTPL2TP Internet access.
    Supports DMZ host, Dynamic DNS, Static Routing.
    Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
    Built-in DHCP server supporting static IP address distributing.
    Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering.
    Connects Internet on demand and disconnects from the Internet when idle for PPPoE.

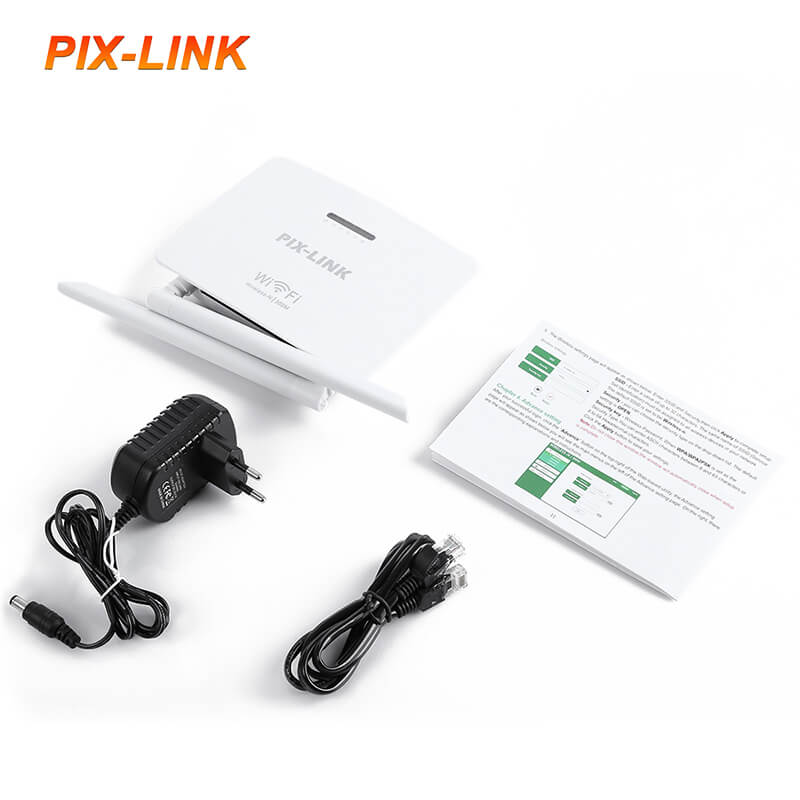

​Package Contents

1 x Wireless-N Router
1 x Power Adapter (EU or US Plug)
1 x Quick Installation Guide
1 x Ethernet Cable

Specifications

HARDWARE FEATURES

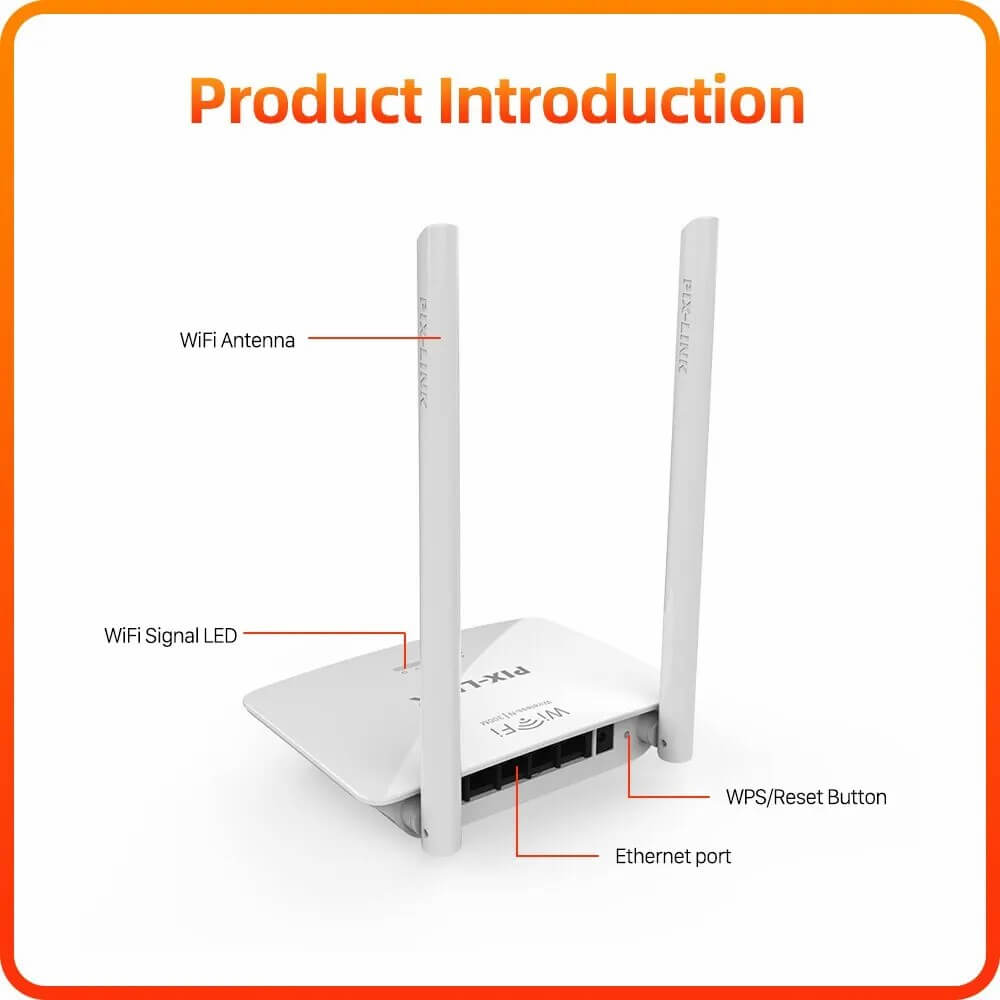

Interface4×10/100Mbps LAN PORTS
1×10/100Mbps WAN PORT
ButtonWPS/Reset Button
Antenna2*5dBi Fixed Omni Directional Antenna
External Power Supply5VDC / 1A
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )154.0 x 108.0 x 30.3 mm

WIRELESS FEATURES

Frequency2.4-2.4835GHz
Signal RateUp to 300Mbps(dynamic)
Reception Sensitivity270M: -70dBm@10% PER
Transmit Power<20dBm
Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of ServiceWMM, Bandwidth Control
WAN TypeDynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCPServer, Client, DHCP Client List
Port ForwardingVirtual Server,Port Triggering, UPnP, DMZ
VPN Pass-ThroughPPTP, L2TP, IPSec (ESP Head)
 Firewall SecurityDoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

OTHERS

 Package Contents1xWireless-N Rotuer 1xPower Adapter 1xEthernet Cable
1xQuick Installation Guide
 EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
