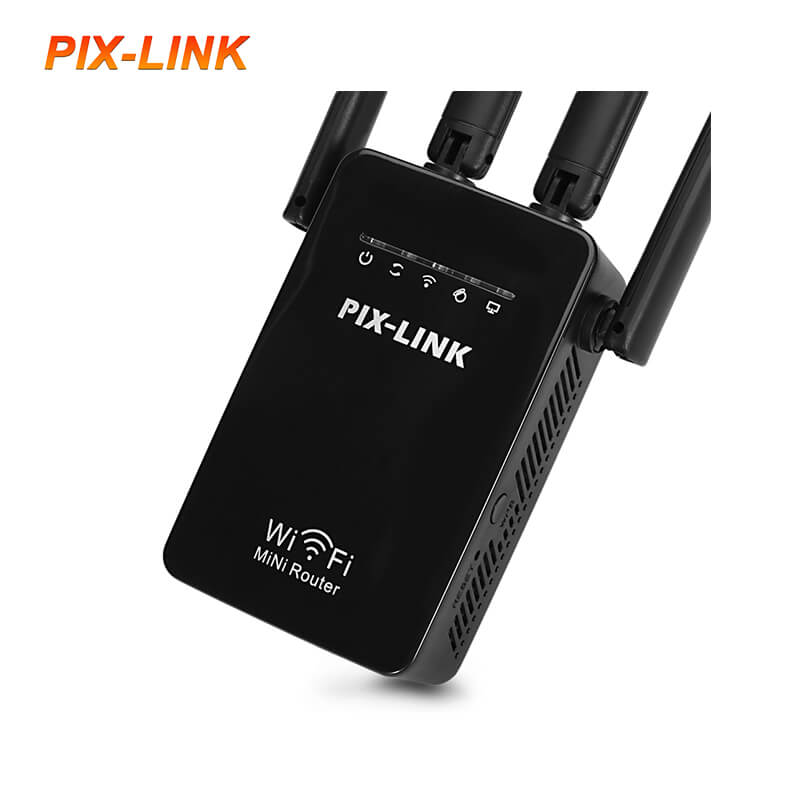

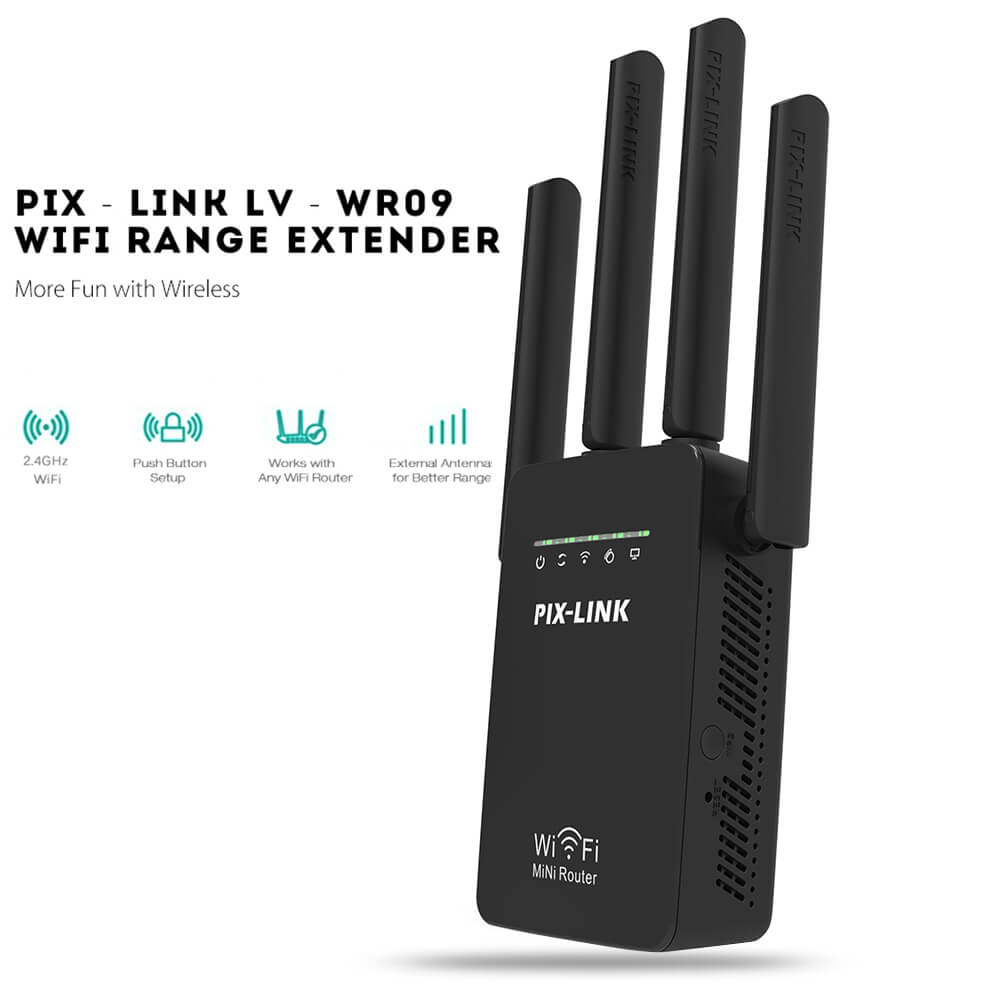

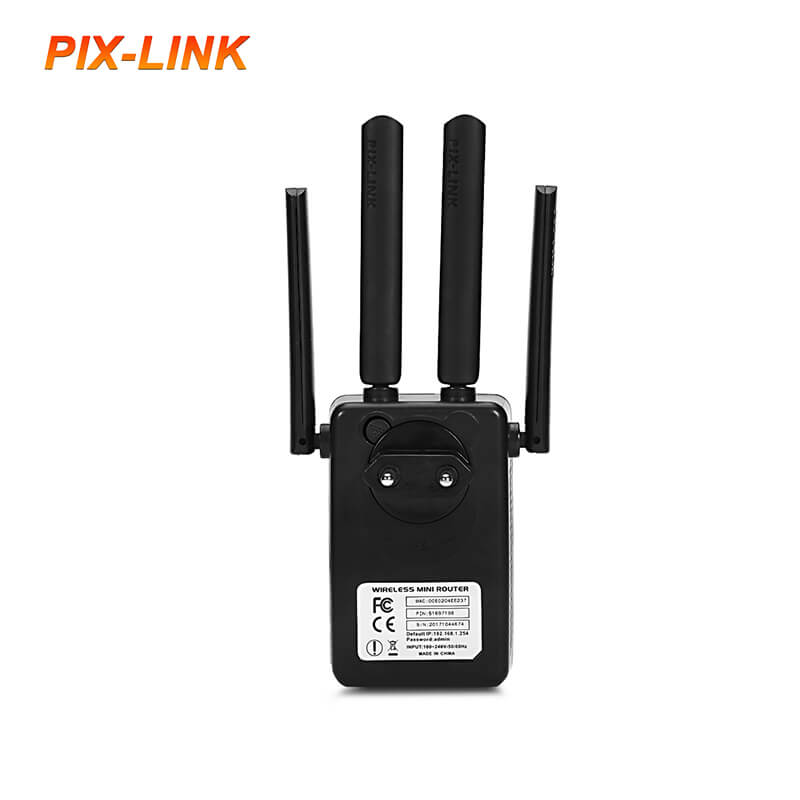

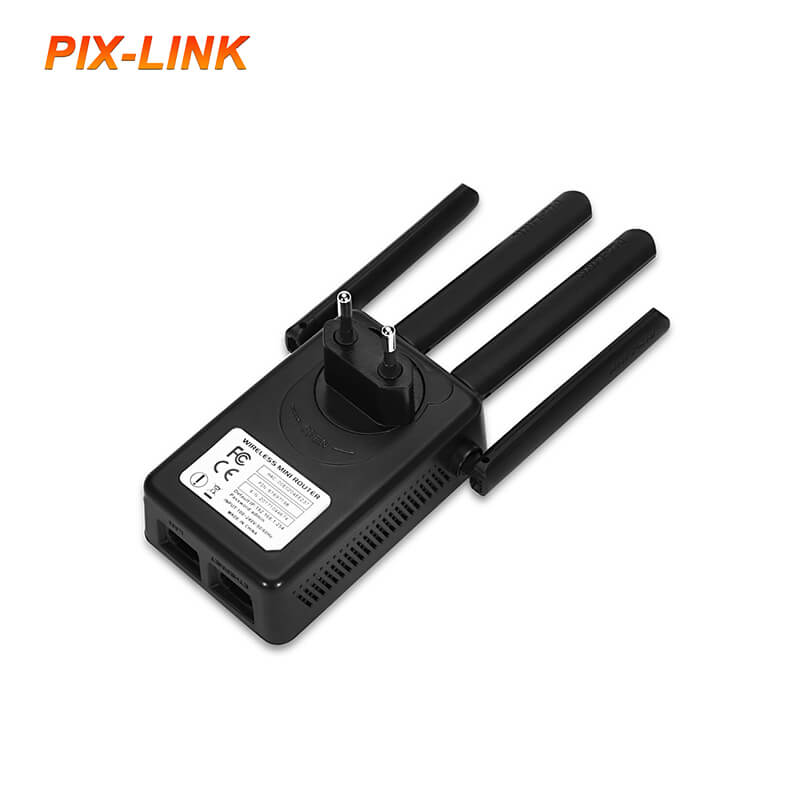

LV-WR09 Black

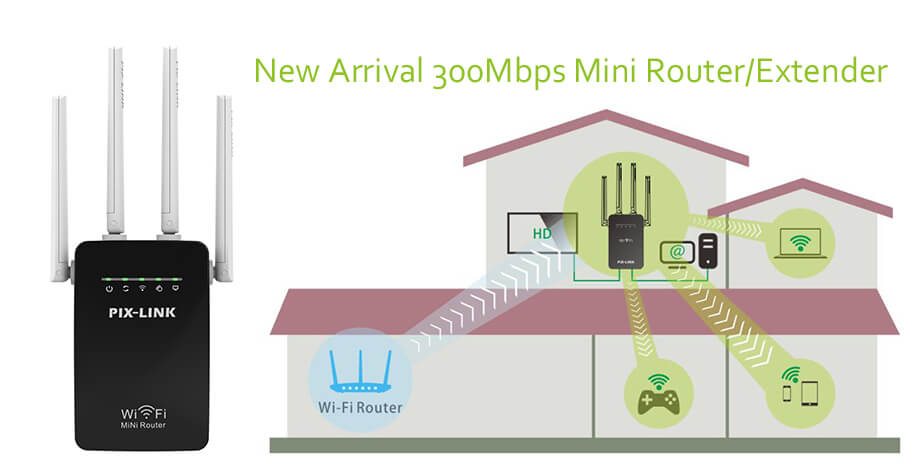

300M Wi-Fi Repeater/Router
- Complies with IEEE 802.11B/G/N standards.

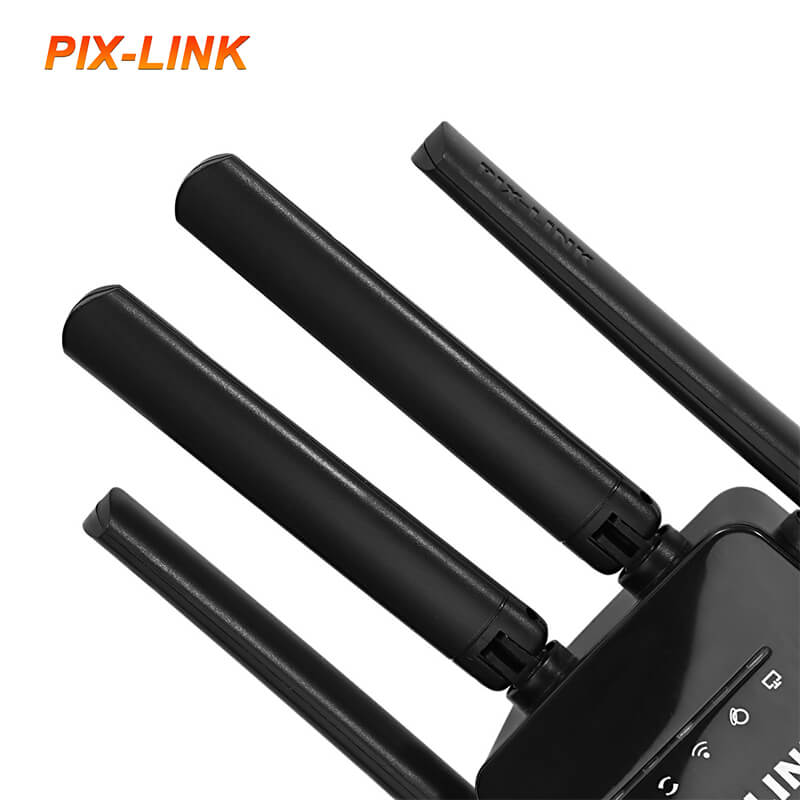

- Four External Antennas.
- Built-in power adapter, no bulky adapter needed.

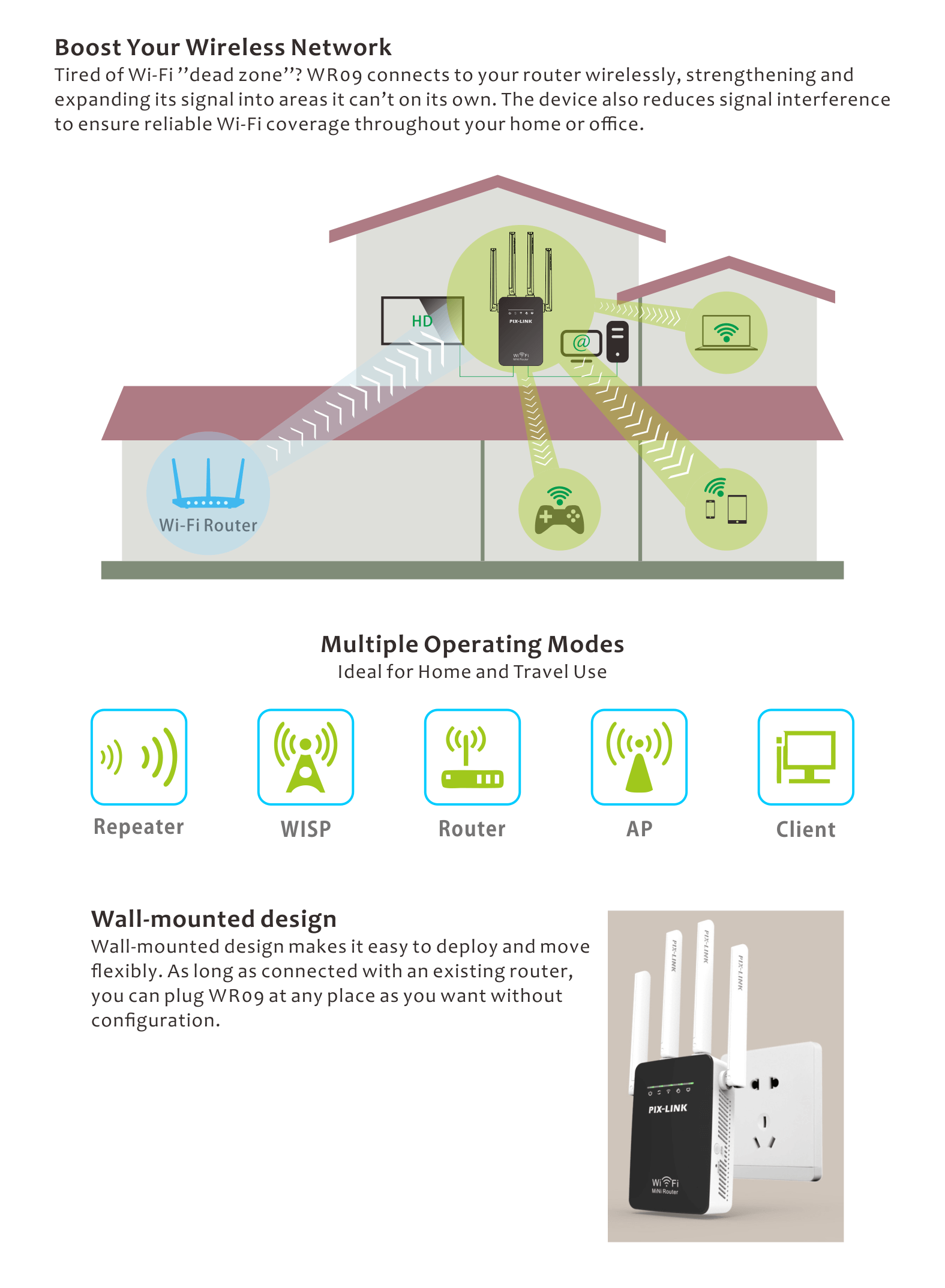

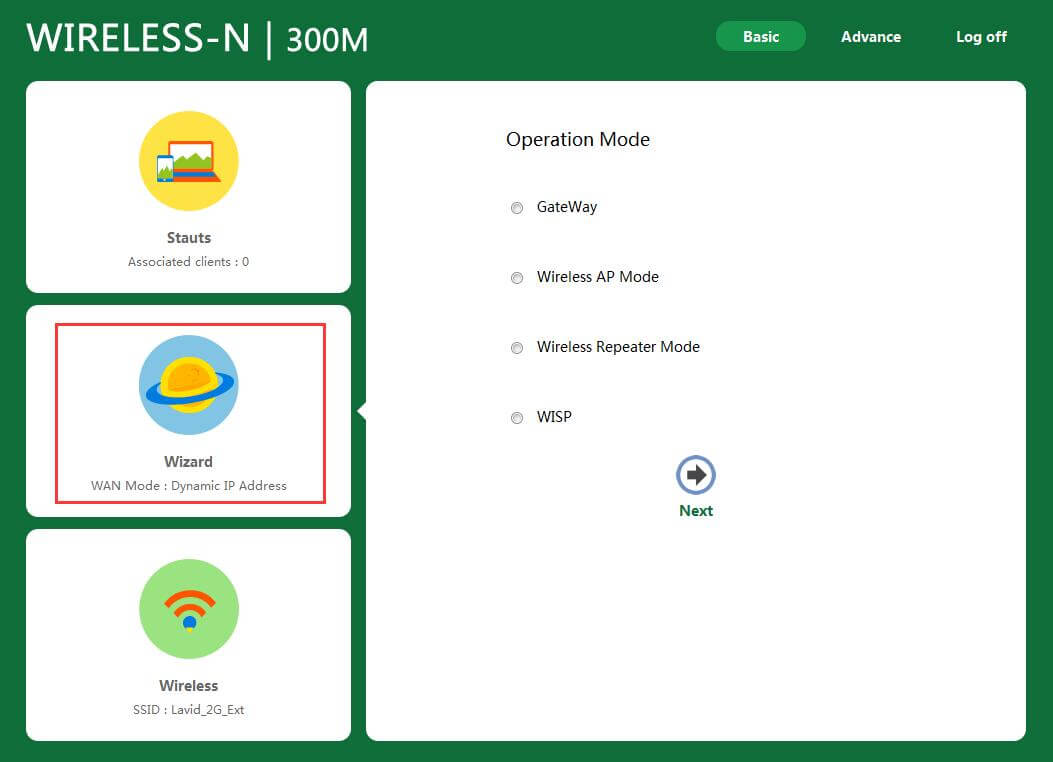

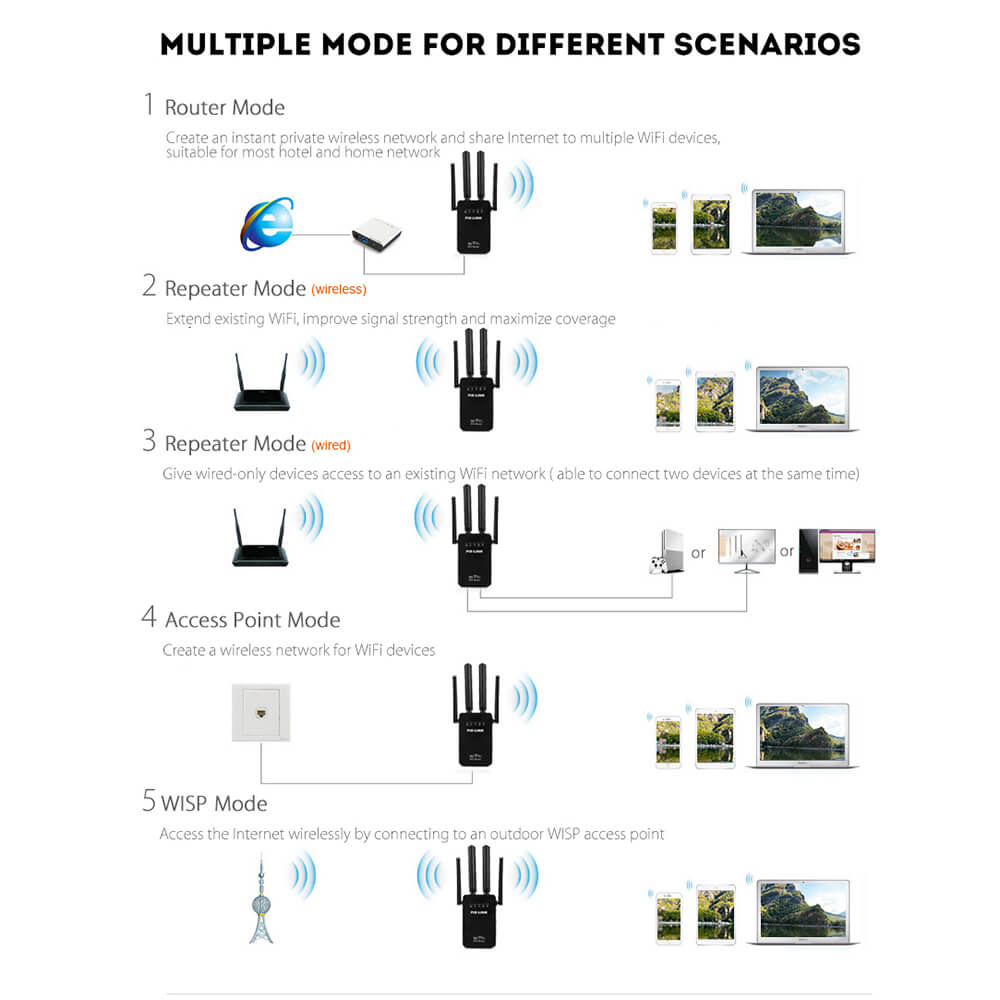

- Supports Router, Repeater, WISP,Client and AP mode.
- Supports WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
LV-WR09 Black
Overview
Specifications
HARDWARE FEATURES
| Plug Type | EU, UK, US |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |

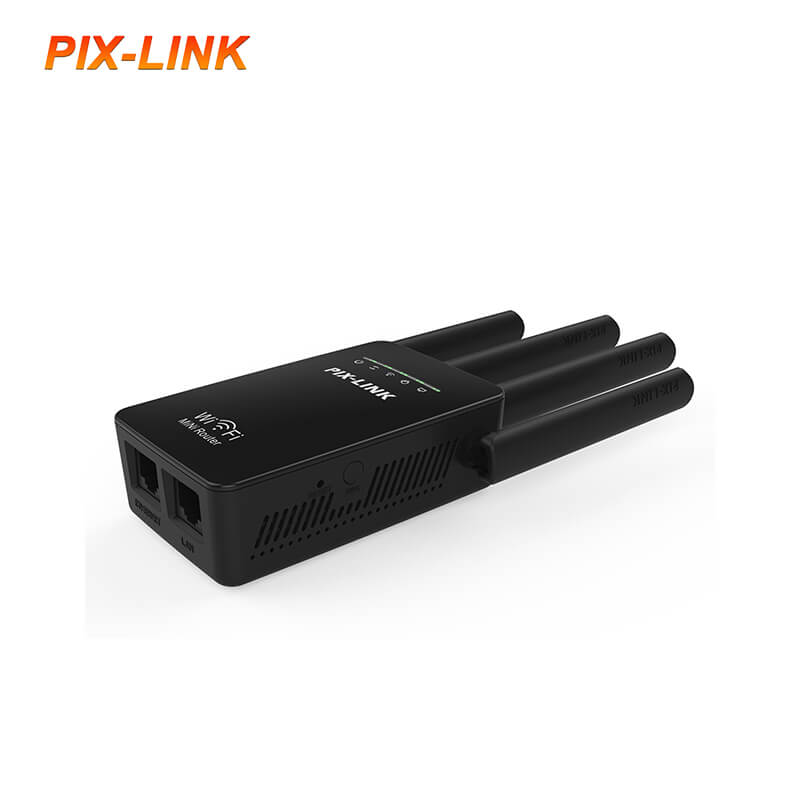

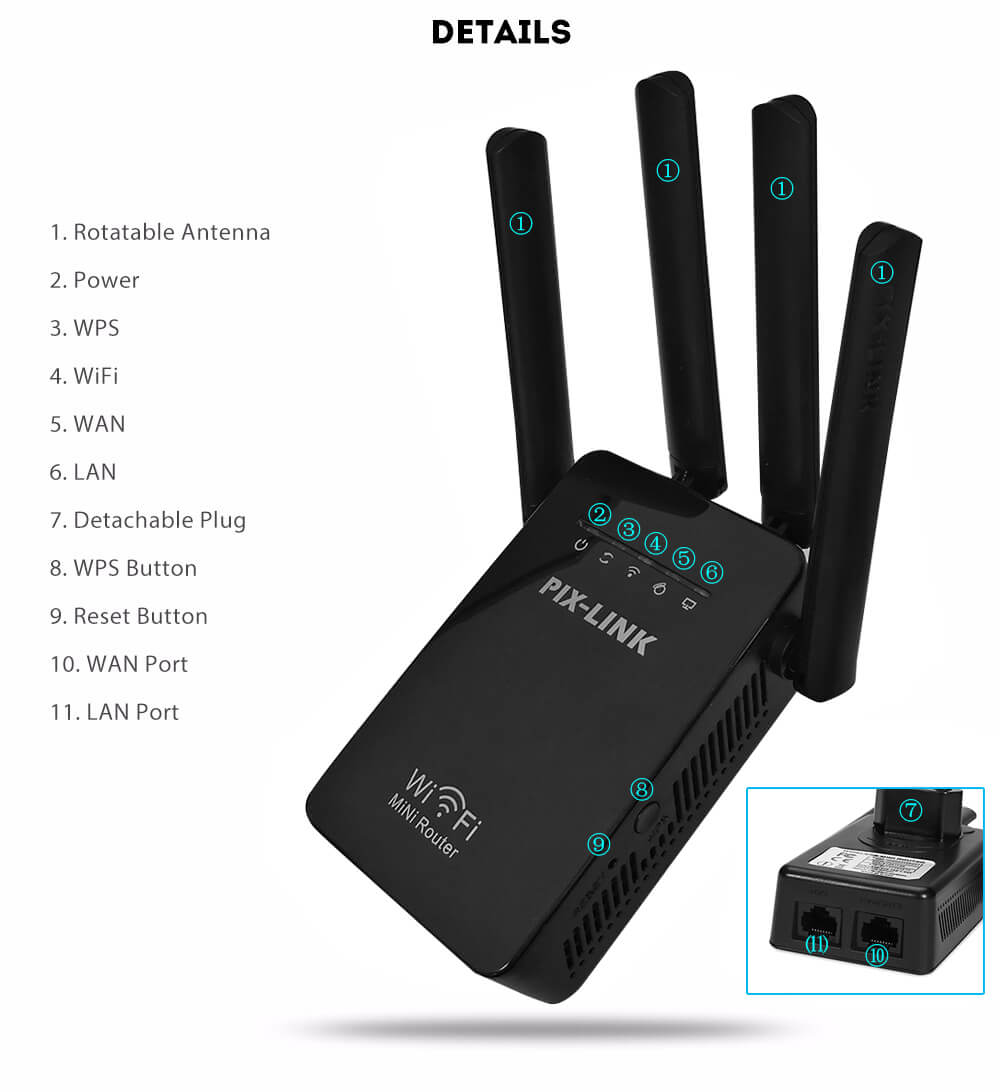

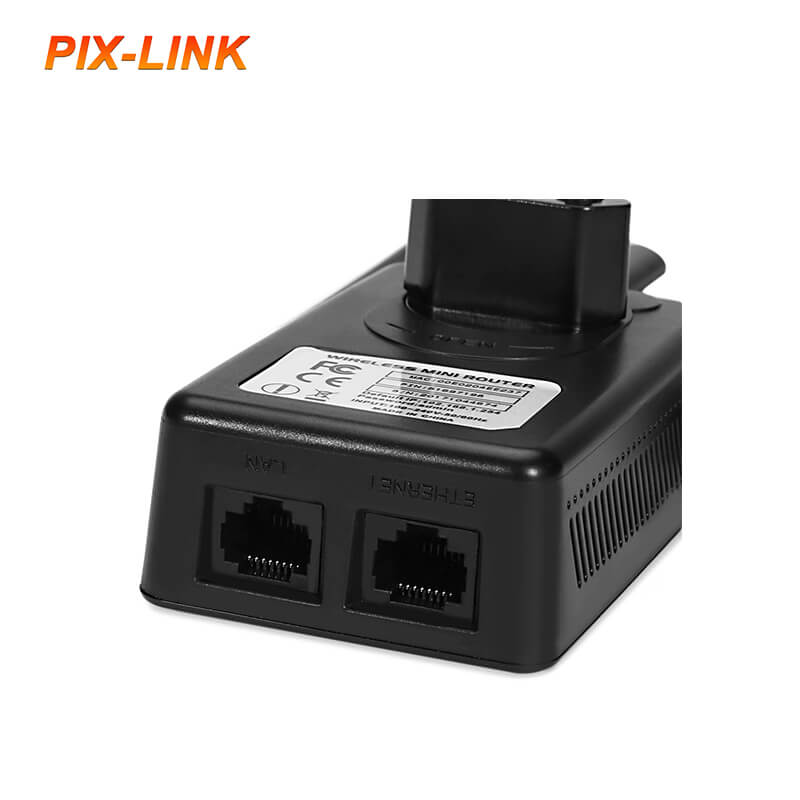

| Interface | 1 * 10/100Mbps LAN Port 1 * 10/100Mbps LAN/WAN Port |
| Button | WPS Button, Reset Button |
| Antenna | 4 * external |
| Dimensions ( W x D x H ) | 95.0 x 61.5 x 35.2mm |
WIRELESS FEATURES
| Frequency | 2.4~2.4835GHz |
| Signal Rate | Up to 300Mbps (dynamic) |
| Reception Sensitivity | 270M: -69dBm@10% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Repeater/WISP/Router/AP |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
OTHERS

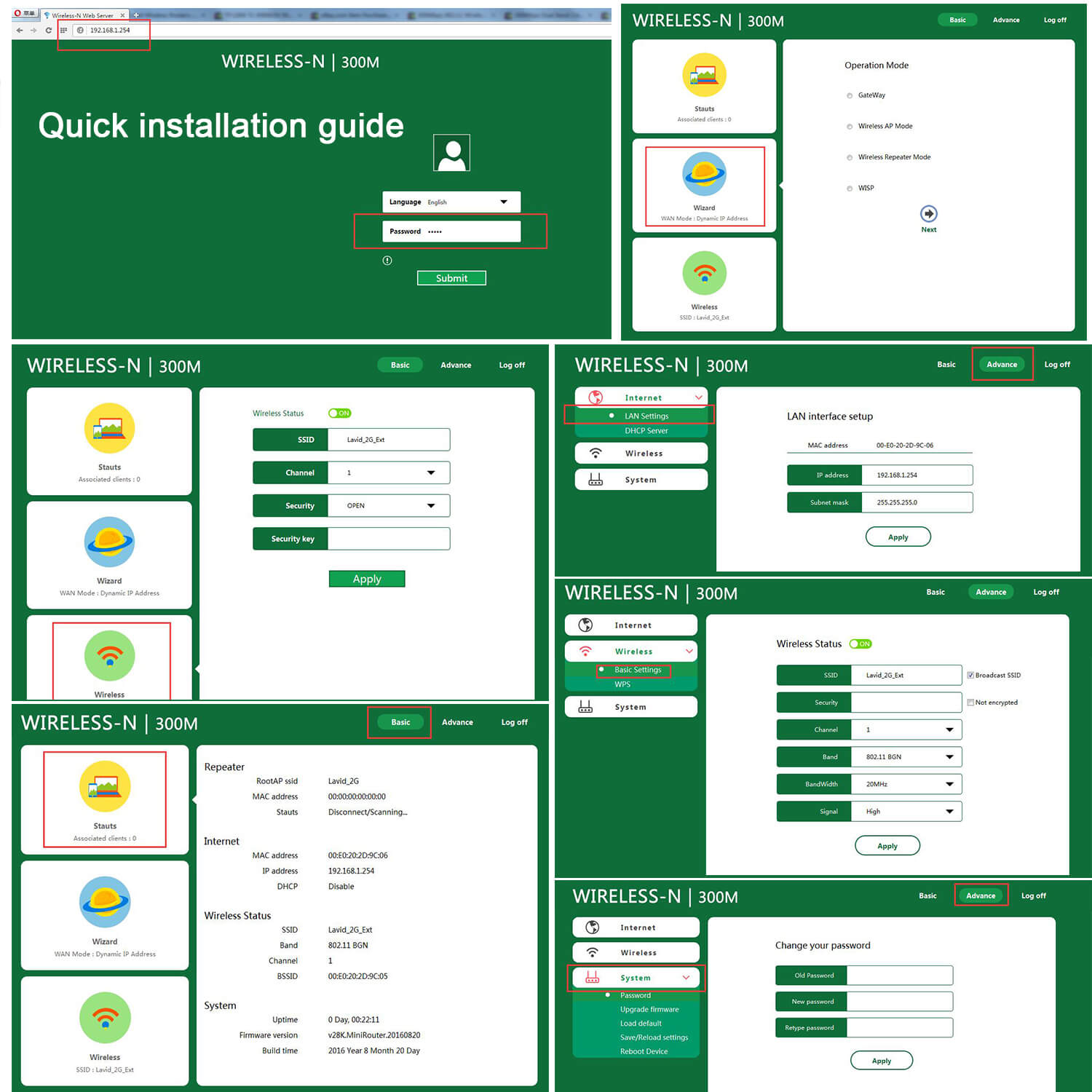

| Package Contents | 1xWireless-N Repeater/Router/AP 1xRJ-45 Ethernet Cable 1xQuick Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
