PIX-LINK 2024 WiFi Extender Signal Booster
300M Internet Repeater with Ethernet Port

  • Complies with IEEE 802.11B/G/N standards.
  • Two External Antennas.
  • Built-in power adapter, no bulky adapter needed.
  • Supports Repeater,Client and AP mode.
  • Supports WPA/WPA2, WPA-PSK/WPA2-PSK encryptions.

Overview Specifications

Overview

Specifications

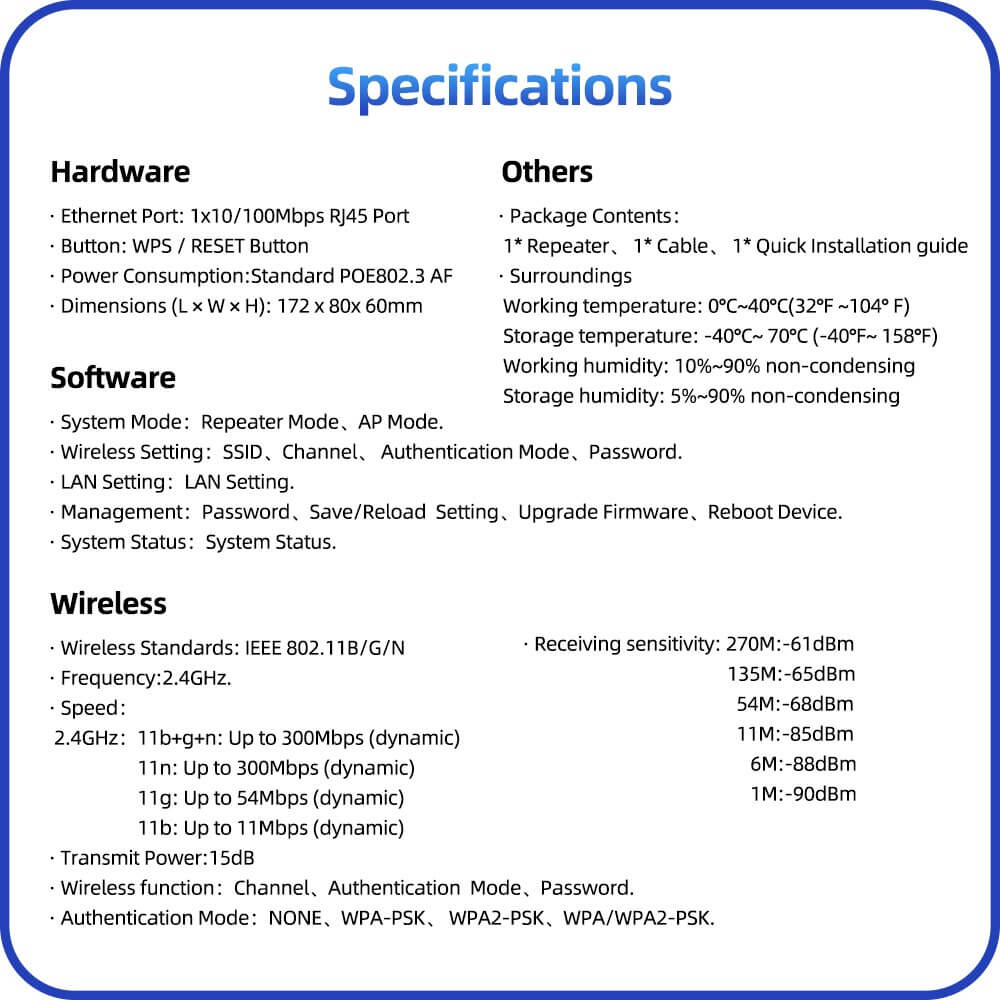

WR45 Specifications
Hardware
Ethernet Port1×10/100Mbps Rj45 Port
ButtonWPS/RESET Button
Power ConsumptionStandard POE802.3 AF

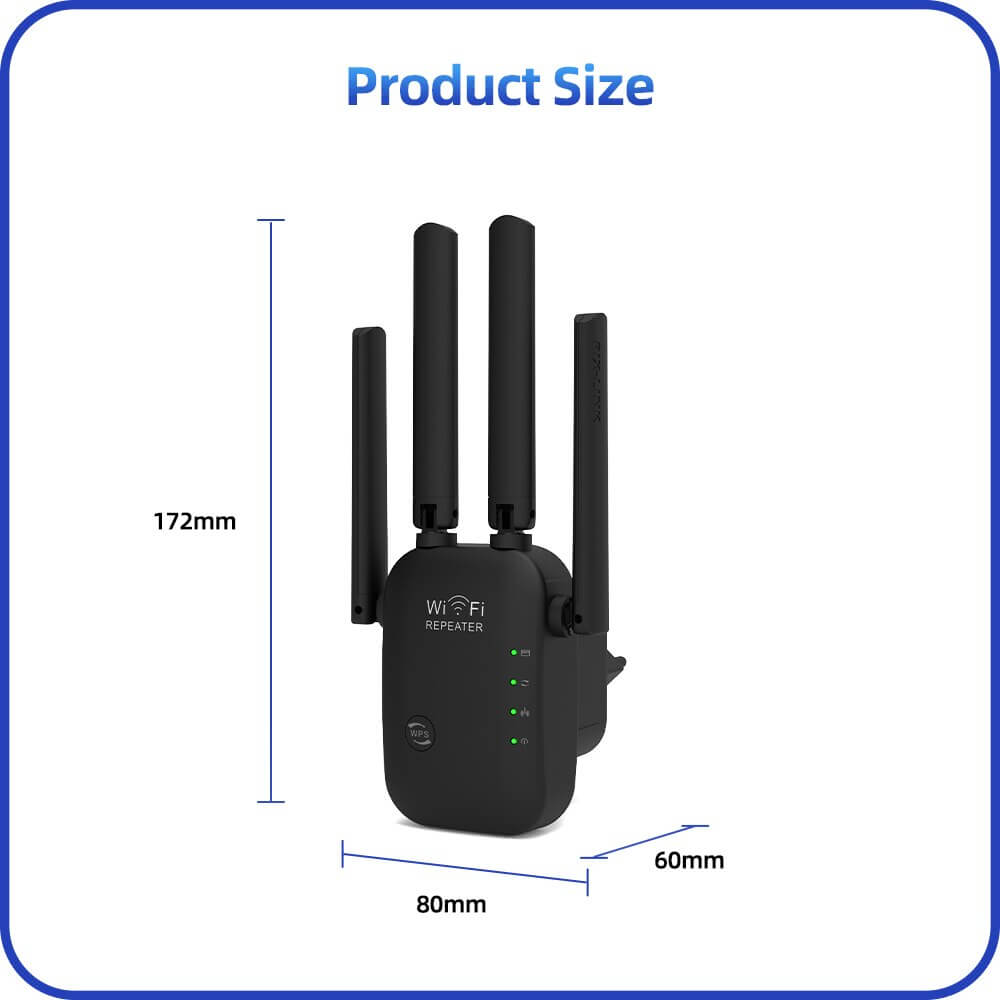

Dimensions(LxWxH)172x80x60mm
Software

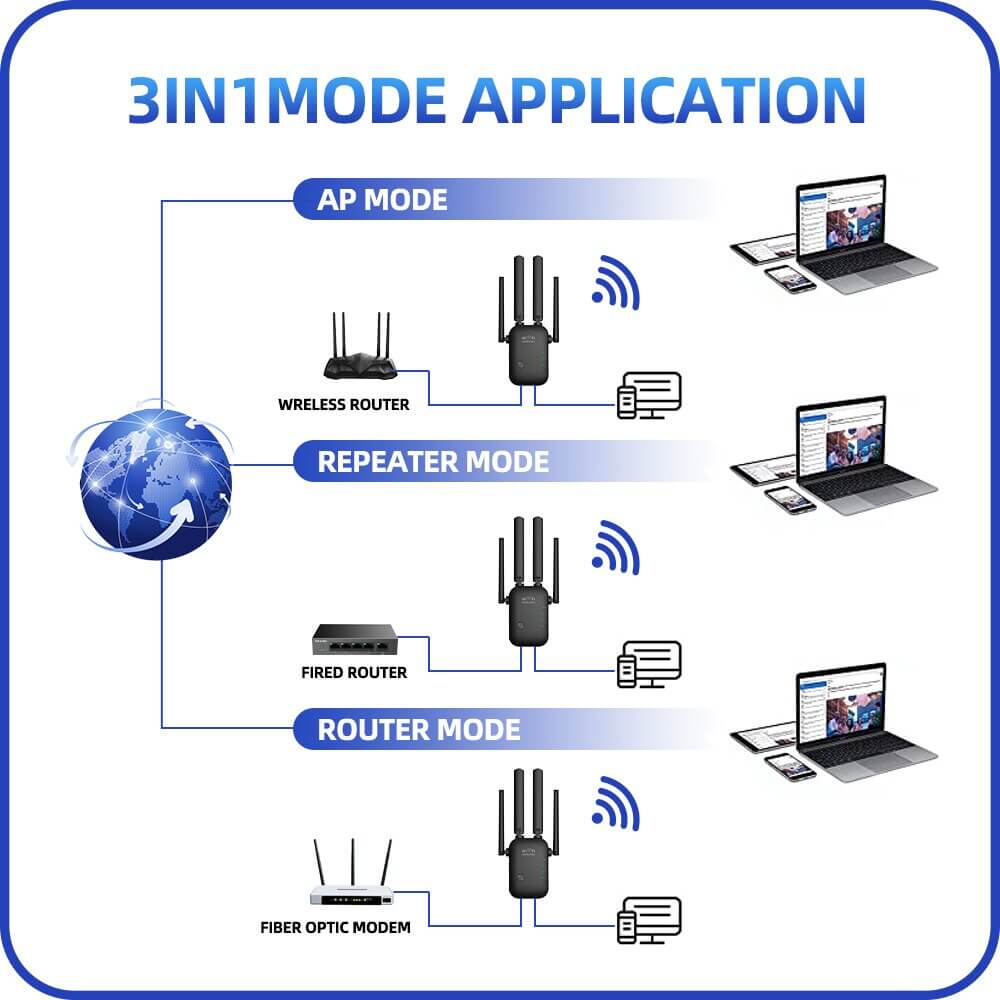

System ModeRepeater Mode、 AP Mode.
Wireless SettingSSlD、Channel、Authentication Mode、Password.
LAN SettingLAN Setting.
ManagementPassword、Save/Reload Setting、Upgrade Firmware、 Reboot Device.
System StatusSystem Status.
Wireless
Wireless StandardsIEEE 802.11B/G/N
Frequency2.4GHz.
Speed
2.4GHz11b+g+n: Up to 300Mbps (dynamic)
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Receiving sensitivity270M:-61dBm
135M:-65dBm
54M:-68dBm
11M:-85dBm
6M:-88dBm
1M:-90dBm
Transmit Power15dB
Wireless functionChannel、Authentication Mode、Password
Authentication ModeNONE、WPA-PSK、WPA2-PSK、WPA/WPA2-PSK.
Others
Package Contents1* Repeater、 1* Cable、1* Quick Installation guide
Surroundings
Working temperature0°C~40°C(32°F ~104° F)
Storage temperature40°℃~ 70°C(-40°F~158°F)
Working humidity10%~90% non-condensing
Storage humidity5%~90% non-condensing
