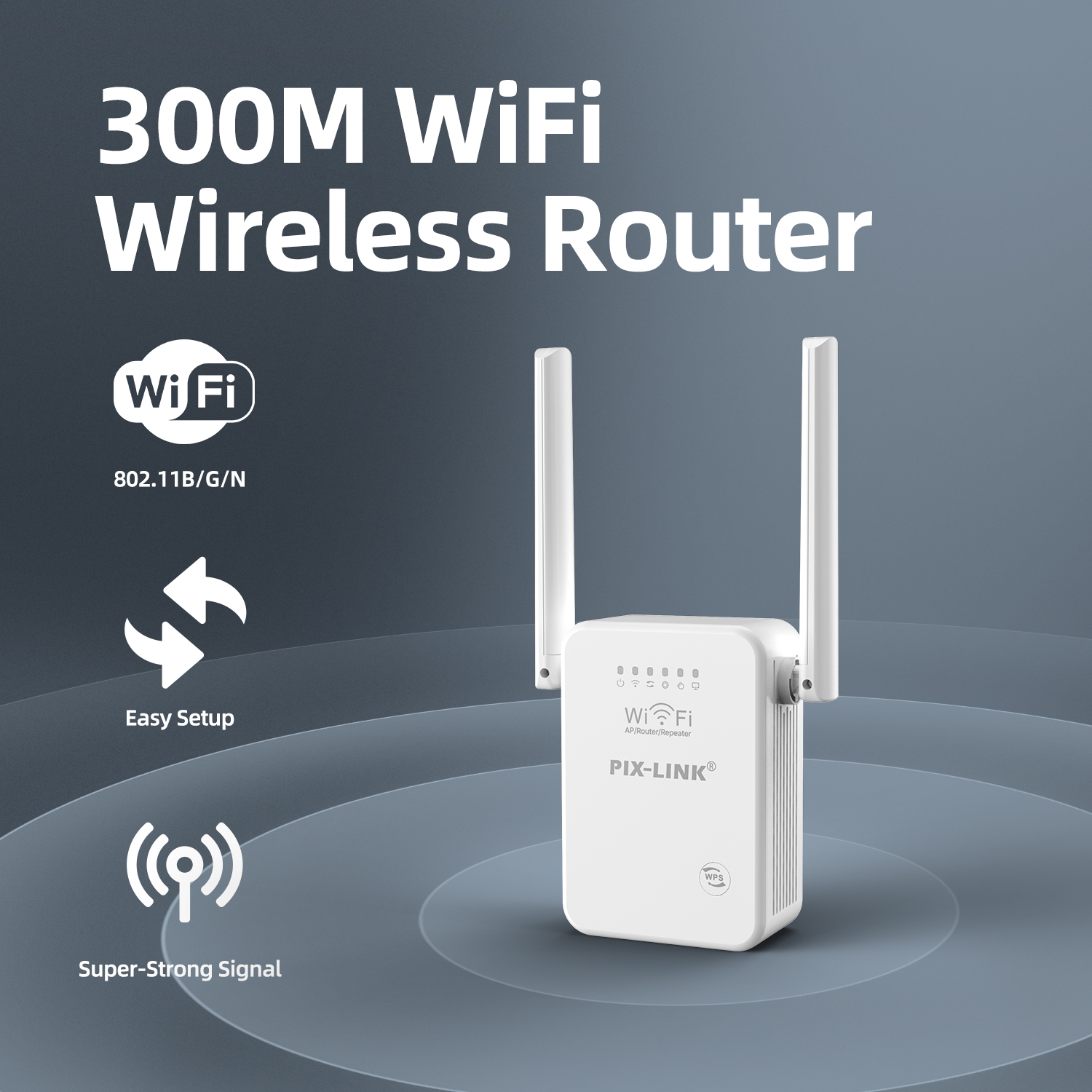

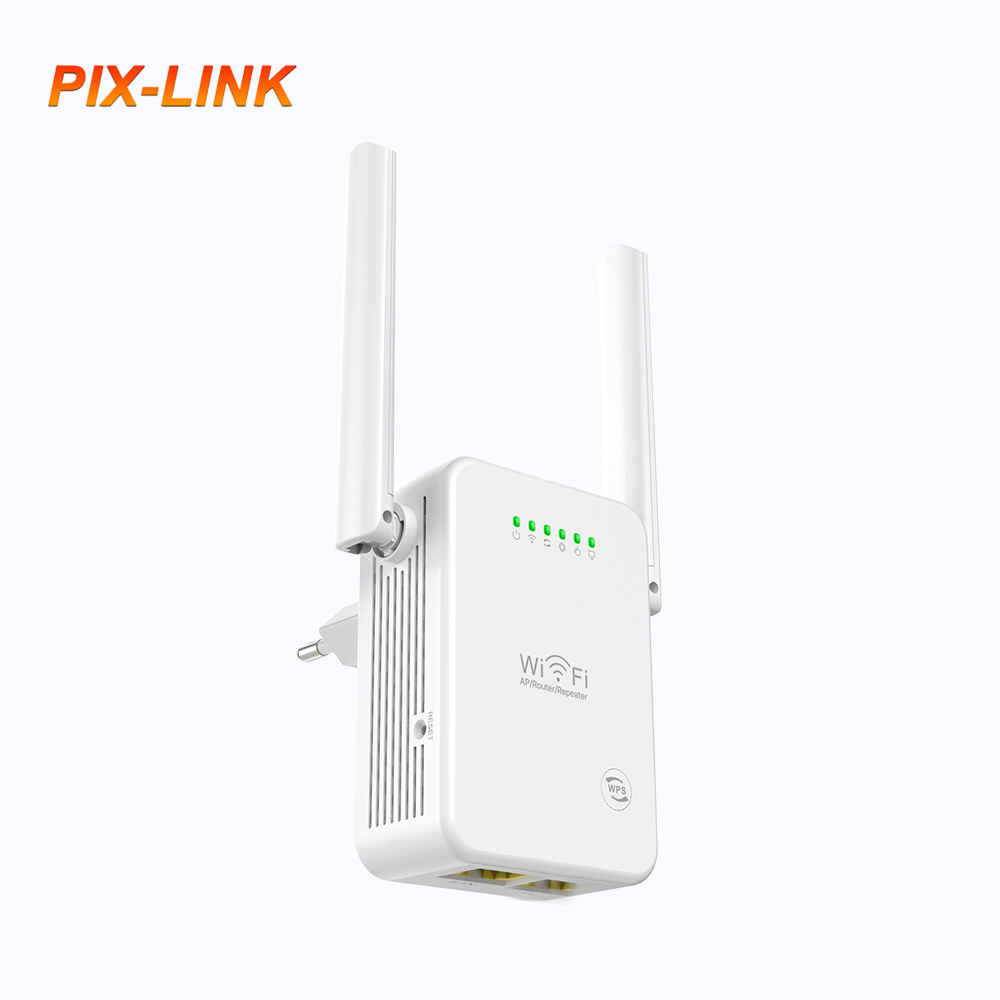

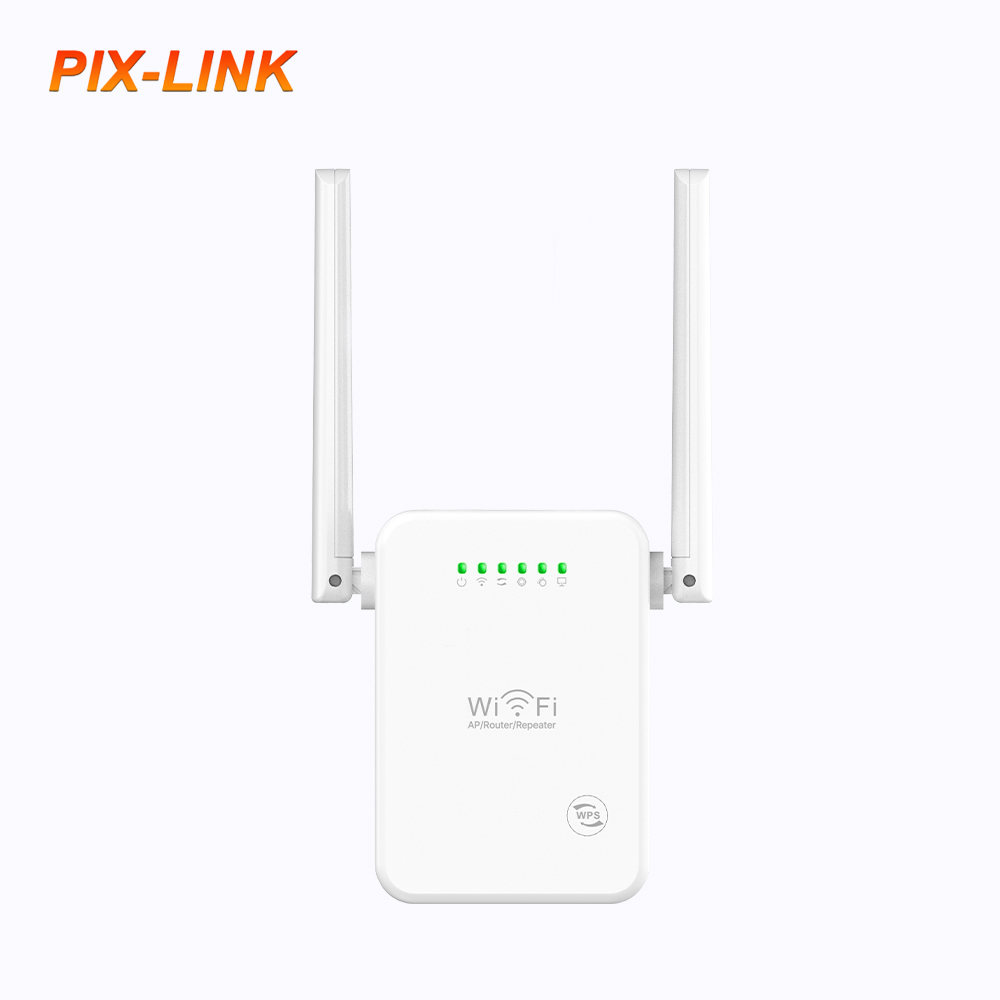

PIX-LINK 300Mbps WiFi Repeater 360° Full Coverage Long Range Wifi Signal Amplifier
N300 Wi-Fi Repeater
Chip: QCA9535
2*100Mbps RJ45
2*Antenna
MODE:AP/REPEATER/ROUTER
Overview
Specifications
Standard
IEEE 802.11a/b/g/n
Speed
IEEE 802.11n: Up to 300Mbps
IEEE 802.11g: Up to 54Mbps
IEEE 802.11b: Up to 11Mbps
Frequency Band
2.4GHz
Wireless Security
WPA-PSK/ WPA2-PSK encryption
Antennas
2 x 3dBi Omni Directional Antennas
Mode
Router/Repeater/WISP/AP/Clinet

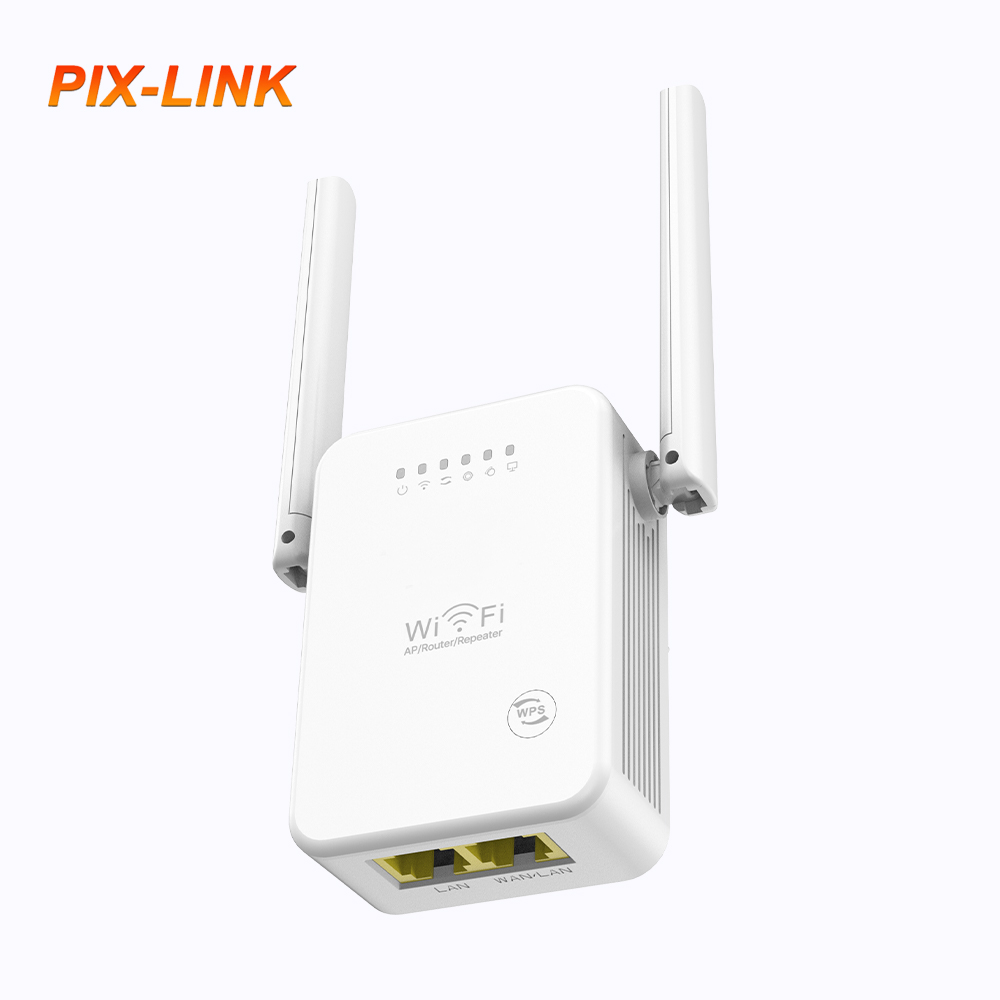

Ports
1 x 10/100Mbps LAN
1 x 10/100Mbps WAN/LAN
Buttons
1 x Reset button
1 x WPS button
LED
1 x Power
1 x WLAN
1 x WPS
1 x Signal strength
1 x WAN/LAN
1 x LAN
Power Consumption
5W MAX
Rated Voltage / Frequency
input:100-240 VAC. 50/60Hz
In the Box
1 x Wi-Fi AP/Router/Range Repeater
1 x Quick Guide
